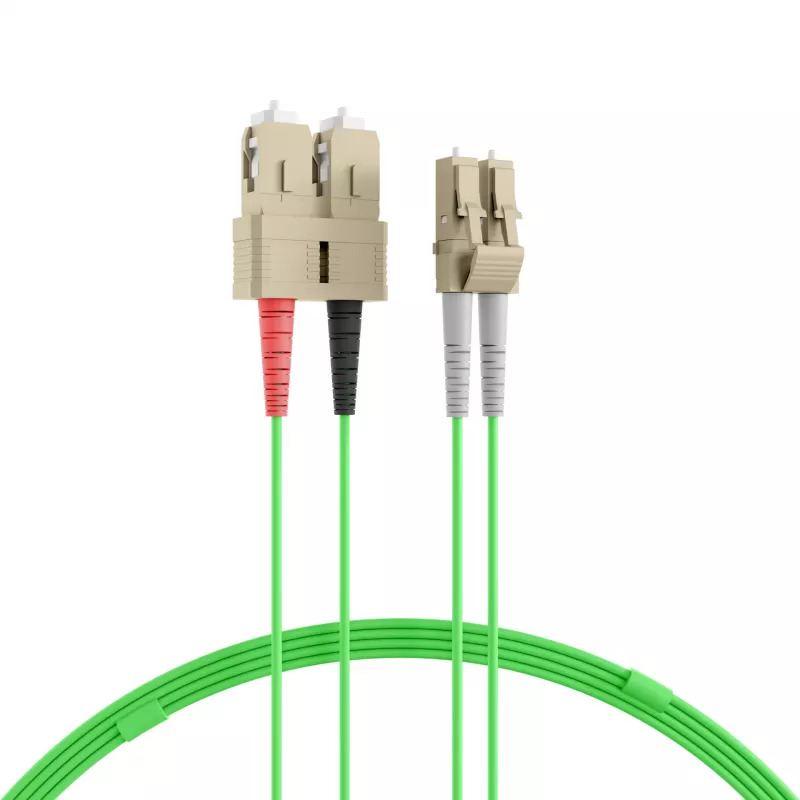

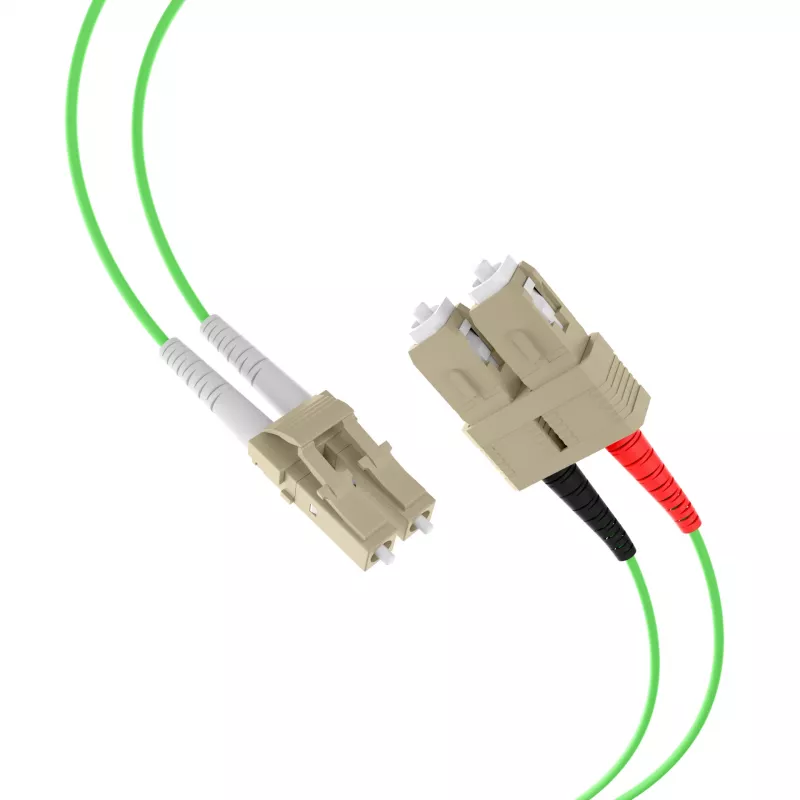

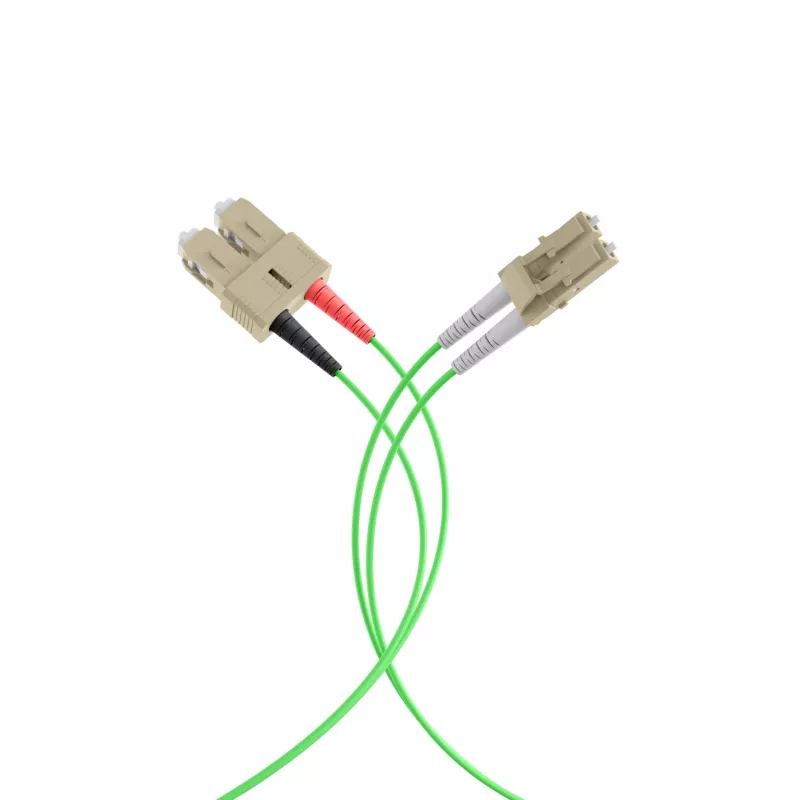

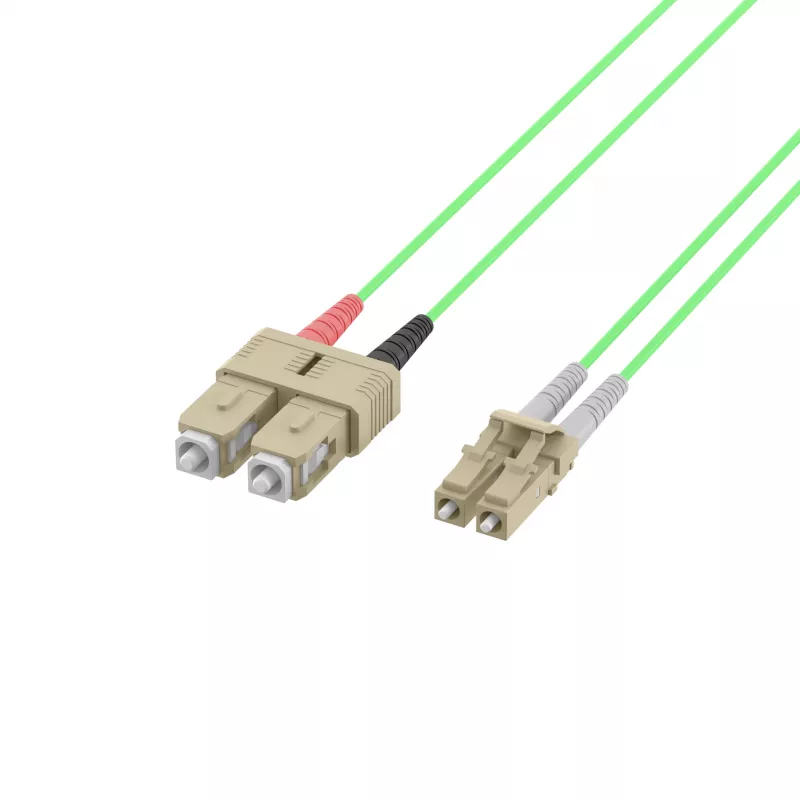

EFB Elektronik IPL-DR-LCUSCU-5-0300 Cable de fibra óptica OM5 LC-SC de 3 m LSZH verde lima

The EFB Elektronik IPL-DR-LCUSCU-5-0300 is a high-performance OM5 laser-optimized multimode fiber optic patch cable, designed for demanding data center and enterprise network applications. With LC to SC connectors and a 3-meter length, this duplex cable delivers reliable, high-bandwidth connectivity for 40G, 100G, and emerging 200G/400G Ethernet standards.

Advantages

OM5 fiber supports multiple wavelengths (850 nm and 953 nm) for short wavelength division multiplexing (SWDM), enabling higher data rates over existing multimode infrastructure. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, reducing toxic fumes and smoke in case of fire. Ceramic ferrules provide low insertion loss (≤0.3 dB) and high return loss (≥30 dB) for optimal signal integrity.

Suitable for

• Data centers and server rooms
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• FTTx and high-speed backbone connections
• SWDM and parallel optics applications

Key specifications

• Fiber type: OM5 (50/125 µm) multimode
• Connectors: LC (male) to SC (male), duplex
• Length: 3 meters
• Jacket: LSZH (I-V(ZN) H), lime green
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Operating wavelengths: 850 nm, 953 nm
• Bandwidth: 4700 MHz·km @850 nm, 2470 MHz·km @953 nm
• Ferrule: Ceramic
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to maintain bend radius and avoid signal degradation. This cable is ideal for upgrading existing OM3/OM4 networks to support higher speeds without replacing the entire cabling infrastructure.
