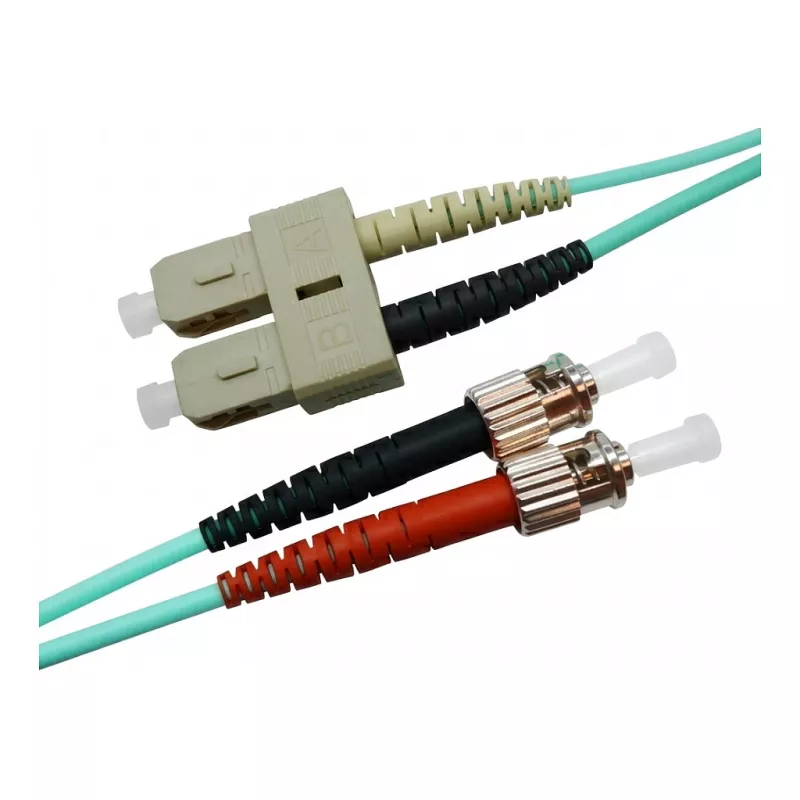

EFB Elektronik latiguillo dúplex ECOFIBER SC-ST OM3 0,5m LSZH 3mm aqua

The EFB Elektronik ECOFIBER Duplex Patch Cable SC-ST OM3 0.5m LSZH 3mm Aqua is a high-performance fiber optic jumper designed for reliable data transmission in demanding network environments. Manufactured by EFB Elektronik, this cable meets OM3 standards, ensuring optimized performance for multimode applications.

Advantages

This patch cable offers low insertion loss and high return loss, minimizing signal degradation and ensuring stable connections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The aqua-colored jacket allows for easy identification of OM3 fiber.

Suitable for

• High-speed data networks
• Gigabit Ethernet and 10 Gigabit Ethernet
• Fibre Channel
• Data centers and server rooms
• Telecommunications infrastructure

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Grade: OM3
• Core/Cladding Diameter: 50/125 µm
• Connector A: SC
• Connector B: ST
• Cable Configuration: Duplex
• Jacket Material: LSZH
• Jacket Color: Aqua
• Cable Length: 0.5 m
• Cable Diameter (Individual Strand): 3.0 mm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Attenuation at 850nm (Max): 2.8 dB/km
• Attenuation at 1300nm (Max): 0.8 dB/km
• Bandwidth at 850nm (Min): 1500 MHz·km
• Bandwidth at 1300nm (Min): 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Standards Compliance: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for short-distance connections within racks or between patch panels.
