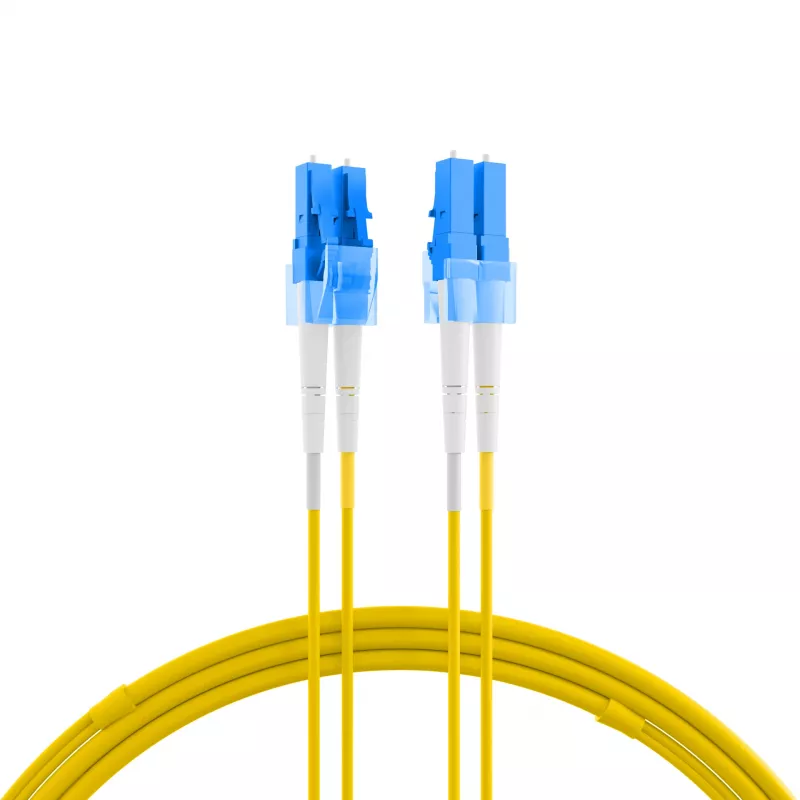

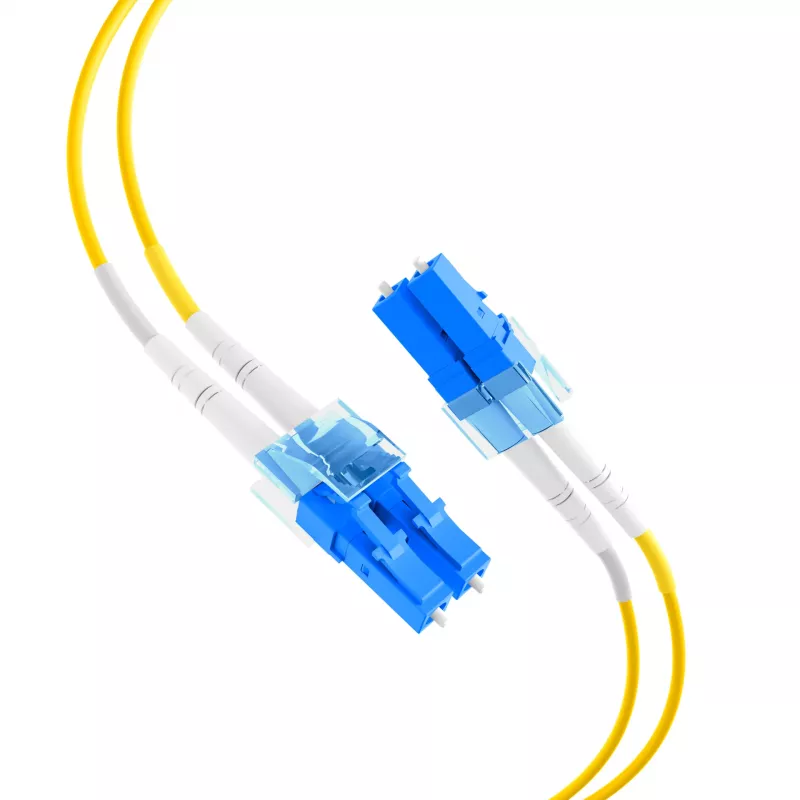

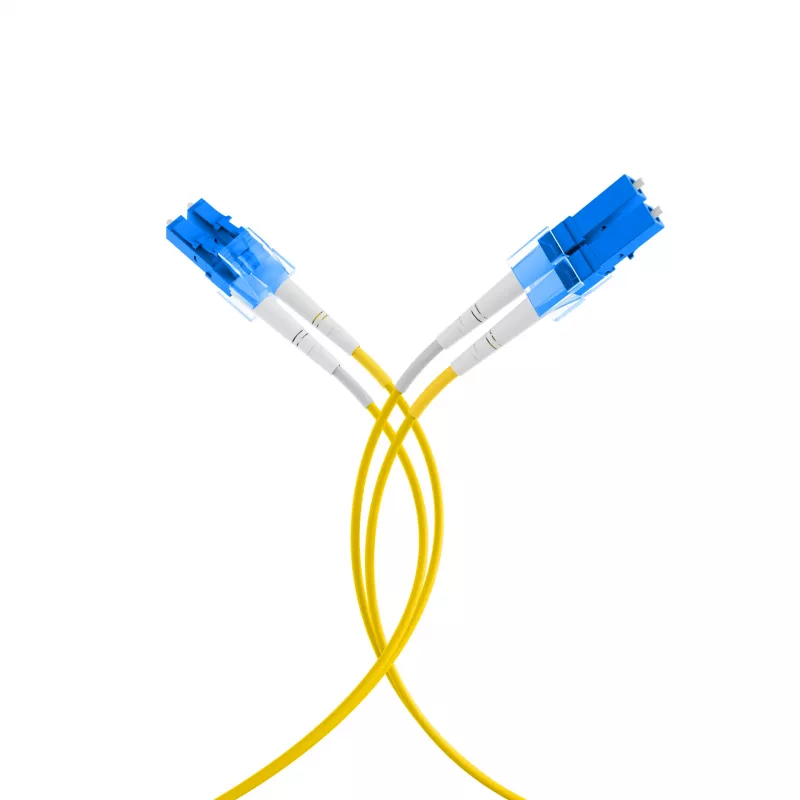

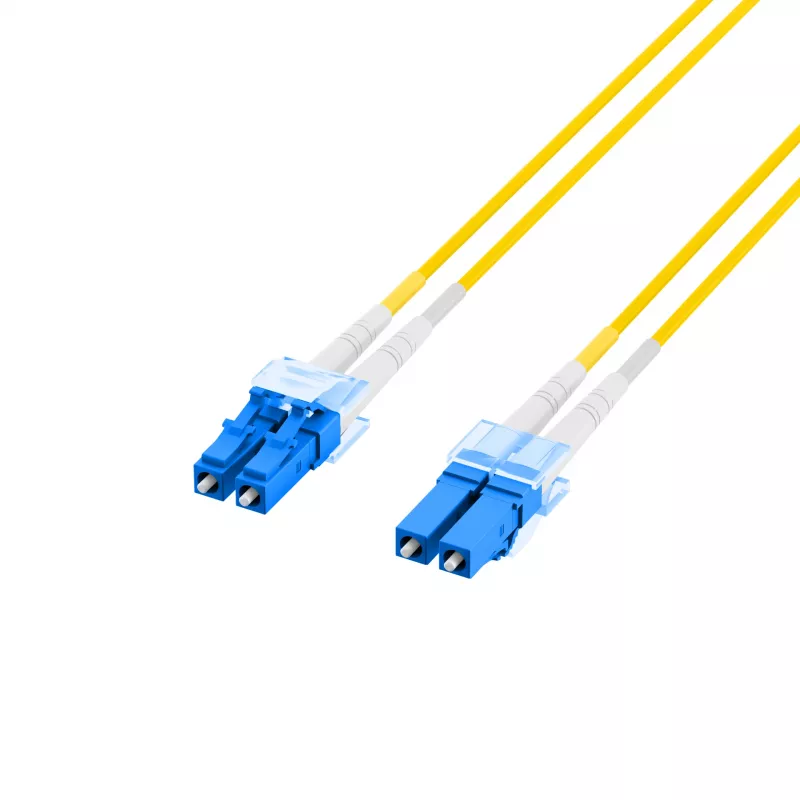

EFB Elektronik Latiguillo dúplex LC-LC 9/125µm OS2 LSZH amarillo 2,0mm 1,5m - Vídeo/Analógico - Fibra monomodo

The EFB Elektronik Duplex Jumper LC-LC is a high-quality fiber optic patch cable designed for single-mode applications. With a length of 1.5 meters, it features duplex LC connectors on both ends, a 9/125µm core/cladding, OS2 grade, and a yellow LSZH (Low Smoke Zero Halogen) jacket with a 2.0mm diameter per fiber. This cable is ideal for video/analog transmission and data networking, supporting 10/40/100 Gigabit Ethernet.

Advantages

Low insertion loss (<0.3 dB) and high return loss (>50 dB UPC) ensure reliable signal transmission. The LSZH jacket provides safety in confined spaces by emitting low smoke and no halogen in case of fire. The duplex design allows simultaneous bidirectional communication.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Video surveillance and analog transmission systems
• Fiber-to-the-home (FTTH) installations

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode (OS2)
• Core/Cladding: 9/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 1.5 m
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Insertion Loss: <0.3 dB
• Return Loss: >50 dB (UPC)
• Operating Temperature: -20°C to 70°C
• Standards: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC interfaces and is suitable for both indoor and protected outdoor environments.
