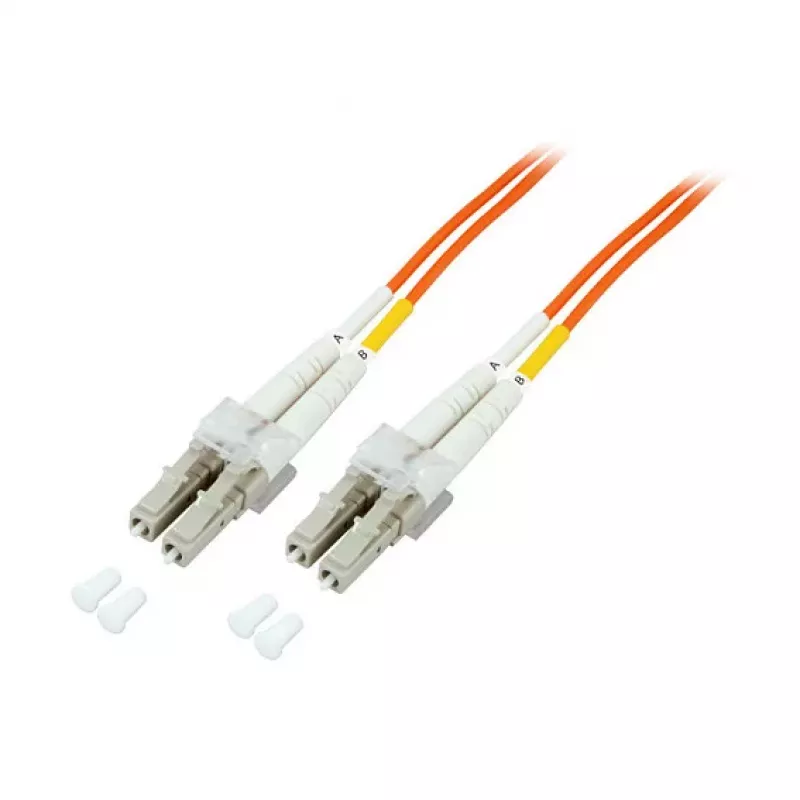

EFB-Elektronik Latiguillo dúplex LC-LC OM1 62.5/125µm 1m LSZH naranja 2,0mm

The EFB-Elektronik Duplex Jumper LC-LC is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM1 performance and a length of 1 meter, this cable is ideal for short-distance connections in data centers, telecommunications rooms, and local area networks.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in public and commercial buildings. The orange color allows for easy identification and organization of cabling.

Suitable for

• Connecting network devices such as switches, routers, and servers
• Fiber optic patching in data centers and server rooms
• Multimode fiber optic networks requiring OM1 performance
• Applications where LSZH jacket is required for safety compliance

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Fiber Type: Multimode OM1
• Core/Cladding: 62.5/125 µm
• Connectors: LC to LC, PC polished
• Number of Fibers: 2
• Length: 1 meter
• Cable Diameter: 2.0 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Attenuation at 850nm: ≤ 3.5 dB/km
• Attenuation at 1300nm: ≤ 1.5 dB/km
• Insertion Loss (Max): ≤ 0.3 dB per connector
• Return Loss (Min): ≥ 20 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC fiber optic interfaces. Store in a clean, dry environment when not in use.
