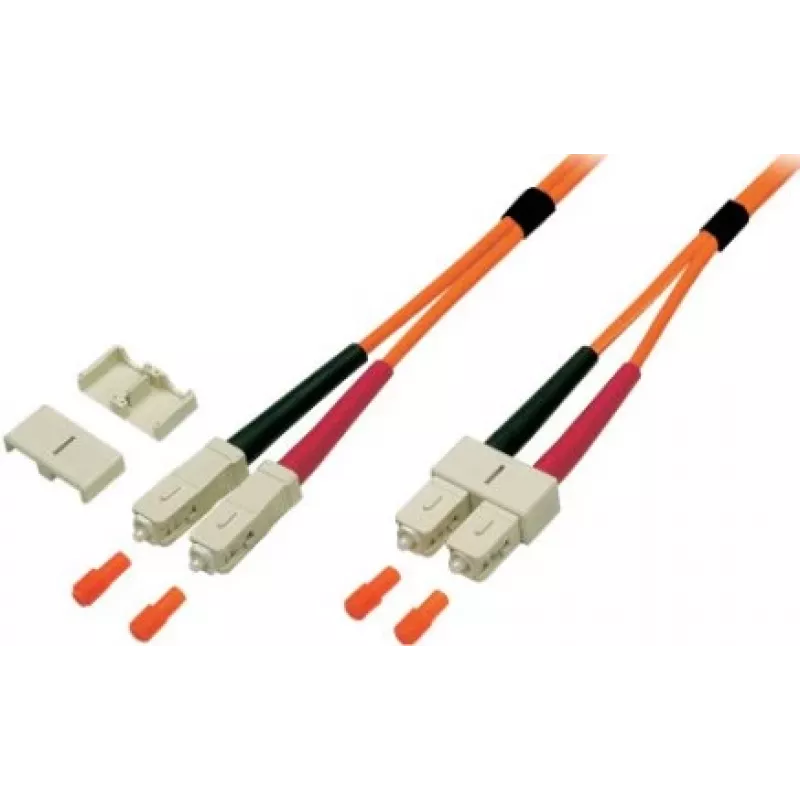

EFB Elektronik Latiguillo Dúplex SC-SC 62,5/125 µm OM1 LSZH Naranja 3,0 mm 10 m

The EFB Elektronik Duplex Jumper SC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in indoor network environments. With a 62.5/125 µm core/cladding diameter and OM1 multimode fiber grade, this cable ensures efficient performance for short to medium distance applications. The duplex configuration with SC connectors on both ends provides a secure and easy-to-use connection. The orange LSZH (Low Smoke Zero Halogen) jacket offers enhanced safety by reducing toxic and corrosive emissions in case of fire, making it ideal for use in public and commercial buildings. Each simplex strand has a 3.0 mm diameter, and the cable length is 10 meters, providing flexibility in network setups.

Advantages

This patch cable offers several benefits: the LSZH jacket ensures compliance with strict fire safety regulations, reducing smoke and halogen emissions. The duplex design allows for simultaneous bidirectional communication, essential for full-duplex network devices. The PC (Physical Contact) polish on the connectors minimizes insertion loss and back reflection, ensuring signal integrity. The cable is compliant with IEC 60793 and TIA/EIA-568-C.3 standards, guaranteeing performance and reliability.

Suitable for

• Connecting fiber optic network devices such as switches, routers, and patch panels in data centers and telecom rooms.
• Indoor installations where fire safety is a priority, such as schools, hospitals, and office buildings.
• Short to medium distance multimode fiber links (up to 10 km at lower speeds).

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Configuration: Duplex
• Connector Type (End A): SC
• Connector Type (End B): SC
• Fiber Mode: Multimode
• Fiber Core/Cladding Diameter: 62.5/125 µm
• Fiber Grade: OM1
• Cable Length: 10 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm (per simplex strand)
• Connector Polish: PC (Physical Contact)
• Application Environment: Indoor
• Polarity: A-B Cross-Over
• Standards Compliance: IEC 60793, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure that the connectors are cleaned before each use. This cable is not suitable for outdoor installations or single-mode applications. Pair with compatible SC multimode transceivers for best results.
