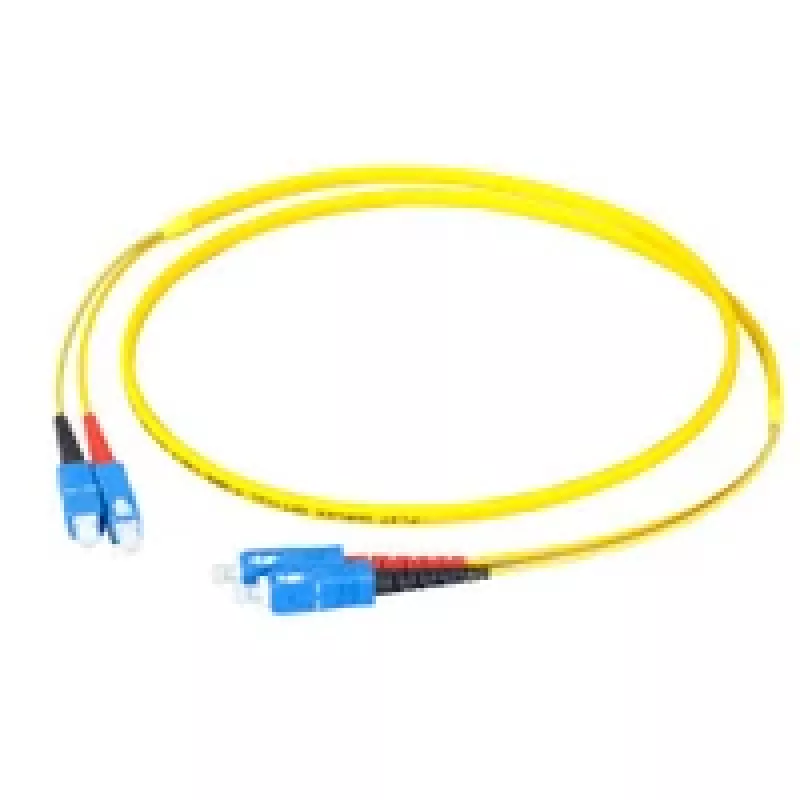

EFB Elektronik latiguillo dúplex SC-SC 9/125 µm OS2 LSZH Yellow Flat Twin 3x5mm 3m

The EFB Elektronik Duplex Jumper SC-SC is a high-quality fiber optic patch cable designed for single-mode applications. With a length of 3 meters and a flat twin construction measuring 3x5mm, this cable ensures reliable and efficient data transmission in OS2 networks. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in confined spaces and public areas.

Advantages

This duplex jumper offers low insertion loss and high return loss, ensuring minimal signal degradation and excellent performance. The yellow jacket color allows for easy identification of single-mode cables, simplifying network management and maintenance.

Suitable for

• Data center cabling
• Telecommunications networks
• FTTx (Fiber to the x) installations
• LAN and WAN connections
• Any environment requiring high-speed, reliable fiber optic connections

Key specifications

• Connector type: SC to SC, duplex
• Fiber type: Single-mode (9/125 µm)
• Fiber class: OS2 (ITU-T G.657.A1/A2)
• Connector polish: UPC
• Cable length: 3 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable construction: Flat Twin, 3 x 5 mm
• Number of fibers: 2
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 50 dB
• Attenuation (1310 nm): ≤ 0.35 dB/km
• Attenuation (1550 nm): ≤ 0.25 dB/km
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that connectors are clean and properly mated. Use appropriate cable management to avoid sharp bends and maintain signal integrity.
