MPO-PLUS (F) a LC cable troncal OM4 12 fibras Type-B LSZH violeta erika 10m MPOF12LCOM4-10

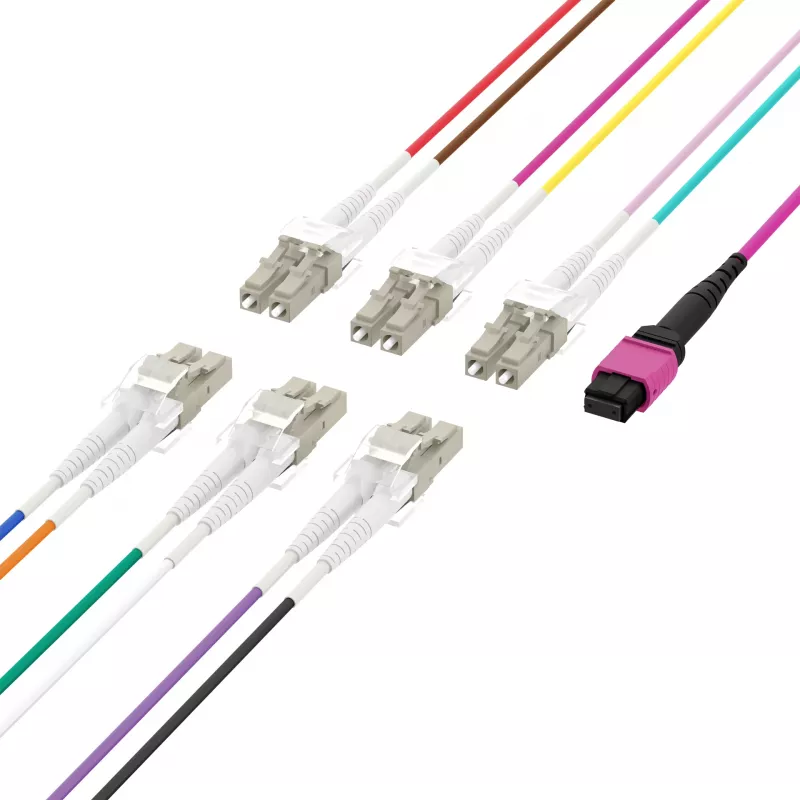

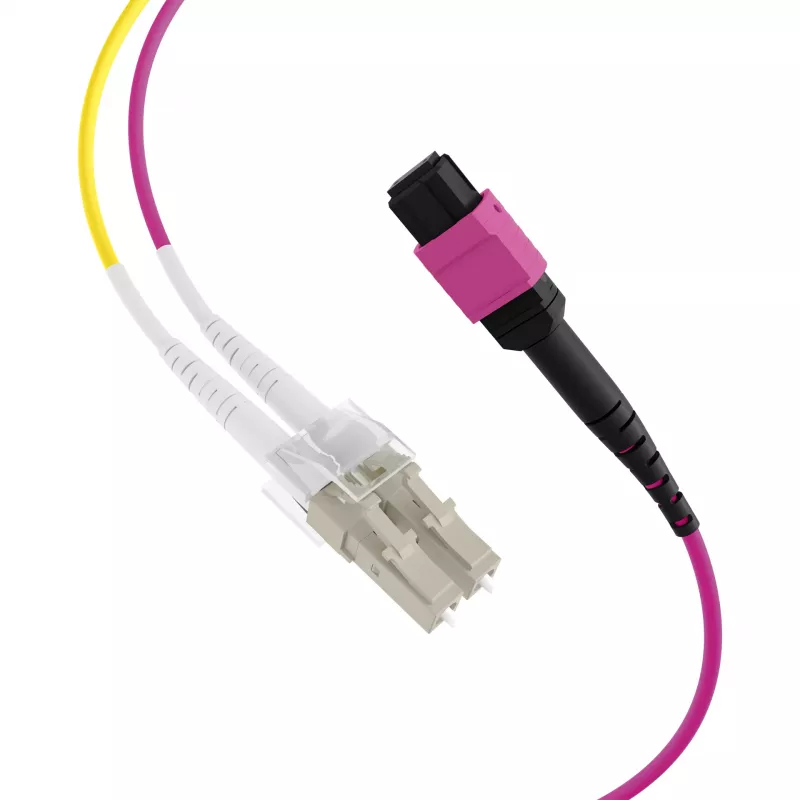

This EFB Elektronik MPOF12LCOM4-10 trunk cable stands out with its MPO-PLUS female connector on one end and LC duplex on the other, delivering a 12-fiber OM4 multimode link in a single assembly. The Type B polarity and LSZH jacket in Erika violet make it a distinct choice for high-density fiber patching where cable management and safety are critical.

Highlights

• 12 OM4 multimode fibers (50/125 µm) for 10G/40G/100G Ethernet
• MPO-PLUS female to LC duplex, Type B polarity
• LSZH jacket in Erika violet for low smoke and zero halogen
• 10-meter length, ideal for trunk runs between distribution areas

In daily use

Designed for data centers, SAN, and LAN backbones, this trunk cable simplifies deployment of parallel optics. The MPO-PLUS connector offers low insertion loss and high repeatability, while the LC duplex end connects directly to transceivers or cassettes. The LSZH jacket reduces toxic emissions in case of fire, and the violet color aids in quick identification of OM4 links.

Full specifications

• Cable type: Fiber optic trunk cable
• Fiber type: Multimode OM4
• Number of fibers: 12
• Connector A: MPO-PLUS female
• Connector B: LC duplex
• Polarity type: Type B
• Cable length: 10 m
• Jacket material: LSZH
• Jacket color: Erika violet
• Fiber core/cladding diameter: 50/125 µm
• Maximum bandwidth (850 nm): 4700 MHz·km
• Maximum bandwidth (1300 nm): 500 MHz·km
• Typical insertion loss (MPO): ≤ 0.35 dB
• Typical insertion loss (LC): ≤ 0.25 dB
• Operating temperature: -10 °C to 70 °C
• Storage temperature: -20 °C to 80 °C

Final note

A robust trunk cable for high-density fiber infrastructure, combining MPO efficiency with LC flexibility.
