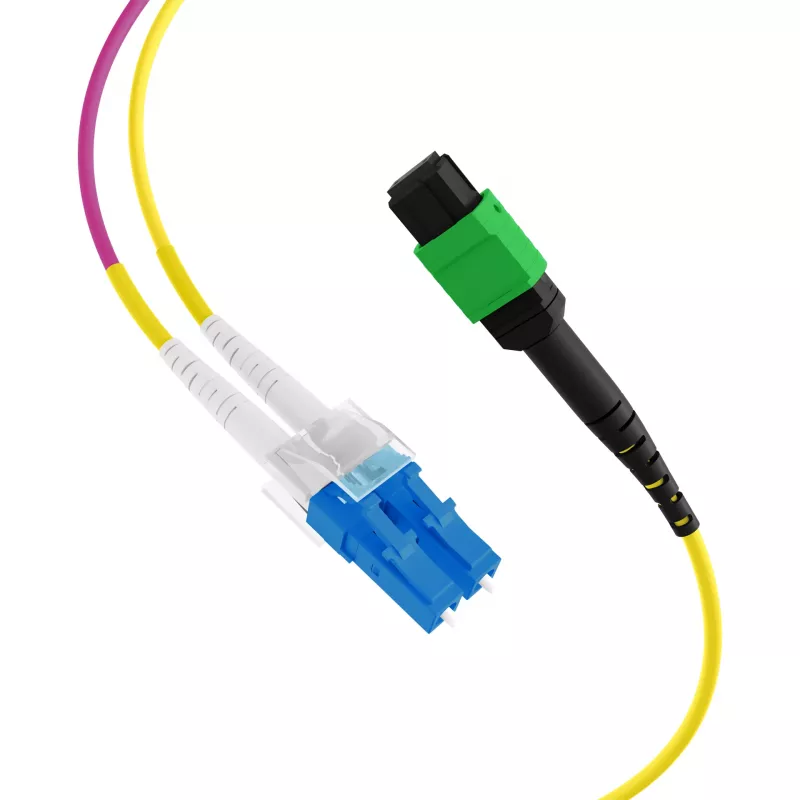

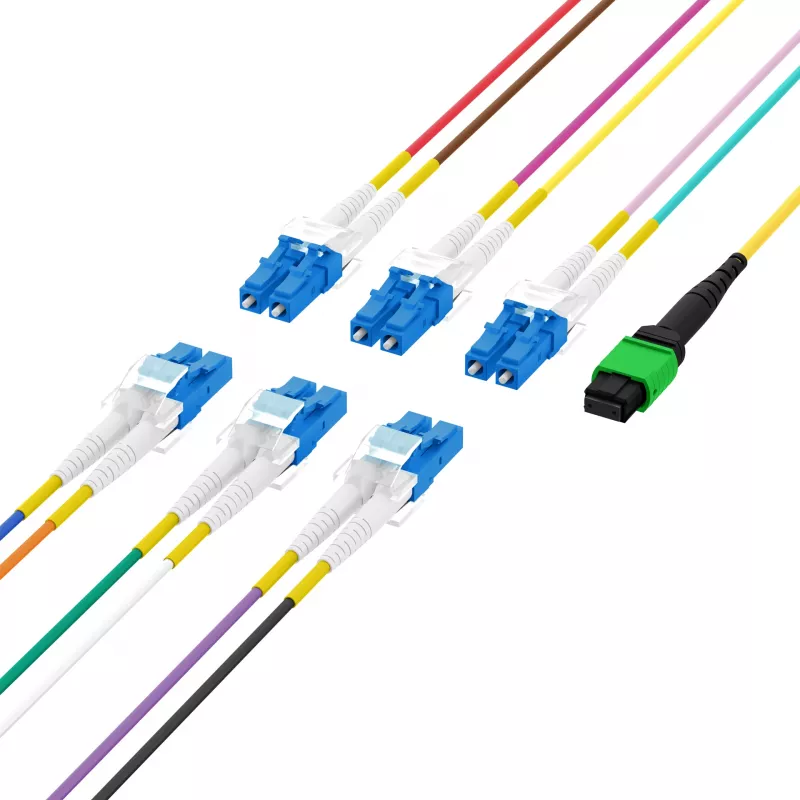

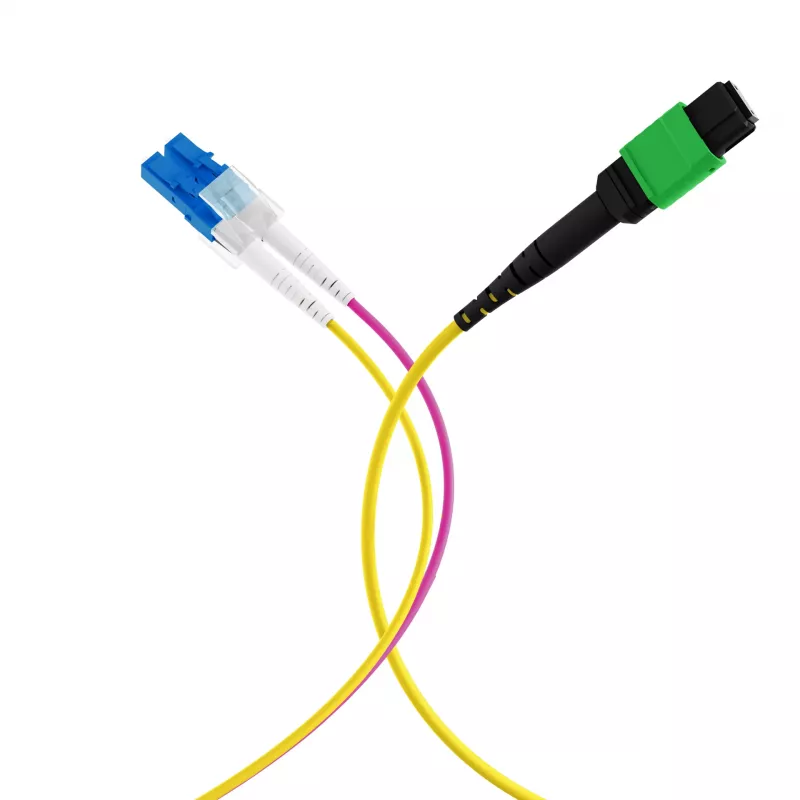

EFB Elektronik MPOF12LCOS2-10 cable troncal MPO-PLUS/APC(F)-LC OS2 12 fibras tipo B LSZH amarillo 10m

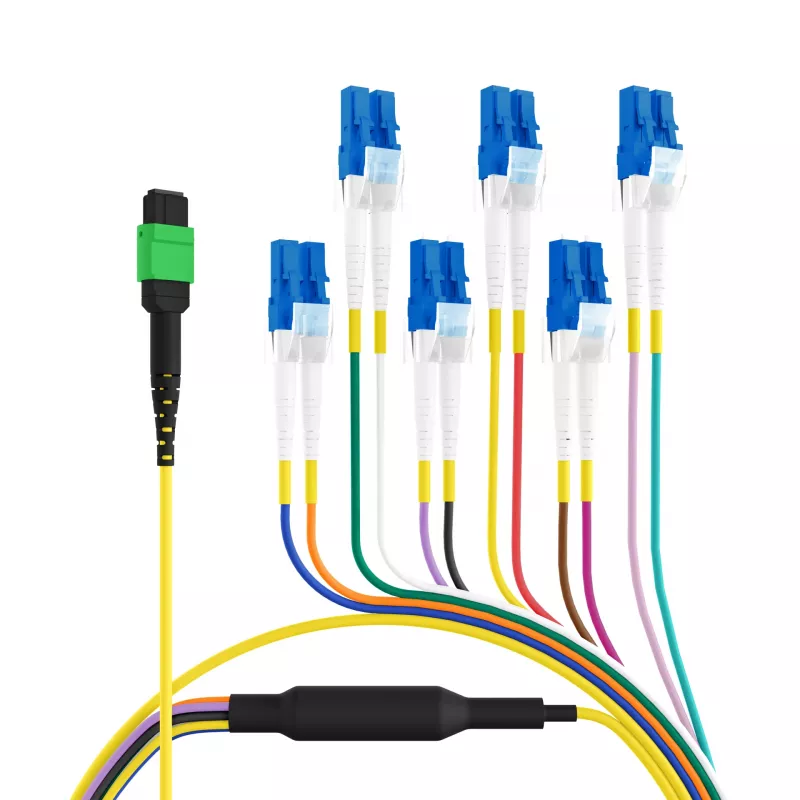

In data centers and enterprise backbone networks, the EFB Elektronik MPOF12LCOS2-10 trunk cable connects MPO-based high-density ports to LC-equipped equipment. This 10-meter cable bundles 12 single-mode OS2 fibers with an MPO-PLUS/APC female connector on one end and 12 LC/UPC connectors on the other, using Type B polarity for straightforward link establishment.

Key specifications

• Fiber type: Single-mode OS2 (9/125 µm)
• Fiber count: 12
• Connector A: MPO-PLUS/APC female
• Connector B: LC/UPC
• Polarity: Type B
• Length: 10 m
• Jacket: LSZH, yellow
• Insertion loss: MPO ≤ 0.35 dB, LC ≤ 0.25 dB
• Return loss: MPO ≥ 60 dB, LC ≥ 50 dB
• Operating temperature: -20°C to 70°C

Why choose it

The MPO-PLUS connector offers enhanced performance and reliability, while the LSZH jacket ensures low smoke and toxicity in case of fire, making it suitable for enclosed spaces. The yellow jacket clearly identifies single-mode fiber.

Ideal use cases

• Data center spine-leaf interconnects
• High-density fiber patching in telecom rooms
• Enterprise backbone cabling

Good to know

Type B polarity simplifies connectivity between MPO and LC interfaces by crossing the fiber positions appropriately. The cable is ready for immediate deployment in structured cabling systems.
