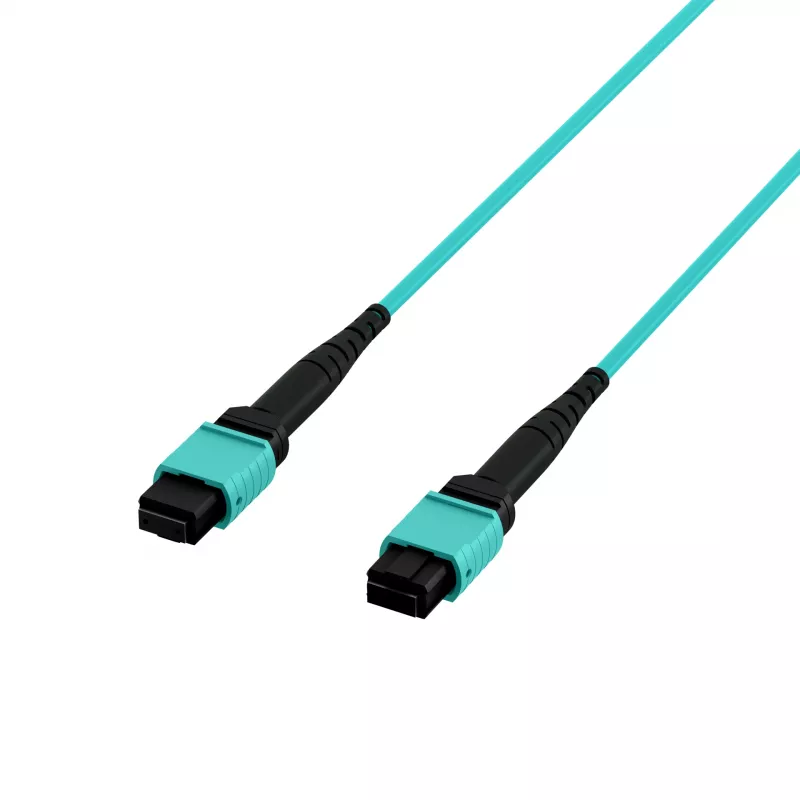

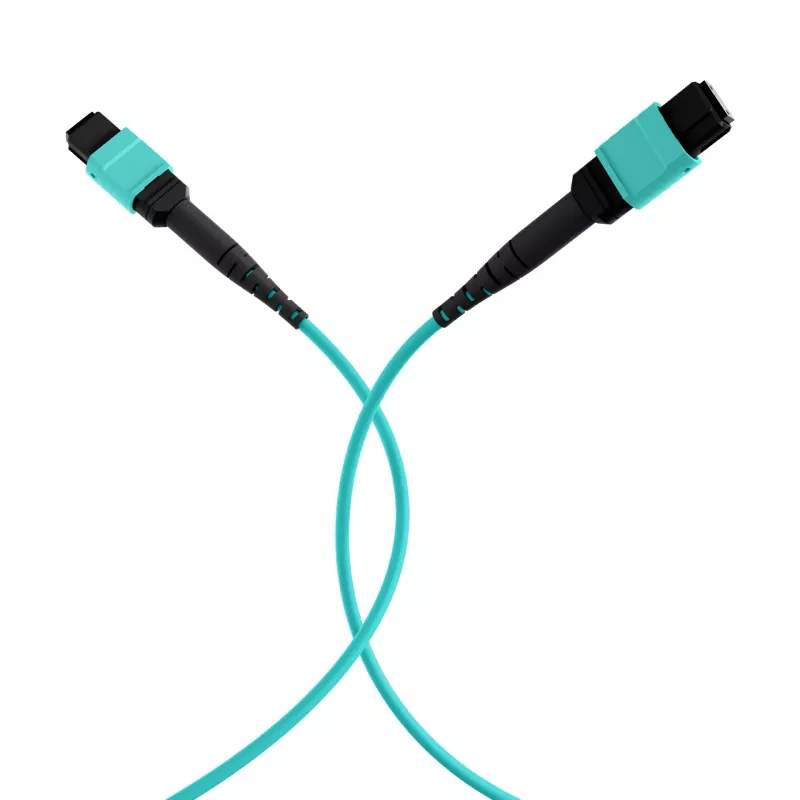

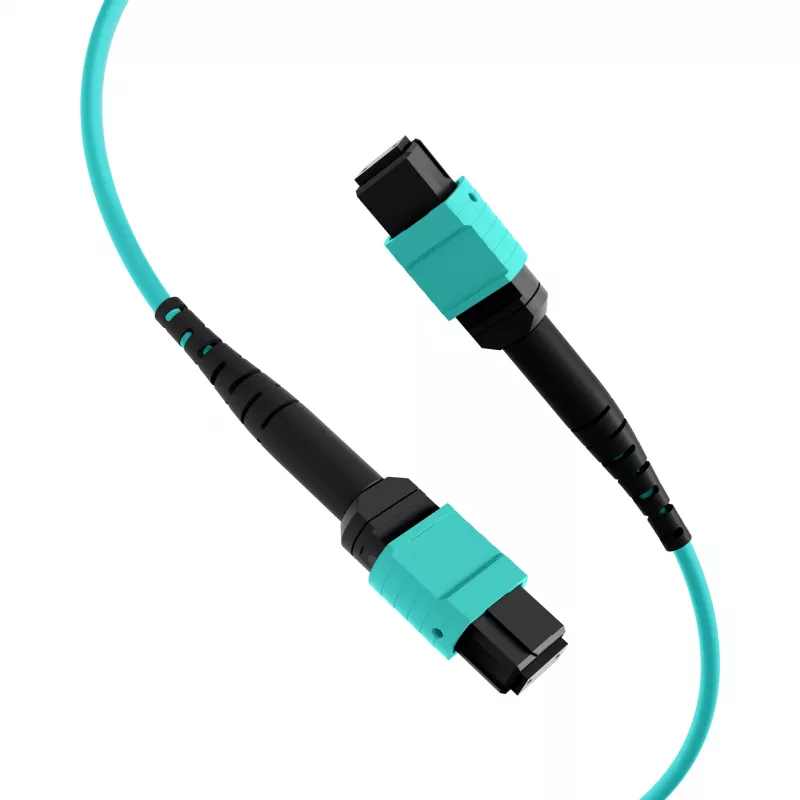

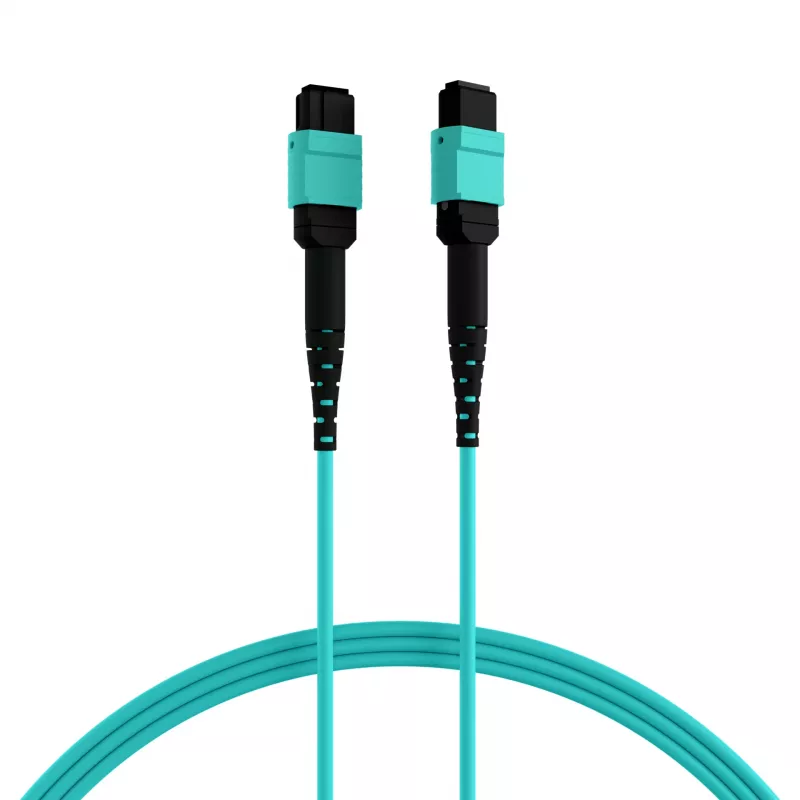

EFB Elektronik MPOF12MPOFOM3-2 cable de parcheo MPO-PLUS hembra a MPO-PLUS hembra OM3 12 fibras tipo B LSZH aqua, 2 m

This EFB Elektronik MPO-PLUS to MPO-PLUS patch cable is built for high-density fiber environments where 12 fibers must be connected in one motion. Unlike duplex jumpers that require six separate connections, this single MPO assembly uses a 12-fiber OM3 multimode ribbon and Type B polarity to link 40G and 100G parallel optics without polarity headaches.

Highlights

• MPO-PLUS female connector on both ends with key-up to key-up orientation
• 12 multimode OM3 fibers, 50/125 µm core/cladding diameter
• Type B (cross-over) polarity for direct transceiver-to-transceiver links
• LSZH aqua jacket, 2 m length, low smoke and halogen-free
• Insertion loss under 0.35 dB per connector pair, return loss over 20 dB

In daily use

The aqua LSZH jacket identifies OM3 at a glance and keeps smoke and toxic fumes low if a fire occurs. The MPO-PLUS ferrule design improves mating durability, while the 2 m length suits patching between adjacent racks or within a row. Operating range is -20 °C to +70 °C, so it works in standard data center aisles.

Full specifications

• Cable type: Fiber optic patch cable, multimode OM3
• Number of fibers: 12
• Connector A: MPO-PLUS female
• Connector B: MPO-PLUS female
• Polarity: Type B (cross-over)
• Cable length: 2 m
• Jacket material: LSZH (low smoke zero halogen)
• Jacket colour: Aqua
• Fiber core/cladding diameter: 50/125 µm
• Maximum insertion loss per connector pair: < 0.35 dB
• Minimum return loss: > 20 dB
• Bandwidth at 850 nm: 1500 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Application: 40G/100G Ethernet, data center interconnects, SAN

Final note

MPO-PLUS connectors offer improved mechanical alignment over standard MPO, making this cable a reliable choice for high-density fiber patching.
