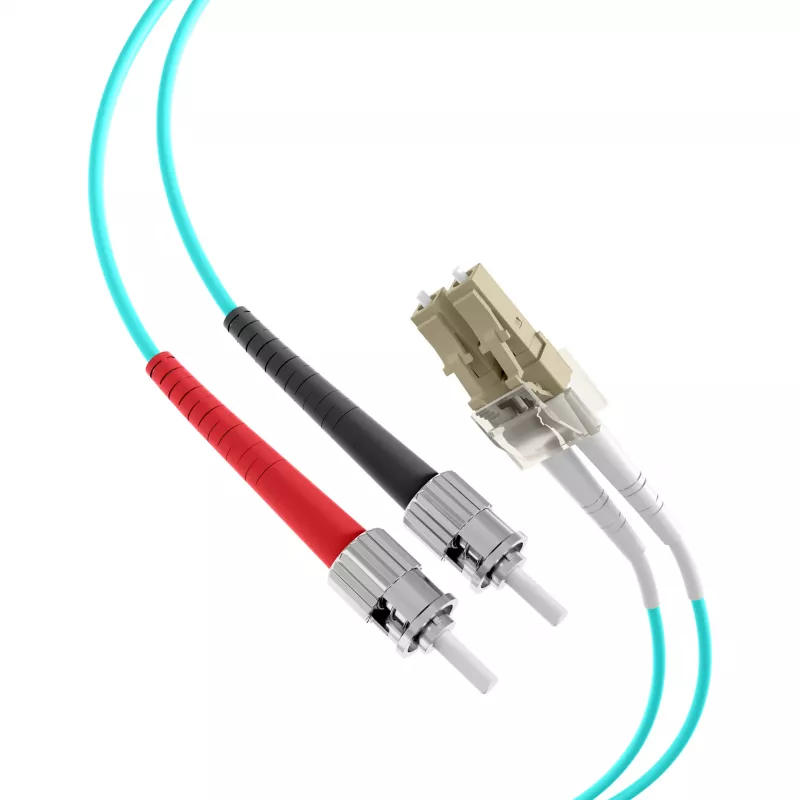

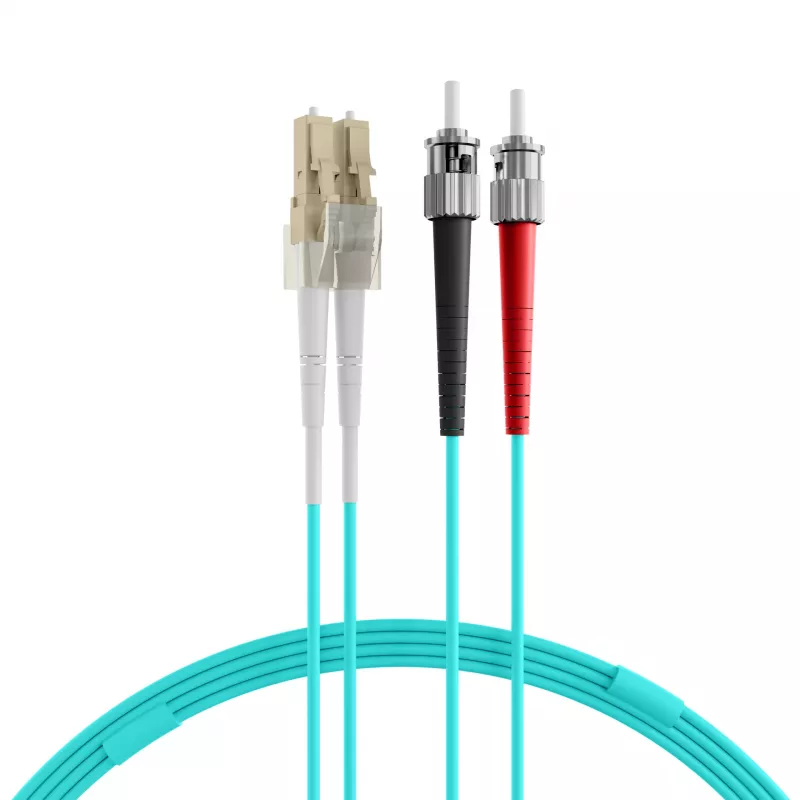

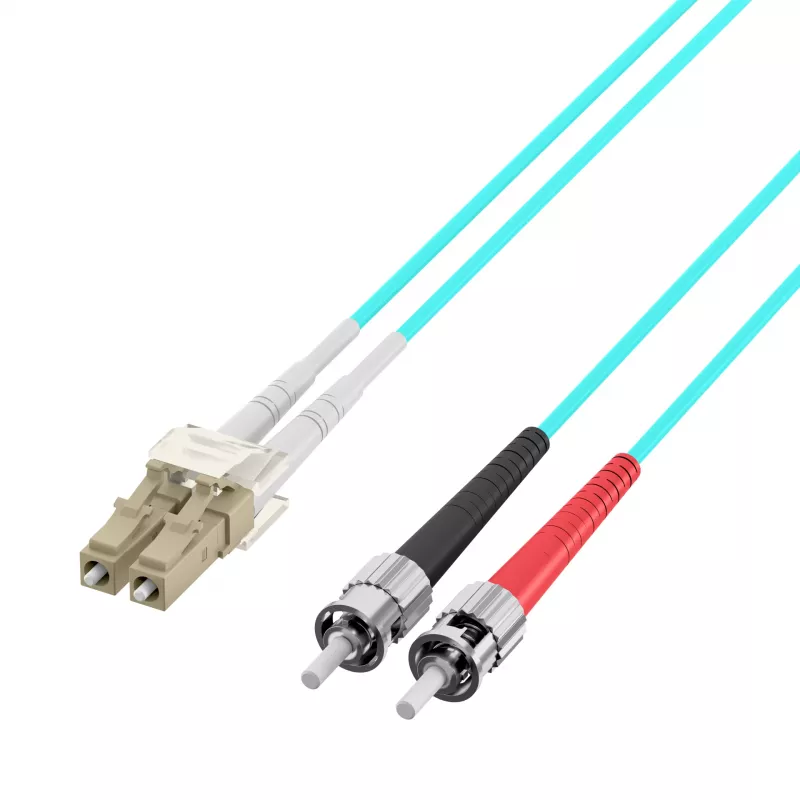

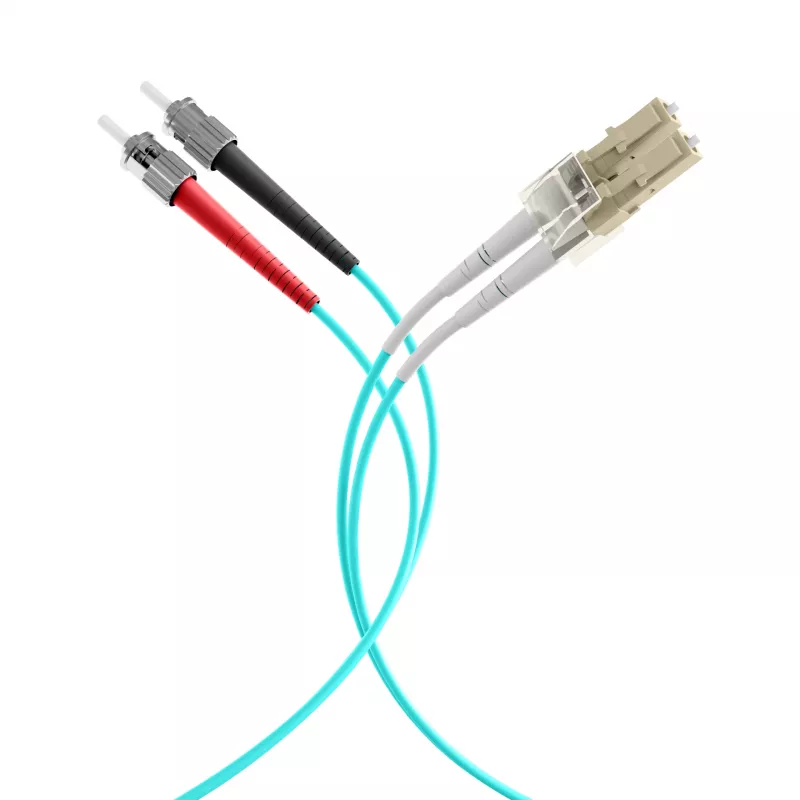

EFB Elektronik O0313.35 Cable de conexión de fibra óptica, OM3, 35 m, LC-ST, Dúplex, LSZH, Aqua

The EFB Elektronik O0313.35 is a high-performance fiber optic patch cable designed for reliable 10 Gigabit Ethernet connections in indoor environments. With a length of 35 meters and OM3 multimode fiber, this duplex cable features LC to ST connectors, ensuring low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the aqua color allows for easy identification.

Advantages

This patch cable offers exceptional performance for 10GbE networks, supporting distances up to 300 meters. The duplex configuration with two fibers enables full-duplex communication. The LC and ST connectors are widely used in data centers and telecommunications, providing secure and stable connections. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it ideal for indoor use.

Suitable for

• Data center cabling
• Server room connections
• Telecommunications networks
• High-speed local area networks (LANs)
• Fiber-to-the-desk (FTTD) applications

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode (MM)
• Fiber Class: OM3
• Cable Configuration: Duplex
• Number of Fibers: 2
• Connector Type A: LC Duplex
• Connector Type B: ST Duplex
• Cable Length: 35 m
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Designation: I-V(ZN)H
• Insertion Loss (Max): 0.3 dB
• Return Loss (Min): 30 dB
• Supported Data Rate: 10 Gigabit Ethernet (10GbE)
• Max Distance 10GbE (OM3): 300 m
• Operating Temperature: -10°C to 70°C
• Standards Compliance: RoHS, REACH, IEC 60332-1
• Application Environment: Indoor

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and ST ports. Store in a clean, dry environment to maintain signal quality.
