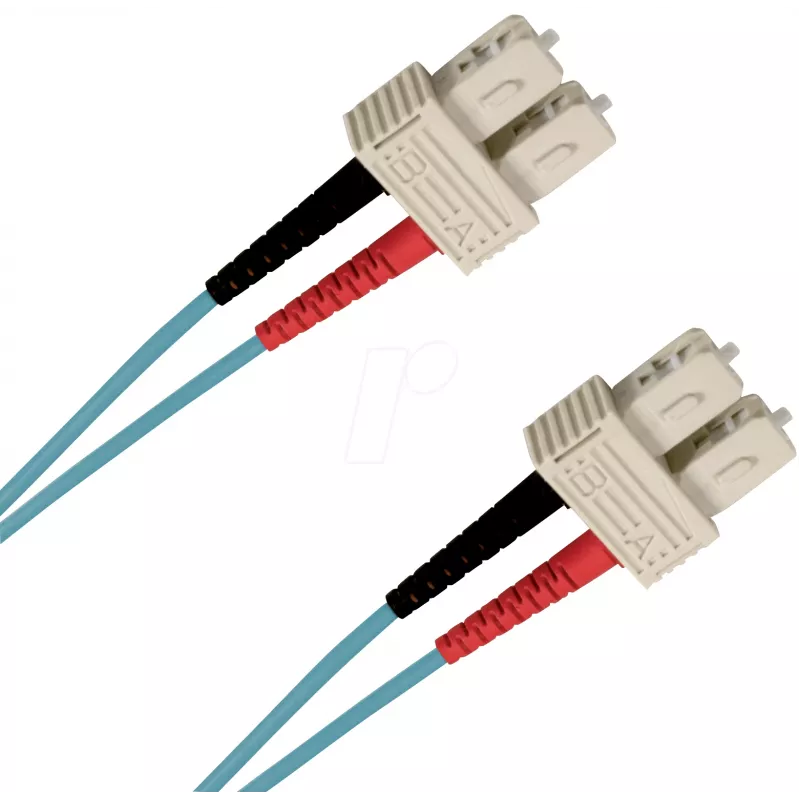

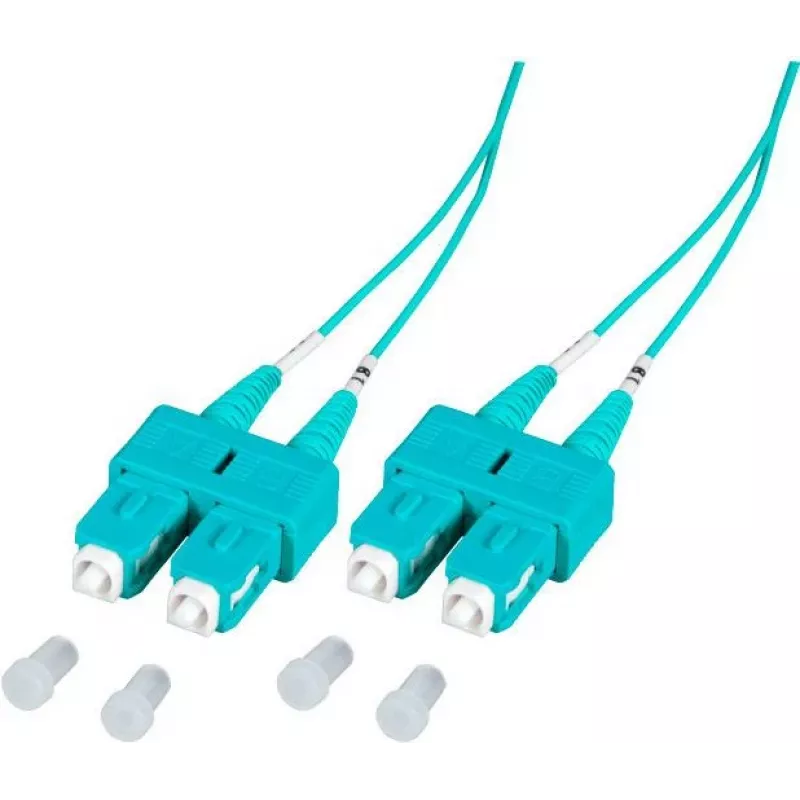

EFB Elektronik O7413.1-1.2 Cable de fibra óptica SC a SC dúplex OM3 LSZH aqua 1m SCSCOM3DAQ1

High-speed data centers and enterprise networks demand reliable fiber optic links that maintain signal integrity over short distances. The EFB Elektronik O7413.1-1.2 1m SC to SC Duplex OM3 LSZH Aqua Fiber Optic Patch Cable delivers a robust 10 Gigabit Ethernet connection between patch panels, switches, and servers. Its OM3 multimode core supports 10GbE up to 300 meters, making it ideal for backbone and horizontal cabling in modern LANs and SANs.

Who is it for

Network administrators and data center technicians who need a dependable, plug-and-play duplex patch cord with SC connectors. It suits installations where low smoke zero halogen (LSZH) jacketing is required for safety in enclosed spaces.

Main features

• Duplex SC to SC connectors for easy polarity management
• OM3 multimode fiber (50/125 µm) optimized for 850 nm VCSEL transceivers
• LSZH jacket in aqua for quick identification and reduced toxic emissions
• 1 meter length for tidy rack connections
• Low insertion loss (< 0.3 dB) and high return loss (> 35 dB)

Specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Connector A: SC
• Connector B: SC
• Connector Type: Duplex
• Cable Length: 1 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Number of Fibers: 2
• Attenuation (850nm): ≤ 2.5 dB/km
• Attenuation (1300nm): ≤ 0.8 dB/km
• Bandwidth (850nm): 1500 MHz·km
• Bandwidth (1300nm): 500 MHz·km
• Insertion Loss: < 0.3 dB
• Return Loss: > 35 dB
• Operating Temperature: -20°C to 70°C
• Standards Compliance: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173
• Application: 10 Gigabit Ethernet, Data Centers, LANs, SANs

Tips

When connecting, ensure the duplex clip aligns the transmit and receive fibers correctly. For best performance, keep bend radius above 30 mm to avoid signal loss.
