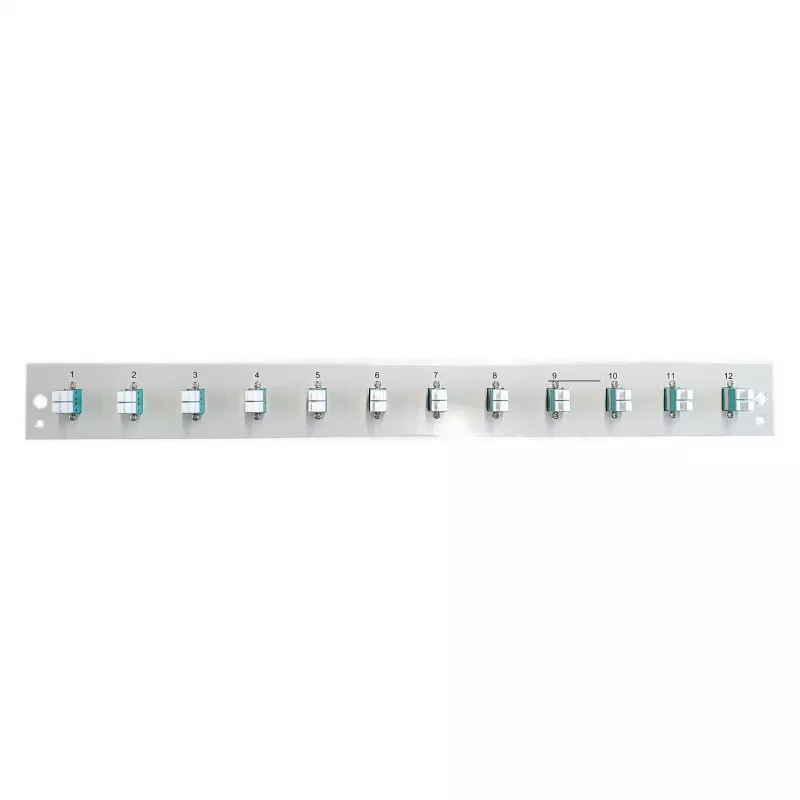

EFB Elektronik Panel frontal montado con 12 x acoplador LC Dúplex OM3, Negro

The EFB Elektronik Assembled Front Panel with 12 x LC Duplex Coupler OM3 is a high-quality, pre-populated fiber optic front panel designed for use in patch panels and enclosures. It features 12 LC duplex ports with OM3 multimode fiber adapters, ensuring reliable and high-speed data transmission. The panel is finished in black and includes dust caps for unused ports to maintain cleanliness and performance.

Advantages

This front panel offers easy installation and integration into existing EFB Elektronik patch panel systems. The pre-populated design saves time and labor, while the numbered ports facilitate quick identification and cable management. With typical insertion loss of ≤0.3 dB and return loss of ≥30 dB, it ensures excellent signal integrity for demanding network applications.

Suitable for

• Data centers and server rooms requiring high-density fiber connectivity
• Telecommunications and enterprise networks
• Fiber-to-the-desk (FTTD) installations
• Any application requiring reliable OM3 multimode fiber connections

Key specifications

• Product Type: Fiber Optic Front Panel
• Connector Type: LC Duplex
• Number of Ports: 12
• Fiber Mode: Multimode
• Fiber Grade: OM3
• Color: Black
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Mating Durability: > 500 cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standard Compliance: IEC 61754-20, TIA/EIA-604-10
• Port Identification: Numbered ports
• Dust Protection: Includes dust caps

Recommendations

For optimal performance, pair this front panel with EFB Elektronik patch panels and use OM3-rated patch cables. Ensure proper handling and storage to maintain low insertion loss and high return loss characteristics.
