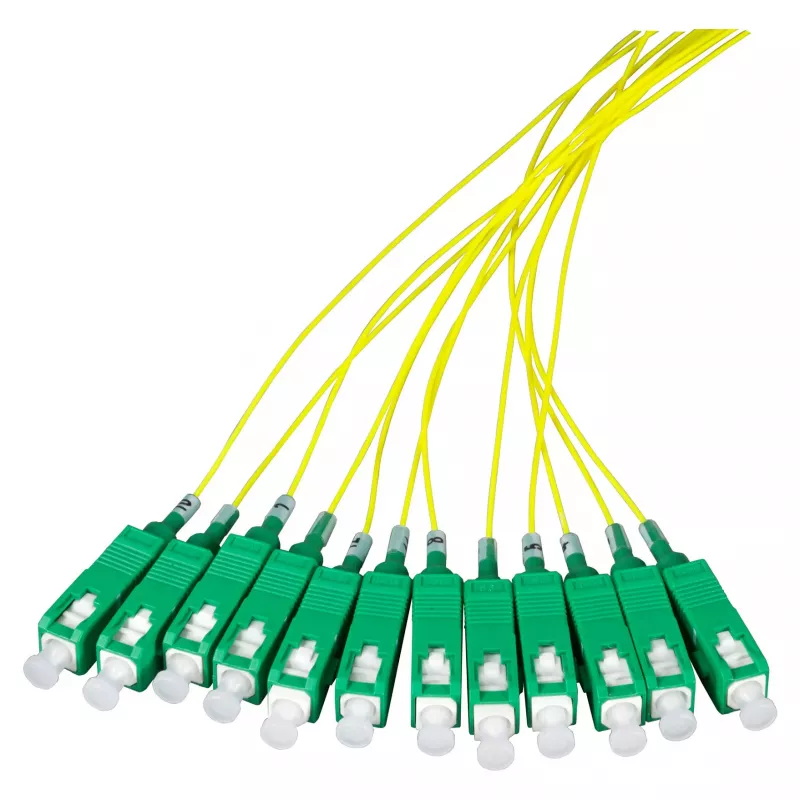

EFB Elektronik Pigtail FTTH SC/APC OS2 G.657.A2 9/125µm amarillo 2m

The EFB Elektronik FTTH Pigtail SC/APC is a high-quality single-mode fiber optic pigtail designed for FTTH, LAN, WAN, data centers, and telecommunications applications. It features a bend-insensitive G.657.A2 fiber with 9/125 µm core/cladding, SC/APC connector, and a 2-meter length. The yellow LSZH jacket ensures durability and safety.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥60 dB) ensure excellent signal integrity. The bend-insensitive fiber allows tight bends without performance degradation, ideal for space-constrained installations.

Suitable for

• FTTx networks
• Local and wide area networks
• Data centers
• Telecommunications infrastructure

Key specifications

• Fiber mode: Single-Mode
• Fiber standard: ITU-T G.657.A2
• Core/Cladding: 9/125 µm
• Connector: SC/APC
• Length: 2 m
• Jacket: Yellow LSZH, 0.9 mm diameter
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with matching SC/APC adapters and ensure proper cleaning before connection.
