EFB Elektronik prensaestopas IP67, M25, RJ45, conector macho TM31 a conector macho TM31 2,0 m

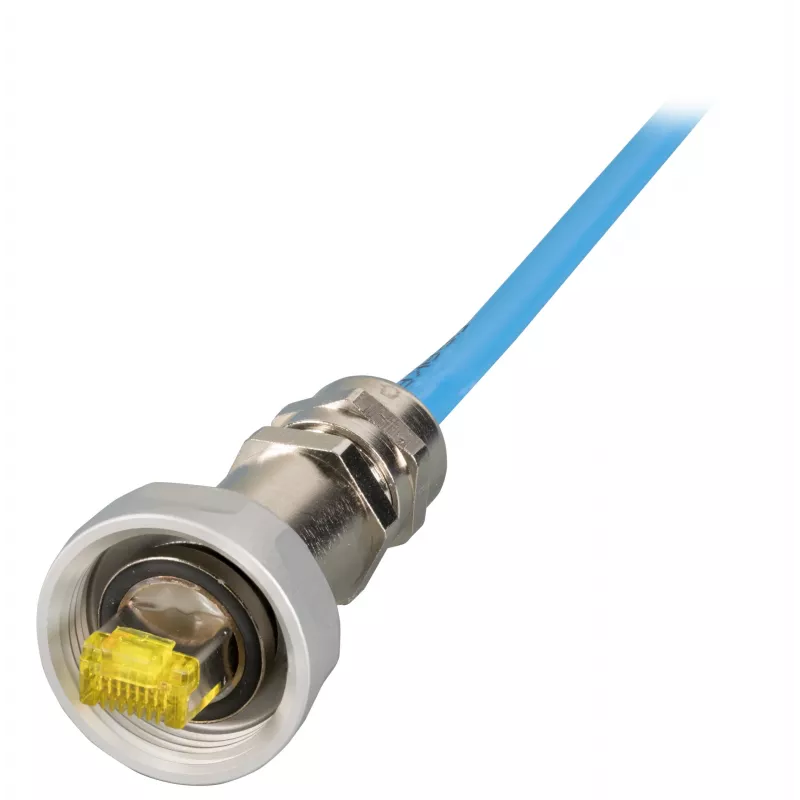

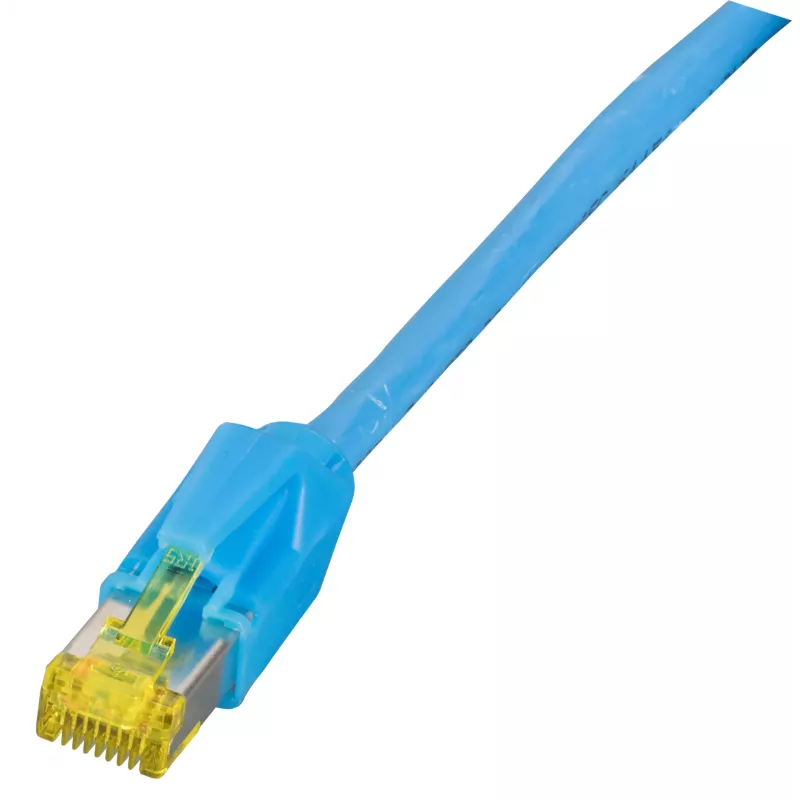

The EFB Elektronik IP67 Cable Gland with M25 thread is a robust RJ45 patch cable designed for industrial and outdoor applications. It features TM31 connectors on both ends, providing a secure and waterproof connection for harsh environments. With CAT6A performance and S/FTP shielding, this cable supports 10 Gigabit Ethernet and PoE++.

Advantages

IP67 protection ensures dust and water resistance, making it ideal for outdoor and industrial use. The PUR jacket offers durability and flexibility, while the M25 gland provides a tight seal. Stranded conductors and AWG 26/7 gauge ensure reliable data transmission.

Suitable for

• Industrial Ethernet networks
• Outdoor surveillance systems
• Harsh environment connectivity
• PoE++ powered devices

Key specifications

• Cable Type: RJ45 Patch Cable
• Category: CAT6A
• Shielding: S/FTP (PiMF)
• Connector 1: TM31 RJ45 Plug
• Connector 2: TM31 RJ45 Plug
• Ingress Protection: IP67
• Gland Thread Size: M25
• Cable Length: 2.0 m
• Data Transfer Rate: 10 Gigabit Ethernet
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7
• Cable Construction: Stranded
• Jacket Material: PUR
• Color: Black
• PoE Support: Yes (up to PoE++)
• Operating Temperature: -20°C to +70°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance in demanding environments, pair this cable with compatible IP67-rated connectors and equipment. Ensure proper installation of the cable gland for maximum protection.
