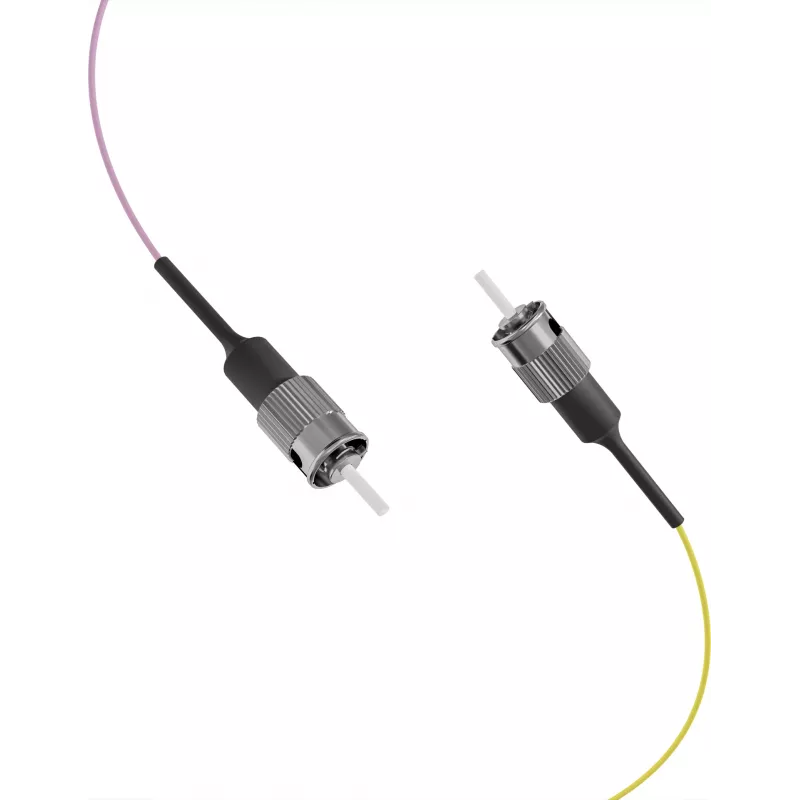

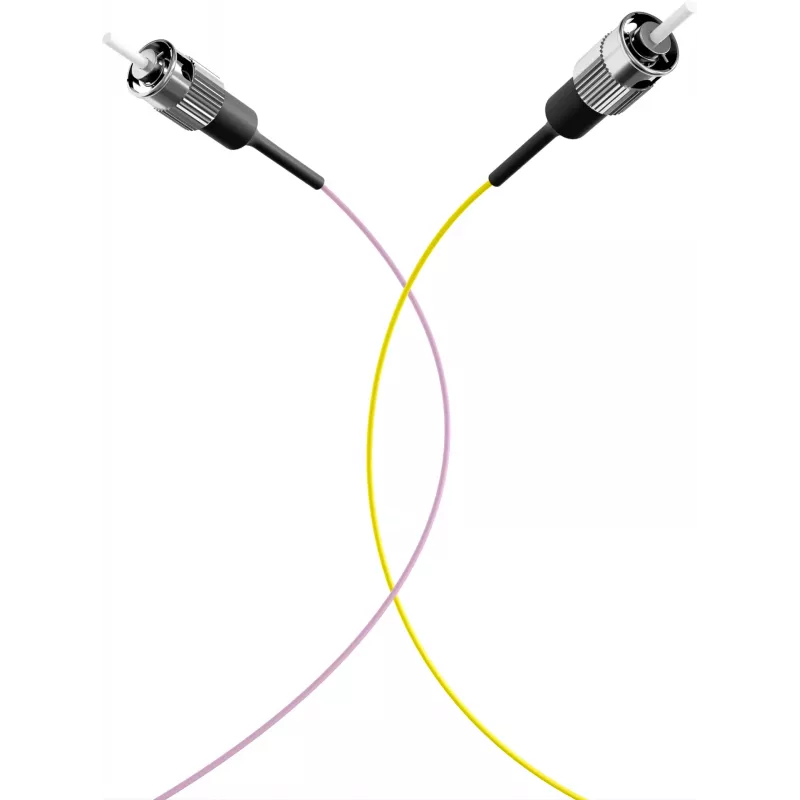

EFB Fiber pigtail ST 50/125µm OM4, set de 12 colores, 2m

With a modal bandwidth of 4700 MHz·km at 850 nm, this 12-fibre pigtail set is built for high-speed multimode backbone links. Each 2-metre pigtail is terminated with an ST connector and colour-coded according to DIN VDE 0888 / TIA-598-C, making installation and identification straightforward in patch panels and splice closures.

Overview

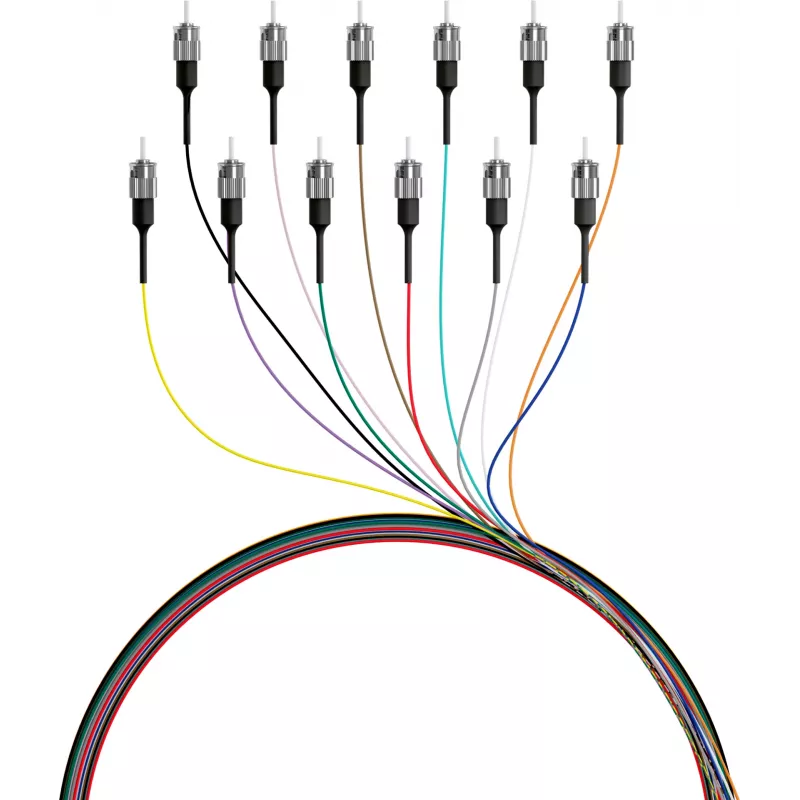

The EFB O3307.2 is a set of twelve 50/125 µm OM4 multimode fibre pigtails, each 2 metres long and pre-terminated with an ST connector. The pigtails feature a 0.9 mm buffer and LSZH jacket, ensuring low smoke and zero halogen emissions in case of fire. With insertion loss ≤ 0.3 dB and return loss ≥ 30 dB, they deliver reliable performance for 10G, 40G, and 100G Ethernet applications up to 550 metres at 850 nm.

What stands out

• 12-colour coding for easy fibre identification and management
• OM4 grade supports 10G/40G/100G Ethernet up to 550 m at 850 nm
• LSZH jacket for enhanced safety in indoor installations
• Low insertion loss ≤ 0.3 dB and high return loss ≥ 30 dB
• ST connectors provide secure, bayonet-style mating
• Compliant with RoHS and REACH environmental standards

Technical details

• Fibre type: Multimode OM4, 50/125 µm core/cladding diameter
• Connector type: ST (straight tip, bayonet)

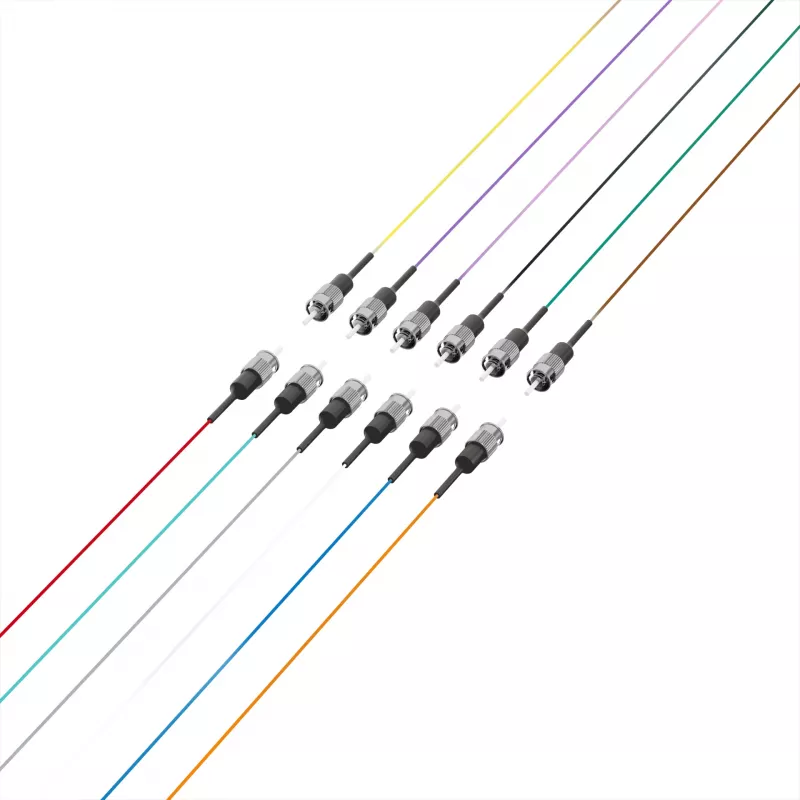

• Number of pigtails: 12 (one per colour)
• Pigtail length: 2 metres each
• Buffer diameter: 0.9 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 30 dB
• Operating wavelengths: 850 nm / 1300 nm
• Modal bandwidth @ 850 nm: 4700 MHz·km
• Modal bandwidth @ 1300 nm: 500 MHz·km
• Attenuation @ 850 nm: ≤ 2.3 dB/km
• Attenuation @ 1300 nm: ≤ 0.6 dB/km
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Our verdict

An excellent choice for structured cabling professionals who need a complete, colour-coded set of OM4 pigtails for splicing or termination. The LSZH jacket and precise optical performance make it suitable for data centres, enterprise networks, and industrial environments.
