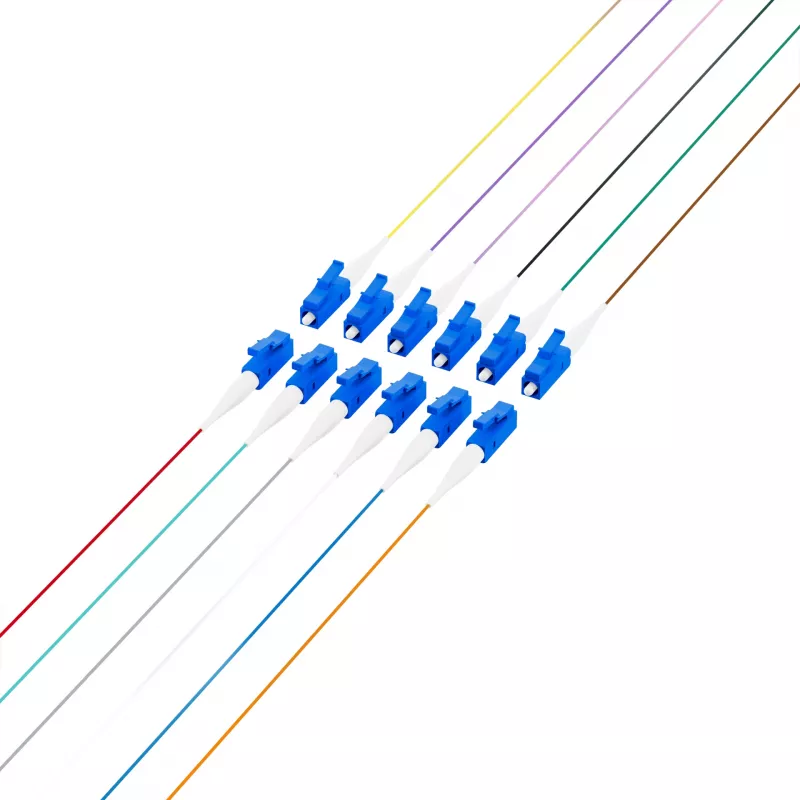

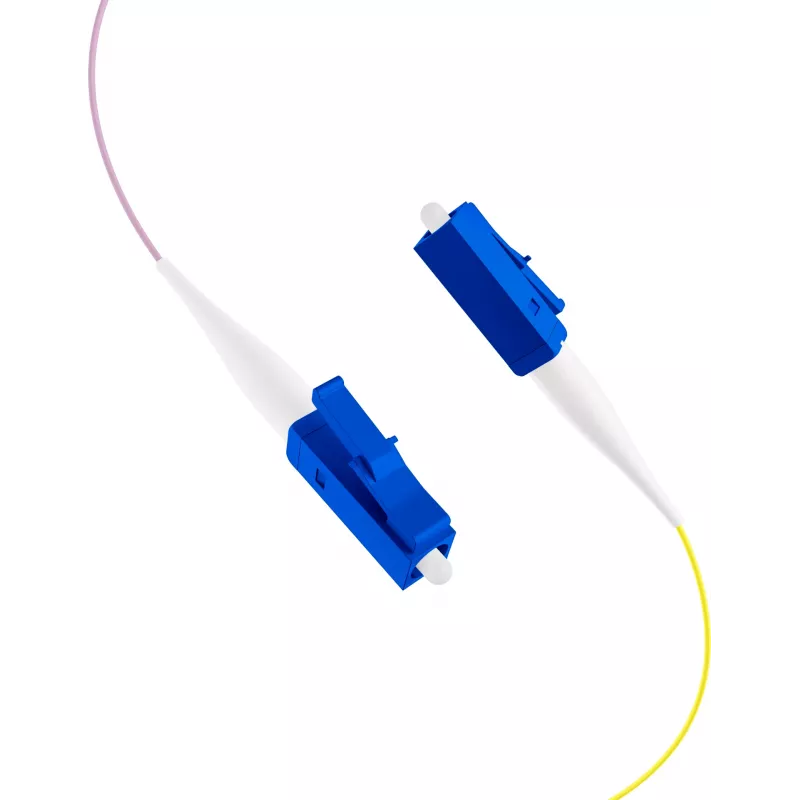

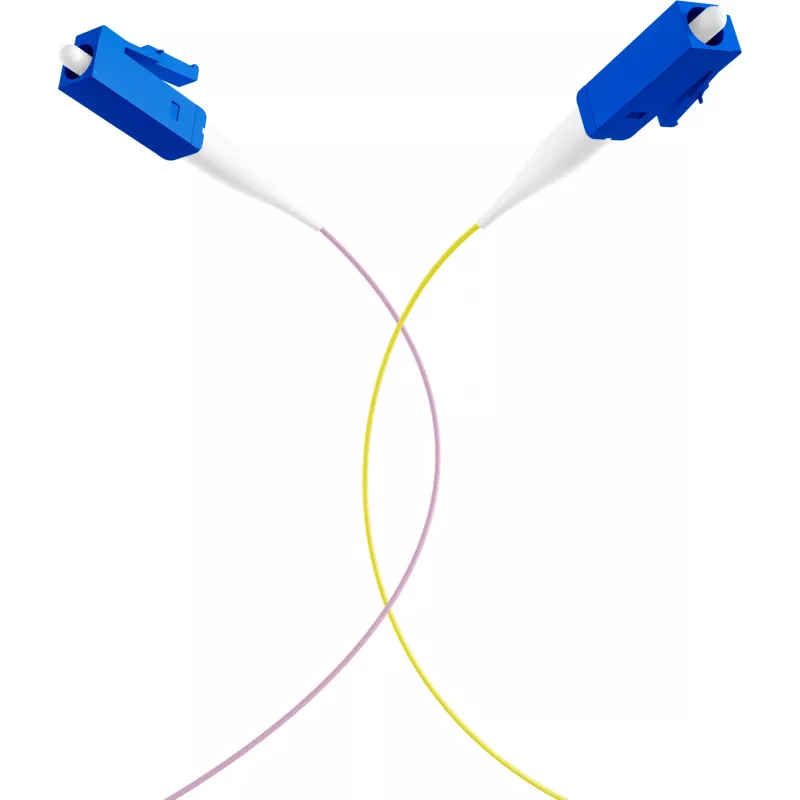

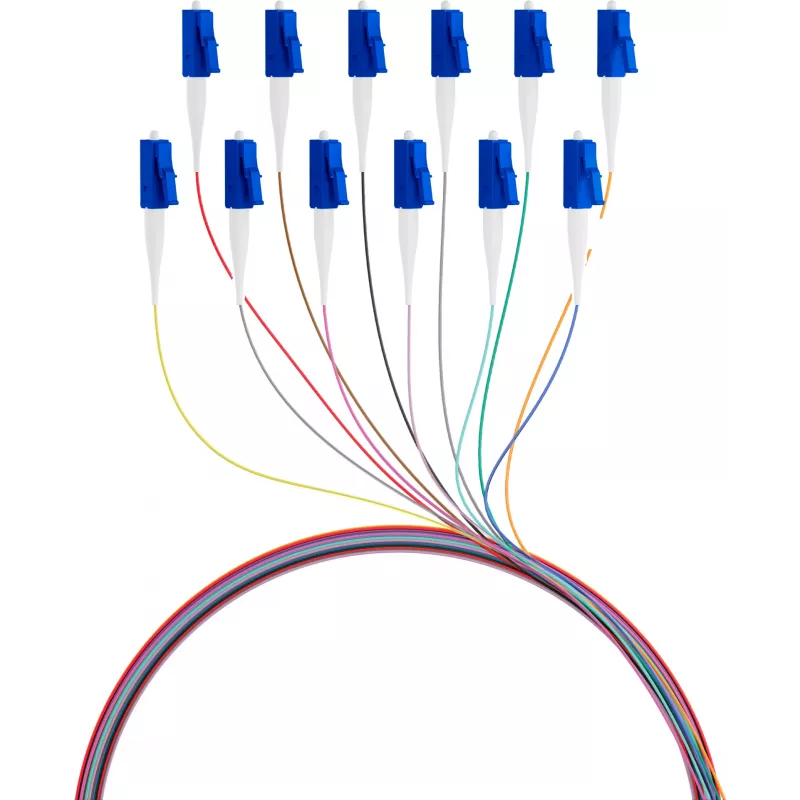

EFB FTTH pigtail LC OS2 G.657.A2 set de 12 colores, 2m, monomodo 9/125µm, resistente a curvaturas, 12 fibras

For fibre-optic installations that demand reliable, low-loss connections in tight spaces, this EFB pigtail set with 12 colour-coded LC connectors and bend-insensitive G.657.A2 fibre is a practical choice. Unlike standard G.652 pigtails, the G.657.A2 construction tolerates a minimum bend radius of just 7.5 mm, making it easier to route inside splice cassettes, wall outlets, and FTTH termination boxes without compromising signal integrity. Each of the 12 pigtails is 2 metres long and terminated with a high-quality LC connector, ready for splicing or direct termination in FTTH, data centre, and telecom environments.

Highlights

• 12 individually colour-coded pigtails for easy fibre identification (TIA/EIA-598-C compliant)
• Bend-insensitive G.657.A2 singlemode fibre with 9 µm core and 125 µm cladding
• LC connectors for high-density patching and splicing
• 2-metre length provides ample slack for termination and routing
• RoHS compliant for environmental safety

In daily use

This pigtail set streamlines fibre management in FTTH and data centre projects. The colour-coded jackets allow quick identification of individual fibres, reducing installation time and the risk of cross-connection errors. The tight-buffered 0.9 mm design offers flexibility and protection, while the bend-insensitive fibre ensures stable performance even when routed around corners or in confined spaces. Whether you are splicing into a distribution frame or connecting directly to an ONT, these pigtails deliver consistent low attenuation and long-term reliability.

Full specifications

• Product type: Fibre optic pigtail set
• Fibre mode: Singlemode
• Fibre standard: ITU-T G.657.A2 (bend-insensitive)
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector type: LC
• Number of fibres: 12
• Colour coding: 12-colour set (TIA/EIA-598-C compliant)
• Cable length: 2 m
• Buffer type: Tight buffer
• Buffer diameter: 0.9 mm
• Minimum bend radius: 7.5 mm
• Application: FTTH, data centre, telecommunications, FTTx
• Compliance: RoHS

Final note

EFB's FTTH pigtail set combines bend-insensitive fibre with colour-coded LC connectors, offering a dependable and efficient solution for modern fibre-optic installations.
