Eaton 107190 borne de conexión de conductor 16-120 mm² para barra conductora de 5 mm, conexión por tornillo, gris

Connect conductors from 16 to 120 mm² to a 5 mm thick busbar with this Eaton terminal, rated for up to 250 A and 690 V AC.

Overview

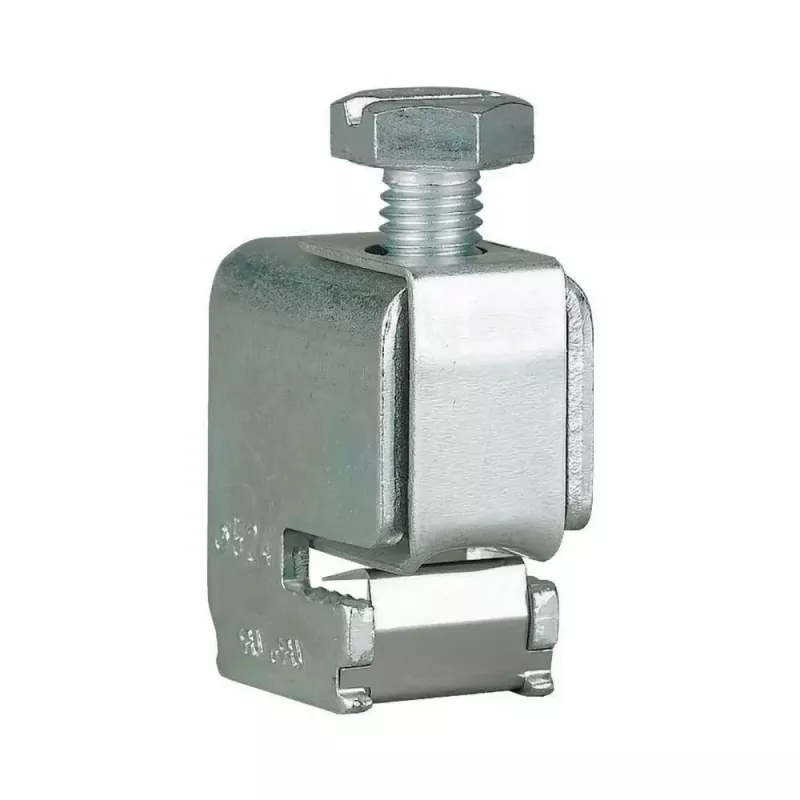

The Eaton 107190 is a single-pole conductor connection terminal designed for busbar mounting. It accepts rigid or flexible conductors with cross-sections from 16 to 120 mm² and clamps onto busbars with a thickness of 5 mm and widths from 12 to 30 mm. The screw terminal connection ensures a secure and reliable electrical contact.

What stands out

• Wide conductor range: accommodates 16 to 120 mm² conductors, both rigid and flexible.
• High current rating: supports operational currents up to 250 A at 690 V AC.
• Robust construction: polyamide insulation, brass clamping body, and galvanized steel screw.
• Tool-friendly: tightening torque of 10 Nm for the conductor screw.

Technical details

• Conductor cross-section (flexible): 16 - 120 mm²
• Conductor cross-section (rigid): 16 - 120 mm²
• Busbar thickness: 5 mm
• Suitable for busbar widths: 12 - 30 mm
• Rated operational current (Ie): 250 A
• Rated operational voltage (Ue): 690 V AC
• Connection type: Screw terminal
• Number of connections: 1 (conductor)
• Number of poles: 1-pole
• Mounting type: Busbar mounting
• Insulation material: Polyamide (PA)
• Clamping material: Brass
• Screw material: Steel, galvanized
• Colour: Grey
• Degree of protection: IP20
• Tightening torque (conductor screw): 10 Nm
• Standard compliance: IEC/EN 60947-7-1

Our verdict

A high-capacity terminal for demanding power distribution applications, built to handle large conductors with ease.
