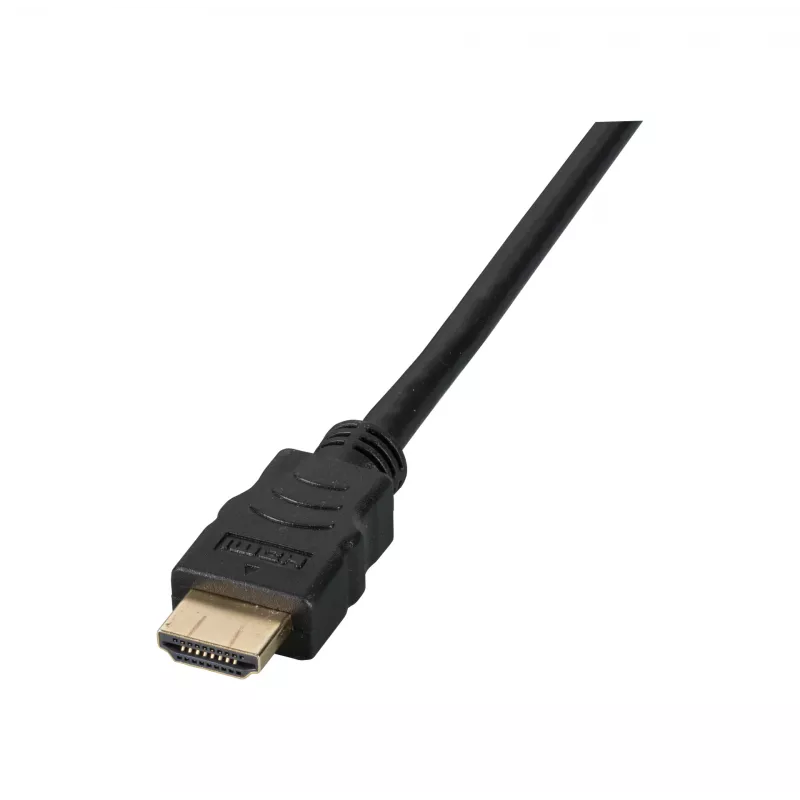

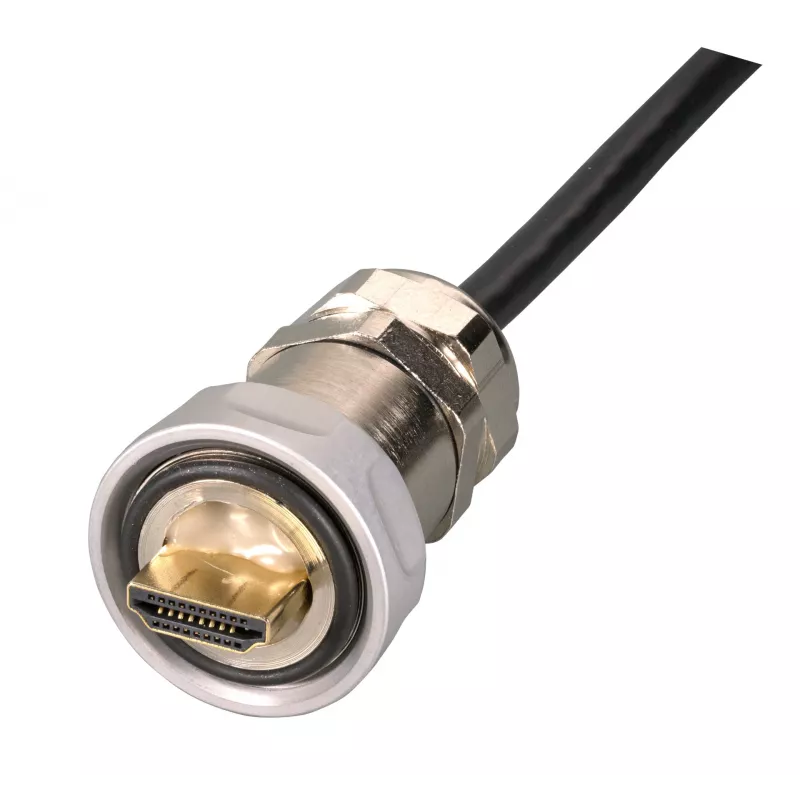

EFB IP67 prensaestopas, M25, conector macho HDMI Type-A a conector macho HDMI Type-A, 1,0 m

The EFB IP67 HDMI cable gland is a robust and reliable solution for transmitting high-definition audio and video signals in demanding industrial and outdoor environments. Designed with an M25 mounting thread and IP67 ingress protection, this cable ensures dust-tight and waterproof connectivity, making it ideal for use in harsh conditions. The cable features HDMI Type-A male connectors on both ends, supporting High-Speed HDMI with Ethernet, 4K@60Hz resolution, and 18 Gbps bandwidth. Triple shielding and nickel-plated brass housing provide excellent EMI protection and durability.

Advantages

IP67-rated protection against dust and water ingress, suitable for outdoor and industrial applications. High-speed data transfer up to 18 Gbps with support for 4K@60Hz, ARC, and HEC. Robust construction with triple shielding and nickel-plated brass housing ensures long-lasting performance. Easy installation via M25 cable gland for panel mounting.

Suitable for

• Industrial automation and control systems
• Outdoor digital signage and displays
• Security camera systems
• Marine and transportation applications
• Any environment requiring dust and water-resistant HDMI connections

Key specifications

• Connector A: HDMI Type-A Male
• Connector B: HDMI Type-A Male
• Cable Length: 1.0 m
• Ingress Protection: IP67
• Mounting Thread Size: M25
• HDMI Standard: High-Speed HDMI with Ethernet
• Max Resolution: 4K@60Hz
• Bandwidth: 18 Gbps
• HDCP Support: Yes
• Audio Return Channel (ARC): Yes
• HDMI Ethernet Channel (HEC): Yes
• Conductor Material: Copper
• Shielding: Triple Shielded
• Housing Material: Nickel-plated Brass / PA66
• Operating Temperature: -20°C to +80°C
• Color: Black / Silver
• Compliance: RoHS, CE

Recommendations

For optimal performance in harsh environments, pair this IP67 HDMI cable gland with compatible IP67-rated enclosures and connectors. Ensure the M25 thread is properly sealed with appropriate gaskets.
