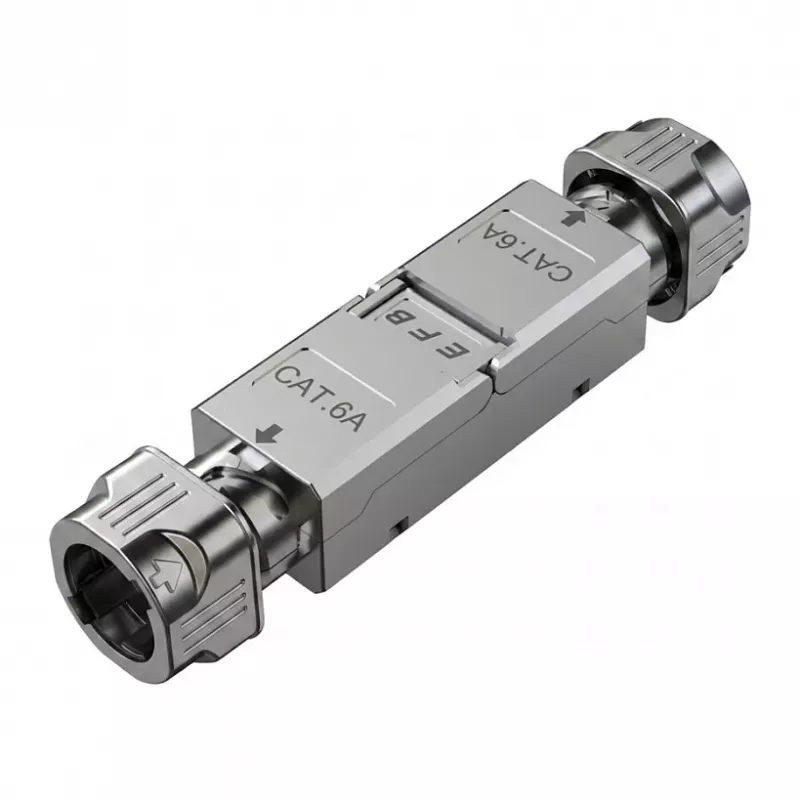

EFB Módulo de acoplamiento Keystone blindado Slimline Cat.6A/Cat.7/Cat.7A RJ45 hembra a hembra

The EFB Verbindungsmodul Cat.6A/Cat.7/Cat.7A Slimline is a high-performance shielded keystone coupling module designed for reliable network connections in demanding environments. This module supports Cat.6A, Cat.7, and Cat.7A standards, ensuring compatibility with 10 Gigabit Ethernet (10GBase-T) networks. Its slimline design allows for high-density installations in patch panels, wall outlets, and surface mount boxes.

Advantages

This keystone module offers exceptional transmission performance up to 500 MHz, making it ideal for high-speed data applications. The die-cast zinc housing provides robust shielding against electromagnetic interference (EMI), while the gold-plated contacts ensure reliable connectivity and corrosion resistance. It supports Power over Ethernet (PoE, PoE+, PoE++) for powering devices such as IP cameras and wireless access points.

Suitable for

• Data centers and server rooms requiring high-density cabling
• Enterprise networks needing reliable 10GBase-T connections
• Industrial environments where EMI protection is critical
• Structured cabling systems for future-proof installations

Key specifications

• Product Type: Keystone Coupling Module
• Connector Type: RJ45 Female to RJ45 Female
• Shielding: Shielded (FTP/STP compatible)
• Supported Categories: Cat.6A, Cat.7, Cat.7A
• Transmission Performance: Up to 10 Gigabit Ethernet (10GBase-T)
• Frequency Range: Up to 500 MHz
• Housing Material: Die-cast zinc
• Contact Material: Phosphor Bronze
• Contact Plating: Gold-plated (50µ" / 1.27µm)
• Mounting Type: Keystone snap-in
• Design: Slimline
• Color: Silver
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -10°C to +60°C
• Humidity: 10% to 90% RH (non-condensing)
• Insertion Cycles: >750
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)

Recommendations

For optimal performance, pair this module with shielded Cat.6A or Cat.7 cables and compatible keystone patch panels. Ensure proper grounding to maximize EMI protection.
