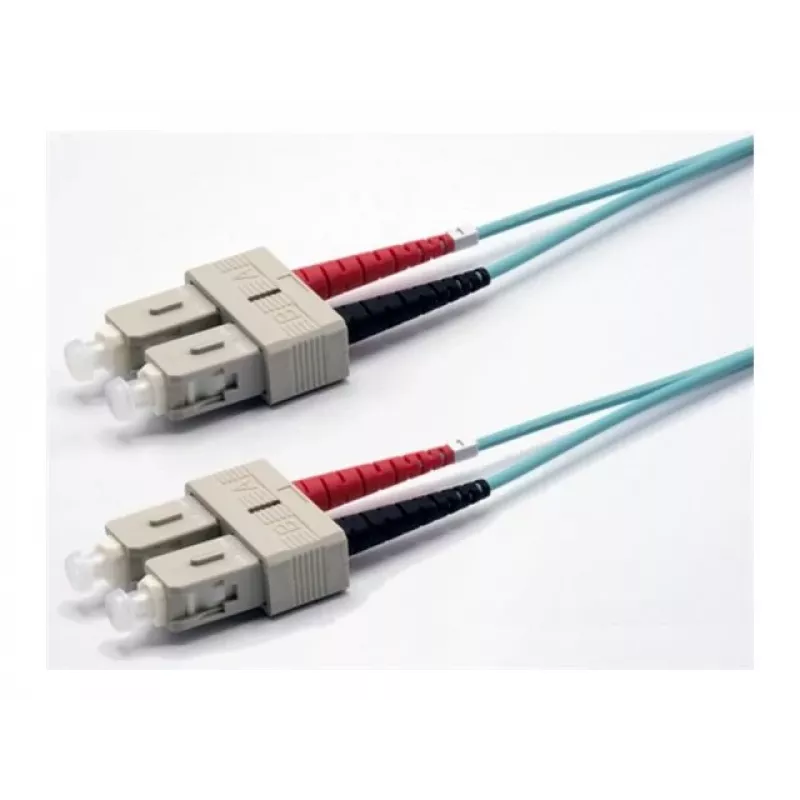

Ekivalan OM3 Duplex Cable de conexión, 50/125 µm, SC/SC, aqua, 10 m COZOM3DCDC2SA0100A

High-speed data centres and enterprise networks need reliable fibre links that maintain signal integrity over longer runs. This 10-metre OM3 duplex patch cable delivers that reliability with SC connectors on both ends and a low-smoke zero-halogen jacket, making it suitable for high-density patching where safety and performance matter.

Who is it for

Network engineers and installers who require a robust multimode fibre jumper for 10G/40G/100G Ethernet applications. The aqua jacket follows industry colour-coding for OM3, simplifying identification in crowded racks.

Main features

• OM3 multimode fibre with 50 µm core and 125 µm cladding
• Duplex construction with SC connectors on both ends
• PC polish for low insertion loss and consistent return loss
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire
• Supports 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10 protocols

Specifications

• Cable length: 10 m
• Fibre type: OM3 multimode
• Core/cladding diameter: 50/125 µm
• Connector type: SC/SC duplex
• Connector polish: PC
• Jacket material: LSZH
• Jacket colour: Aqua
• Minimum bend radius: 30 mm
• Insertion loss (max): 0.3 dB per connector
• Return loss (min): 30 dB
• Modal bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to 70°C

Tips

Use this cable for short-to-medium distance links in data centre environments. The LSZH jacket is ideal for enclosed spaces where fire safety regulations require low smoke emission. Always maintain the minimum bend radius to avoid signal degradation.
