ELEKTROKABEL OMY Cable eléctrico flexible de PVC 3x1.5 mm² 300/300V, negro

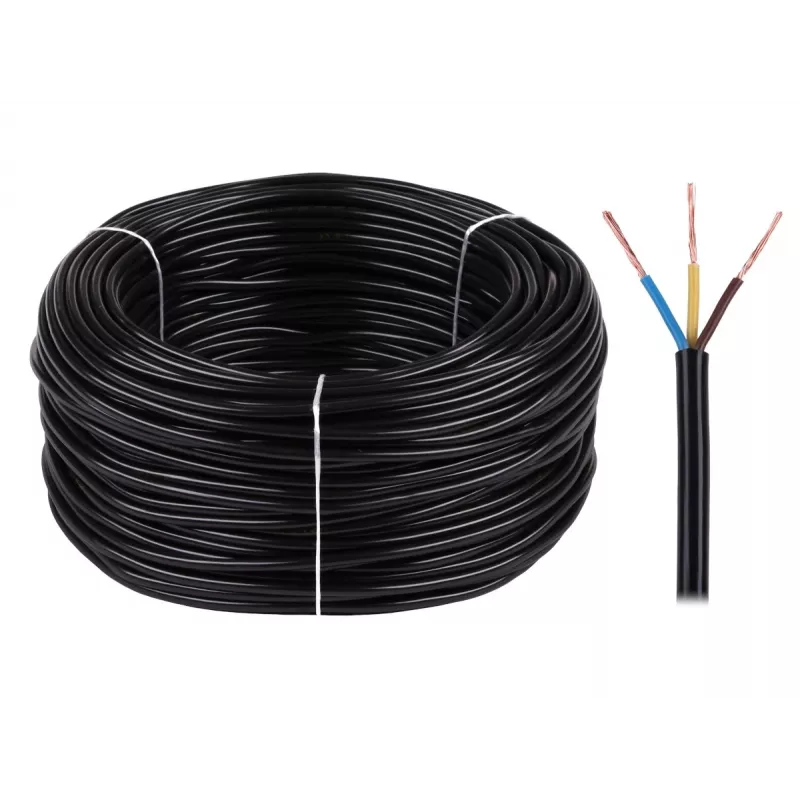

Rated at 300/300V and built with three stranded electrolytic copper conductors, each 1.5 mm², this flexible PVC cable delivers dependable power for light portable appliances and office equipment. The black PVC sheath and insulation provide robust protection, while the colour-coded cores (brown, blue, green/yellow) simplify installation.

Overview

The ELEKTROKABEL OMY 3x1.5 is a flexible electrical cable designed for low-voltage applications up to 300/300V. It features three conductors made of stranded electrolytic copper (Class 5 flexibility) with a cross-section of 1.5 mm² each. The cable is insulated and sheathed with PVC, offering good resistance to abrasion and moisture. With a maximum operating temperature of +70°C and flame retardancy per PN-EN 60332-1-2, it is suitable for indoor use in household appliances, office machines, and light portable tools.

What stands out

• Flexible stranded copper conductors – Class 5 stranding ensures easy routing and repeated bending without damage.
• Colour-coded cores – Brown, blue, and green/yellow for quick identification of live, neutral, and earth.
• Flame-retardant PVC – Meets PN-EN 60332-1-2, reducing fire propagation risk.
• Wide temperature range – Operates from -5°C (fixed installation) to +70°C, with short-circuit tolerance up to +160°C.

Technical details

• Cable type: OMY (PN-EN 50525-2-11)
• Number of cores: 3
• Conductor cross-section: 1.5 mm²
• Rated voltage: 300/300 V
• Conductor material: Electrolytic copper, stranded (Class 5)
• Insulation: PVC
• Sheath: PVC, black
• Outer diameter: approx. 7.0 mm
• Max. conductor temperature: +70°C
• Min. operating temperature: +5°C (flexible use), -5°C (fixed installation)
• Short-circuit temperature: +160°C (max 5 s)
• Flame retardancy: Yes, PN-EN 60332-1-2
• Standards: PN-EN 50525-2-11, PN-EN 60228

Our verdict

A reliable and flexible PVC cable for low-voltage indoor applications. Its stranded copper conductors and flame-retardant sheath make it a safe choice for connecting portable appliances and office equipment.
