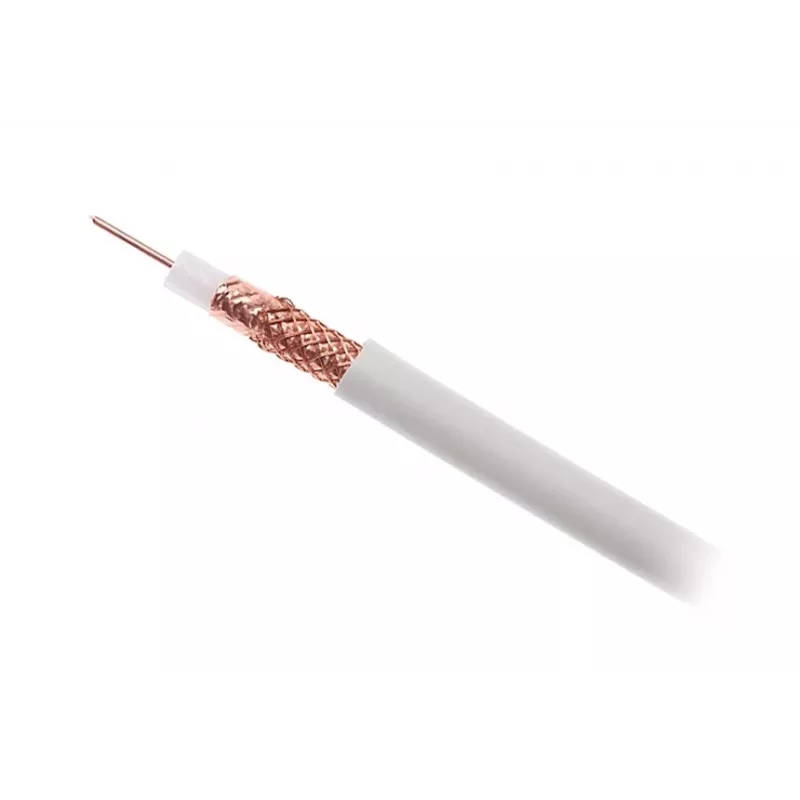

Cable coaxial ELEKTROKABEL YWDXpek 75-1.05/4.8 K-1000 100m

The ELEKTROKABEL Coaxial Cable YWDXpek 75-1.05/4.8 K-1000 is a high-quality 75 Ohm coaxial cable designed for reliable signal transmission in various applications. With a length of 100 meters, this cable is ideal for professional installations requiring long runs without signal degradation.

Advantages

This coaxial cable features a double shielding (aluminium foil and copper braid) providing excellent protection against electromagnetic interference. The foamed polyethylene dielectric ensures low signal loss, while the PVC jacket offers durability and flexibility. The 75 Ohm impedance is perfectly suited for video and audio applications.

Suitable for

• DVB-T and DVB-S television systems
• CCTV camera installations
• Radio and analog/digital TV
• Broadband and satellite communications

Key specifications

• Cable type: Coaxial Cable
• Impedance: 75 Ohm
• Length: 100 m
• Inner conductor: Copper (Cu), diameter 1.05 mm
• Outer diameter: 4.8 mm
• Dielectric: Foamed Polyethylene (FPE)
• Shielding: Double (Aluminium Foil + Copper Braid, 60% coverage)
• Jacket: PVC, White
• Attenuation: 6.5 dB/100m @ 100 MHz, 20.5 dB/100m @ 1000 MHz
• Velocity of Propagation: 82%
• Capacitance: 52 pF/m
• Operating temperature: -20°C to +70°C
• RoHS compliant

Recommendations

For optimal performance, use with appropriate connectors (not included) and ensure proper termination. This cable is suitable for both indoor and outdoor installations when protected from direct exposure.
