Elemento de luz fija WERMA Signaltechnik KombiSIGN 71, carcasa negra, lente transparente, policarbonato, IP65, 70 mm de diámetro, 66 mm de altura, casquillo E14, máx. 7 W, 640.800.00

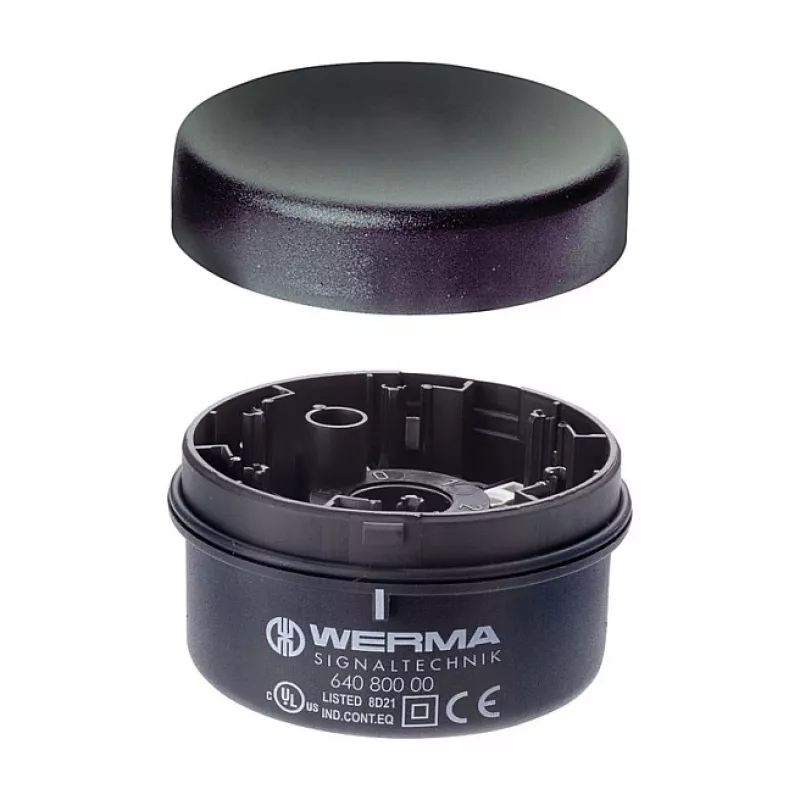

The WERMA Signaltechnik KombiSIGN 71 Permanent Light Element (model 640.800.00) is a robust and versatile signaling component designed for industrial applications. Featuring a black polycarbonate housing and a clear lens, this permanent light element provides reliable visual indication in demanding environments. With an IP65 protection rating, it is dust-tight and protected against water jets, making it suitable for outdoor and harsh indoor conditions. The bayonet mounting system ensures quick and secure installation without tools. The E14 socket accommodates bulbs up to 7W, allowing customization of light intensity and color based on the bulb chosen. Operating temperature range from -30°C to +60°C ensures performance in extreme climates. Certifications include CE, UL, and GOST, confirming compliance with international standards.

Advantages

• Robust polycarbonate construction for durability and impact resistance
• IP65 protection for use in dusty and wet environments
• Bayonet mounting for fast, tool-free installation
• Wide operating temperature range (-30°C to +60°C)
• Compatible with standard E14 bulbs up to 7W for flexible signaling
• Multiple international certifications (CE, UL, GOST) ensure global acceptance

Suitable for

• Industrial automation and machinery status indication
• Process control panels and operator interfaces
• Safety and warning systems in factories and warehouses
• Outdoor signaling applications requiring weather resistance
• Transportation and logistics equipment

Key specifications

• Product Type: Permanent Light Element
• Series: KombiSIGN 71
• Housing Color: Black
• Light Color: Clear (lens)
• Material: Polycarbonate (PC)
• Mounting Type: Bayonet
• Protection Rating: IP65
• Operating Temperature: -30°C to +60°C
• Bulb Type: E14 (max. 7W)
• Voltage Compatibility: Depends on base and bulb (e.g., 12V, 24V, 115V, 230V AC/DC)
• Diameter: 70 mm
• Height: 66 mm
• Weight: 81 g (net), 99 g (gross)
• Certifications: CE, UL, GOST

Recommendations

For optimal performance, select an E14 bulb with appropriate voltage and wattage (max 7W) for your application. The clear lens allows for any bulb color; choose red, green, yellow, blue, or white as needed. Ensure the mounting surface is clean and dry before installation. This permanent light element is ideal for creating custom signaling solutions in combination with other KombiSIGN 71 modules.
