Elo Touch Solutions 1093L – Monitor LCD de 10,1 pulgadas con entradas VGA y HDMI. Utiliza tecnología táctil USB y no necesita fuente de alimentación externa, lo que…

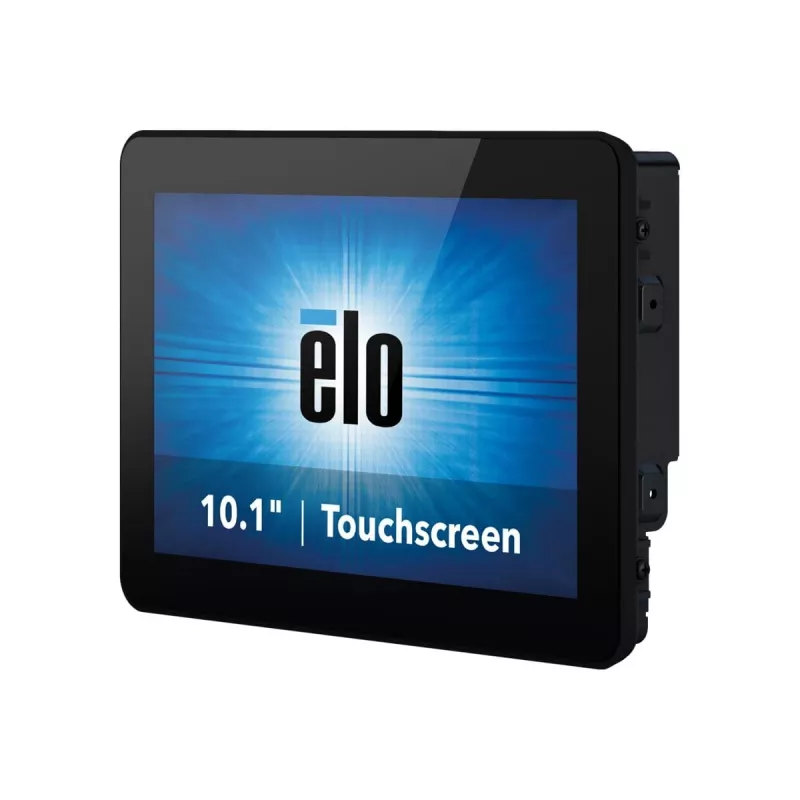

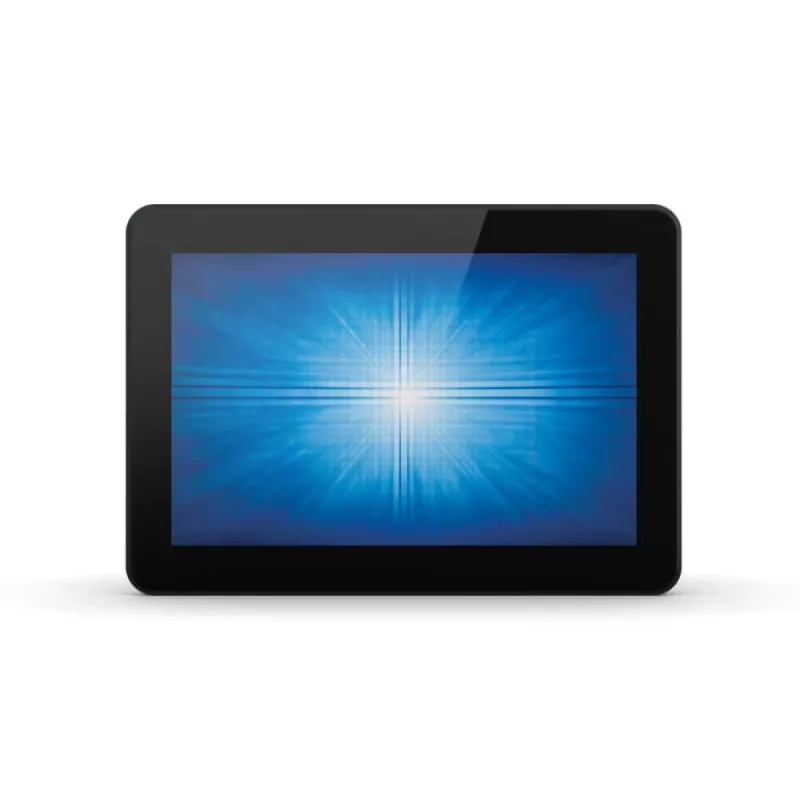

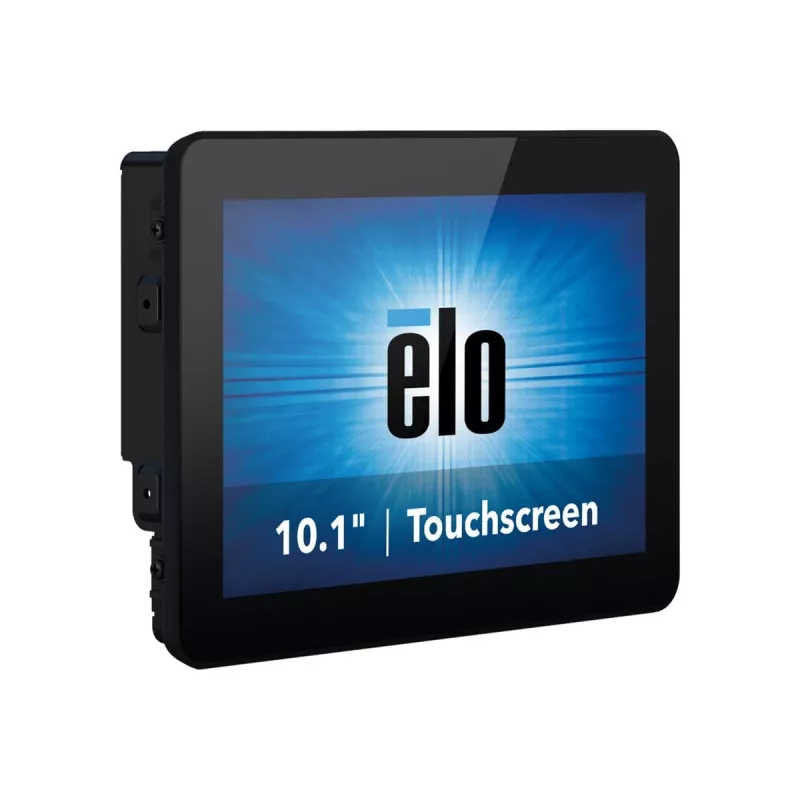

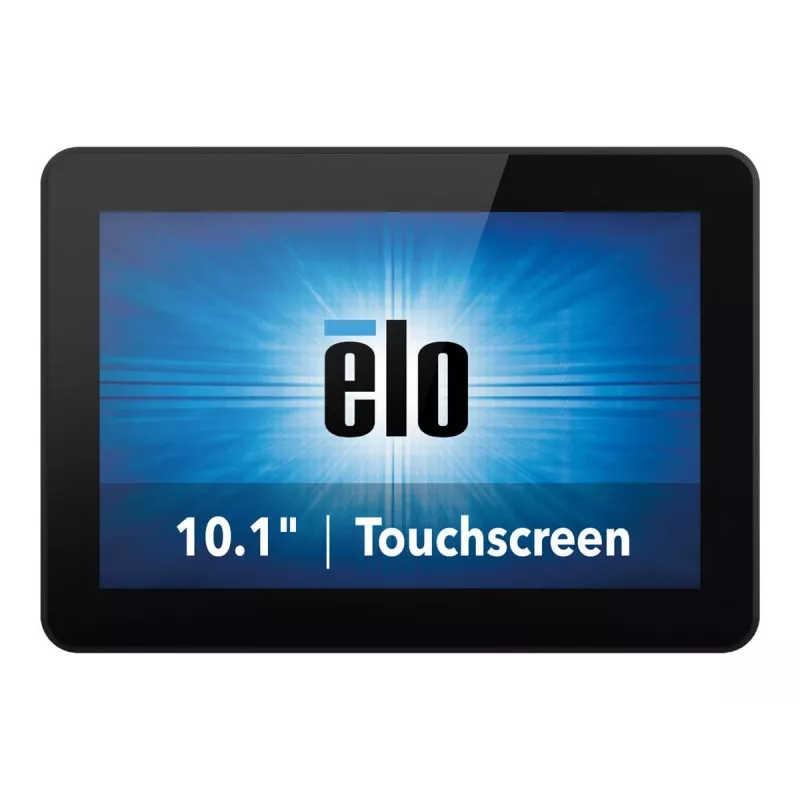

The Elo 1093L is a 10.1-inch open-frame LCD touchscreen engineered for commercial and industrial applications. Its slim, compact design uses an energy-efficient LED backlight to reduce power consumption and heat. The display is built for reliable, drift-free multi-touch performance and high image clarity, making it suitable for kiosks, retail self-service, casino and amusement, and industrial automation systems.

Advantages

The open-frame touchscreen is sealed against dirt, dust and liquids for easier integration into enclosures, and projected capacitive (PCAP) models can achieve an IP65 rating on the front side. Elo controls the design and tooling to ensure consistent long-term availability. The TouchPro™ PCAP two-glass (2GS) option provides a tablet-like 10-touch experience plus two-touch thru-glass functionality, supporting single or dual latex gloves and cloth gloves. The product is commercial-grade, covered by a three-year standard warranty, and subjected to extensive reliability testing to deliver long mean time between failures.

Key specifications

• Display size: 10.1 inches
• Touch technology: Projected capacitive (PCAP) TouchPro™ 10-touch; two-touch thru-glass (2GS)
• Front ingress protection (PCAP models): up to IP65
• Impact and safety: Meets UL-60950 and IK-07 impact testing for 2GS

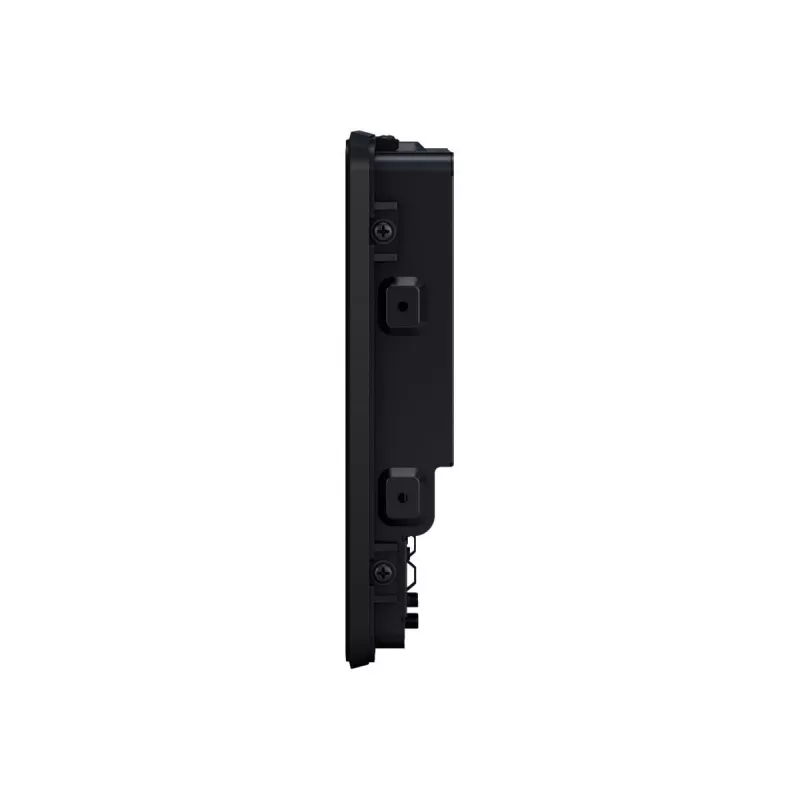

• Mounting: Flush mounting brackets on all four sides; rear 75 mm VESA mount
• Video interfaces: DisplayPort and VGA
• Warranty: Three-year standard warranty

How to use

Install the open-frame display into the kiosk or enclosure using the flush mounting brackets or the rear 75 mm VESA mount. For sealed installations requiring ingress protection, choose the PCAP model and follow enclosure sealing instructions to maintain front-side IP65 protection. Connect video via DisplayPort or VGA and install Elo drivers and software so touch functionality integrates correctly with the host system. The TouchPro™ 2GS option supports multi-touch gestures and thru-glass use with gloves; verify driver settings for glove operation if required.

Recommendations

For reliable long-term performance in public or industrial environments, select the PCAP 2GS option when optical clarity and thru-glass glove use are required. Use the flush mounting and proper sealing methods to protect against dust and liquids, and keep firmware and drivers updated with Elo-provided releases.
