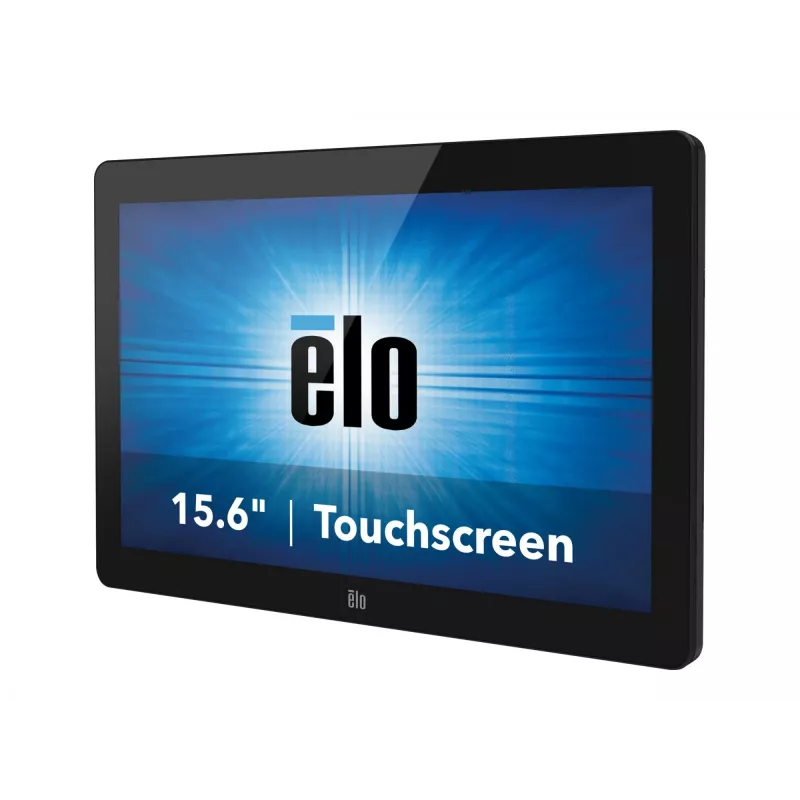

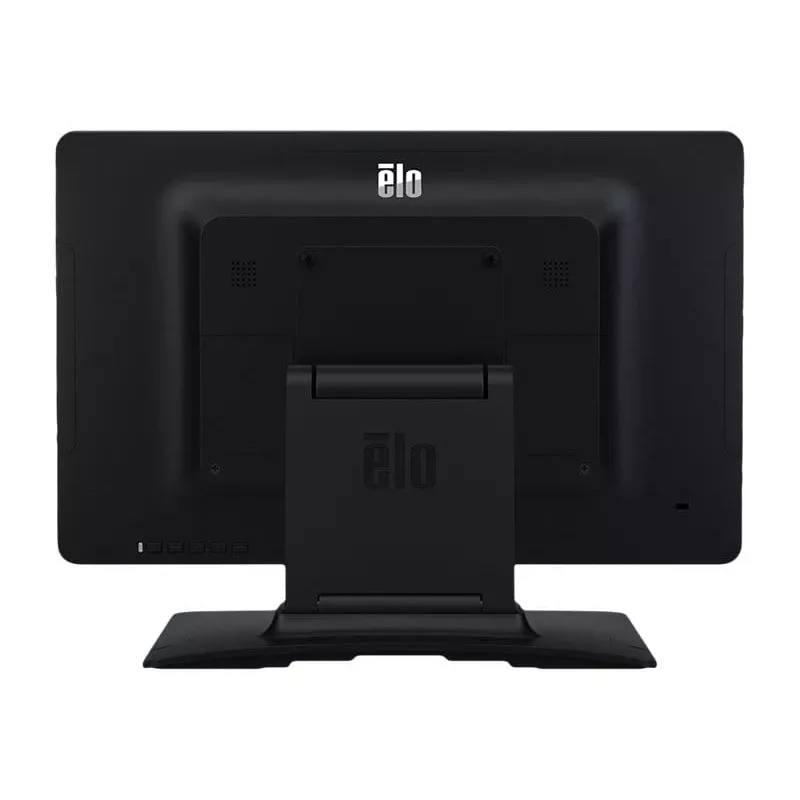

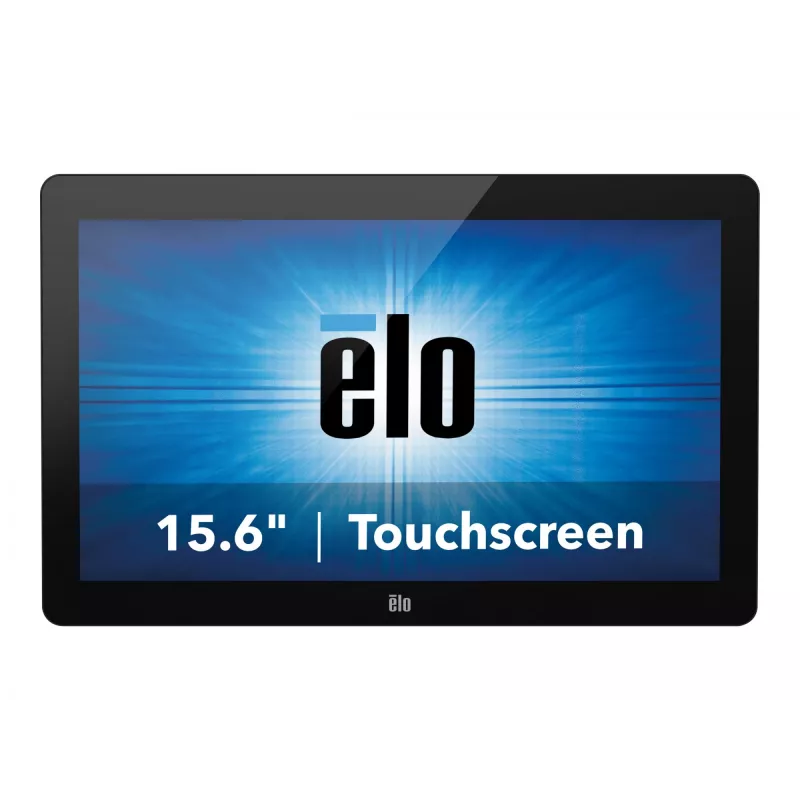

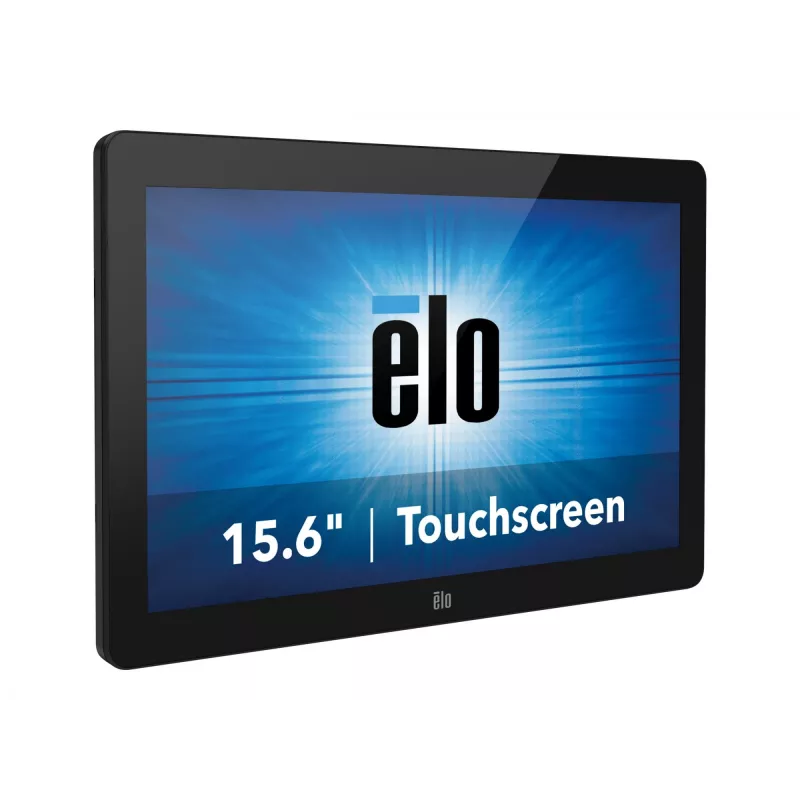

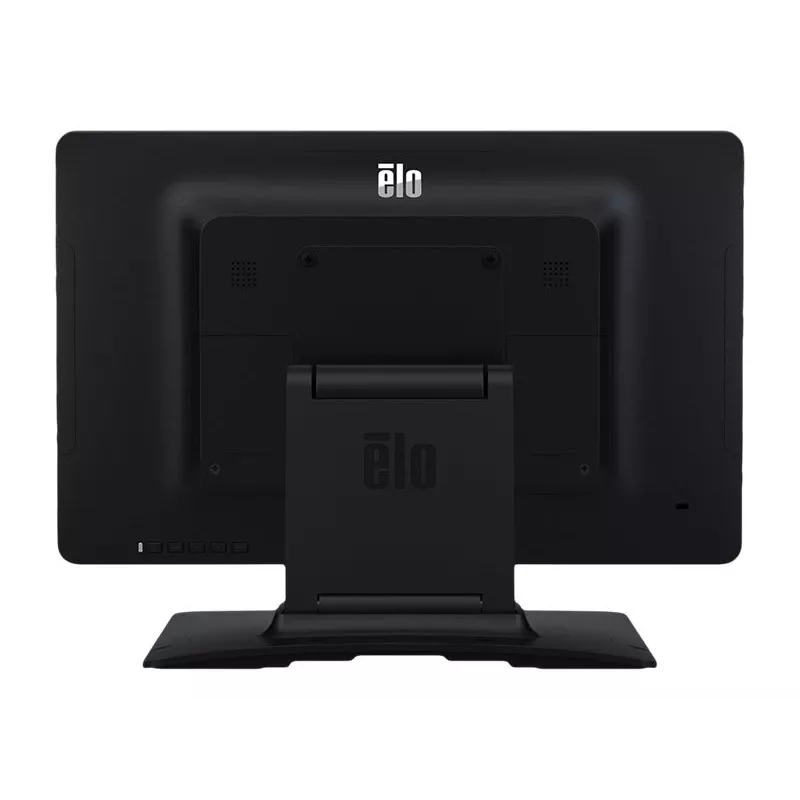

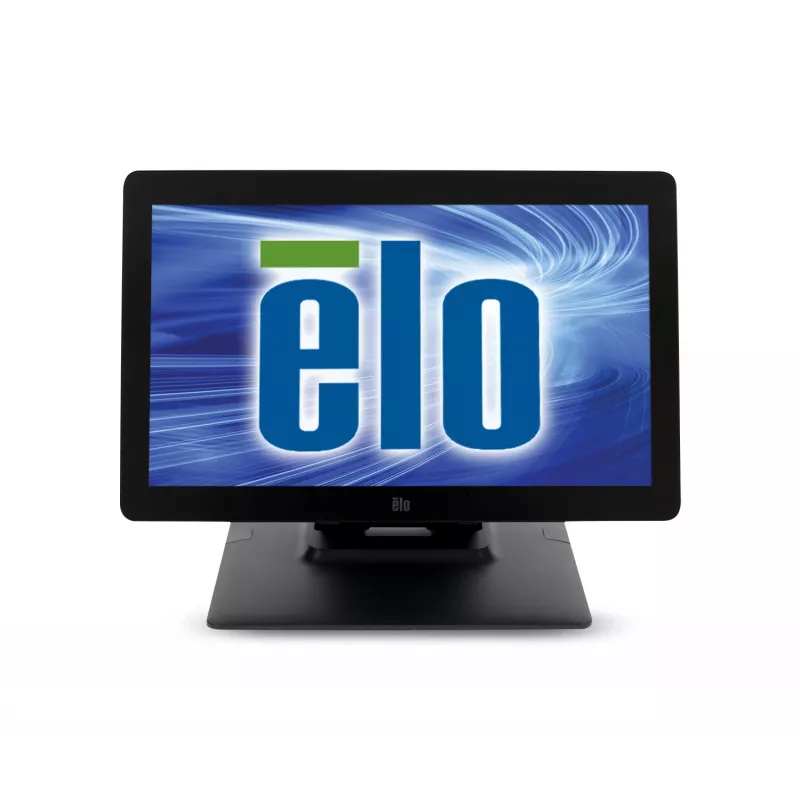

Monitor 1502L 15,6" WLCD HD MVGA HDMI PC MTCH USB WR 0-BZL AG BLK

The Elo M-Series 1502L 15.6" widescreen LED touch monitor is a compact interactive display for point-of-sale and information applications. It provides a slim, zero-bezel design with edge-to-edge glass, an anti-glare surface and projected capacitive (PCAP) IntelliTouch Pro touch technology supporting up to 10 simultaneous touches. The 1502L is built for continuous public use in retail and service environments and offers flexible mounting options including desktop, VESA wall and pole mounts. Optional colour-matched accessories such as a magnetic stripe reader (MSR), customer display, barcode scanner and NFC adapter can be attached without external brackets.

Advantages

The monitor combines a full-featured touch interface with a compact 15.6" widescreen format that fits limited spaces while providing clear visuals. Edge-to-edge glass and anti-glare coating improve legibility under shop lighting. Multiple mounting choices and optional integrated accessories simplify installation and create a tidy, professional point-of-sale setup. The PCAP touch supports multi-touch gestures and durable operation suitable for high-use retail locations.

Suitable for

• Point-of-sale terminals in retail and hospitality
• Interactive information kiosks and customer-facing displays
• Compact desktop touchscreen workstations
• Self-service and transactional applications with card reader or NFC

Key specifications

• Display diagonal: 15.6"
• Resolution: 1366 x 768 (HD MVGA)
• Touch technology: IntelliTouch Pro projected capacitive (PCAP), 10-touch
• Interfaces: HDMI, USB
• Response time: 10 ms
• Contrast ratio (typical): 600:1
• Colour: Black

How to use

Connect the monitor to a host device using the HDMI video input and the USB cable for touch data. Mount the display on a desktop stand or attach it to a VESA-compatible wall or pole mount according to the installation location. If required, install optional accessories (MSR, customer display, barcode scanner, NFC adapter) in the designated accessory slots; these are designed for user installation without extra brackets. Calibrate touch input if necessary through the host system settings.

Recommendations

Place the monitor where glare from direct light is minimised to maintain touch accuracy and screen legibility. Regularly clean the glass surface with a soft, lint-free cloth and a manufacturer-approved cleaner. For high-traffic installations, verify accessory compatibility with your POS software and perform periodic touch calibration.
