Embellecedor frontal de E/S DeLOCK 63962

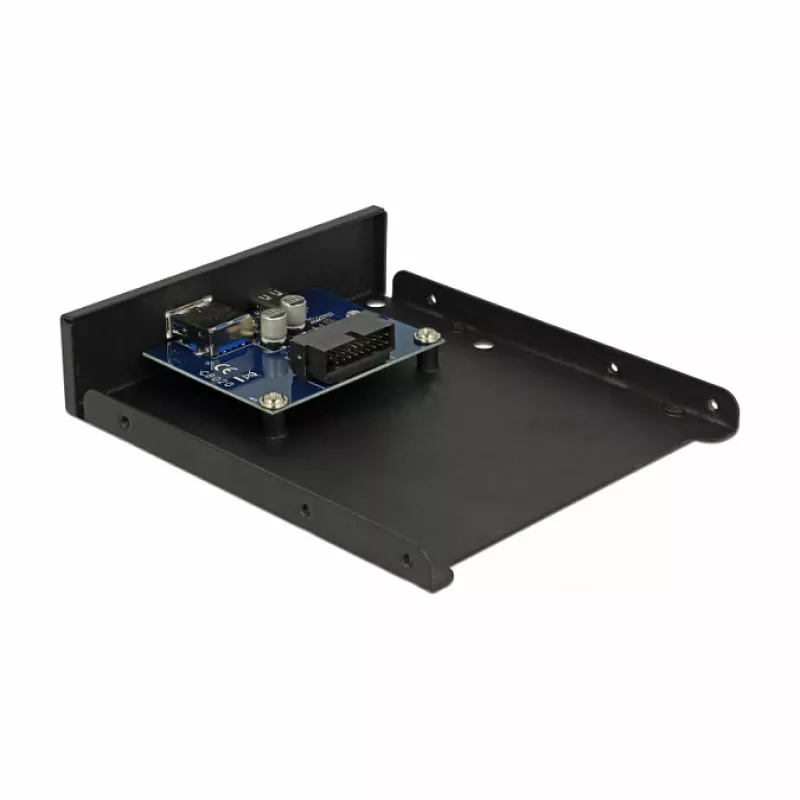

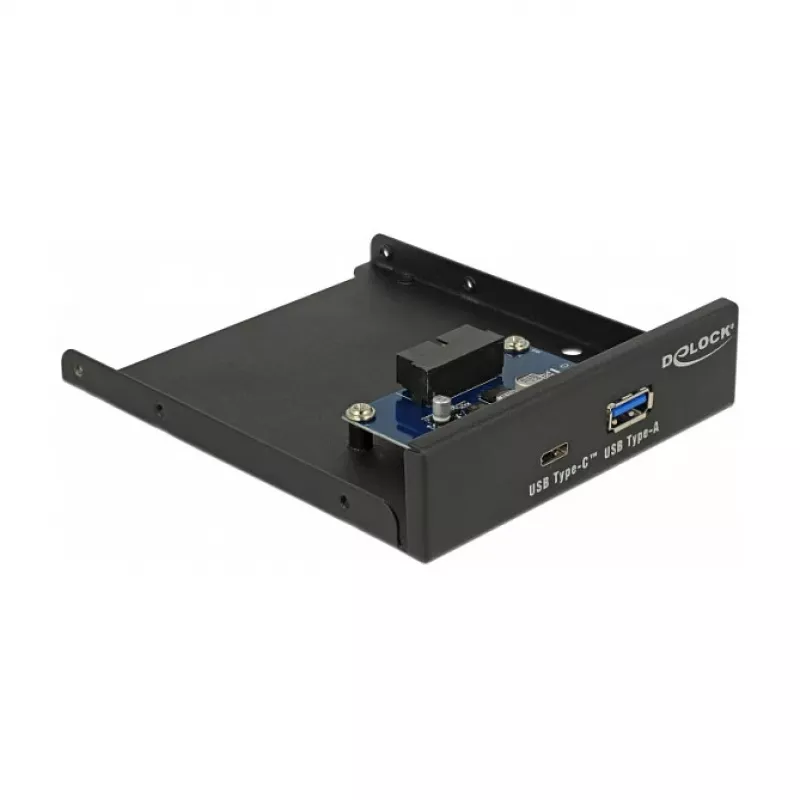

This USB 3.0 front panel by DeLOCK is designed for installation into a free 3.5" drive bay and connects to an internal USB 3.0 header. It provides one USB Type-C and one USB Type-A port to extend a computer's front I/O options while maintaining a compact black design with dimensions of 102 mm × 95 mm × 26 mm.

Advantages

The panel offers easy internal connection to a USB 3.0 pin header and adds both a USB-C and a USB-A interface for greater front-accessible connectivity. Its compact 3.5" bay form factor and black finish allow simple integration into most desktop cases without occupying additional external space.

Suitable for

• Adding front access USB Type-C and Type-A ports to a desktop PC
• Installation into a free 3.5" drive bay to expand I/O options
• Systems with an available internal USB 3.0 header

Key specifications

• Brand: DELOCK
• Model / MPN: 63962
• EAN: 4043619639625
• Interfaces: 1 × USB Type-C, 1 × USB Type-A ( USB 3.0 )
• Installation: fits 3.5" drive bay, internal USB 3.0 header connection
• Colour: Black
• Dimensions: 102 mm (W) × 95 mm (D) × 26 mm (H)
• Made in China

How to use

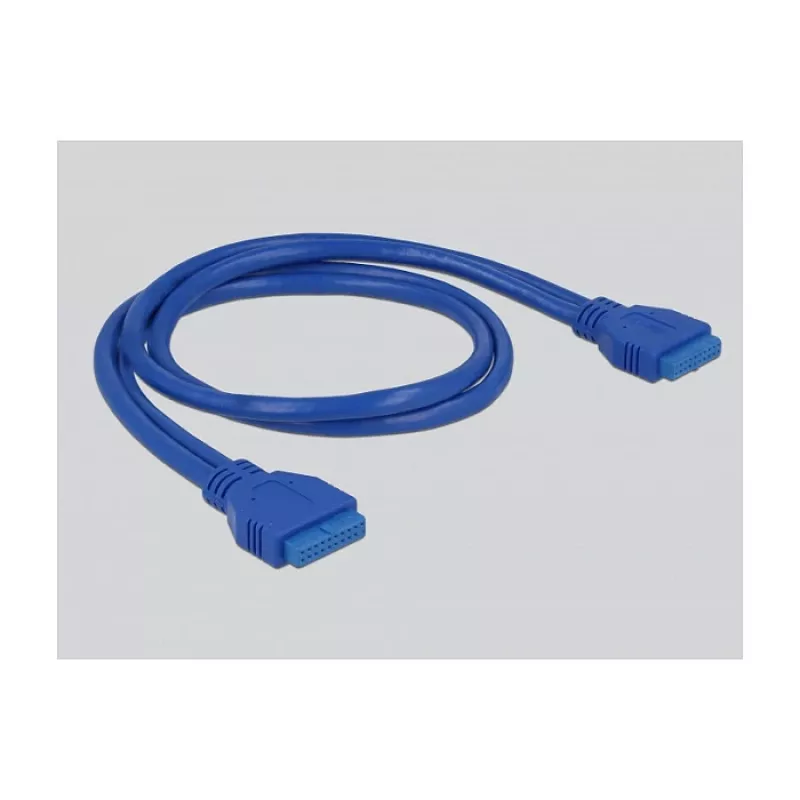

Turn off and unplug the PC, open the case and insert the panel into a free 3.5" bay. Secure the panel according to the case's mounting method, then connect the panel's internal cable to the motherboard's USB 3.0 header. Close the case, power on the system and the new front USB Type-C and Type-A ports will be available for device connection.

Recommendations

Ensure the motherboard has a free USB 3.0 internal header before installation. Use compatible USB 3.0 cables and devices to achieve optimal transfer speeds and avoid forcing connectors when plugging devices into the Type-C or Type-A ports.
