Emisor AV VivoLink VLHDMIEXT1-TV2 – entrada/salida HDMI sobre Cat5e, hasta 1920x1080, 120 m, cableado, negro

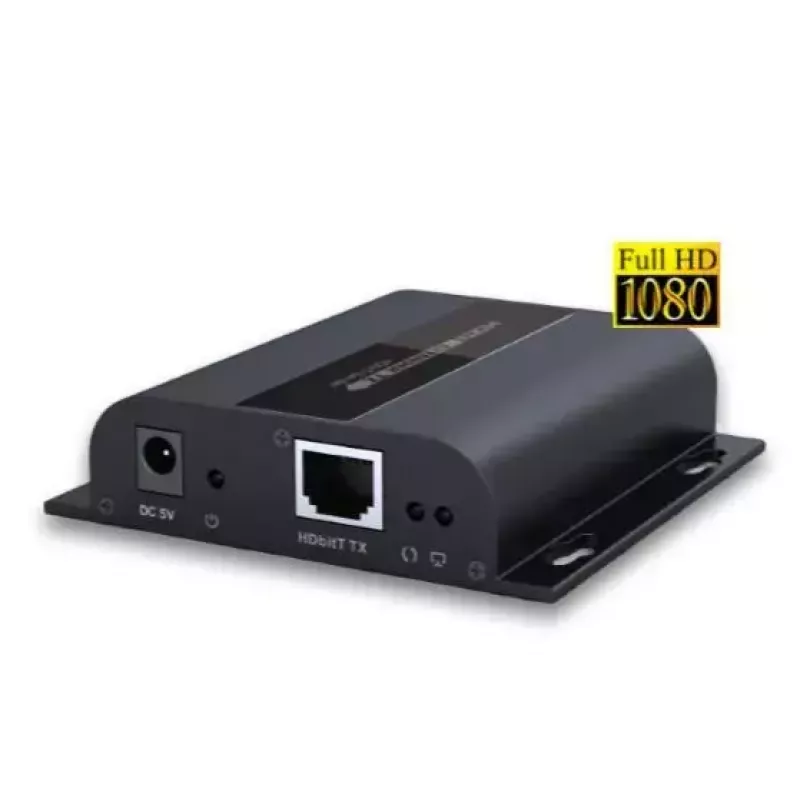

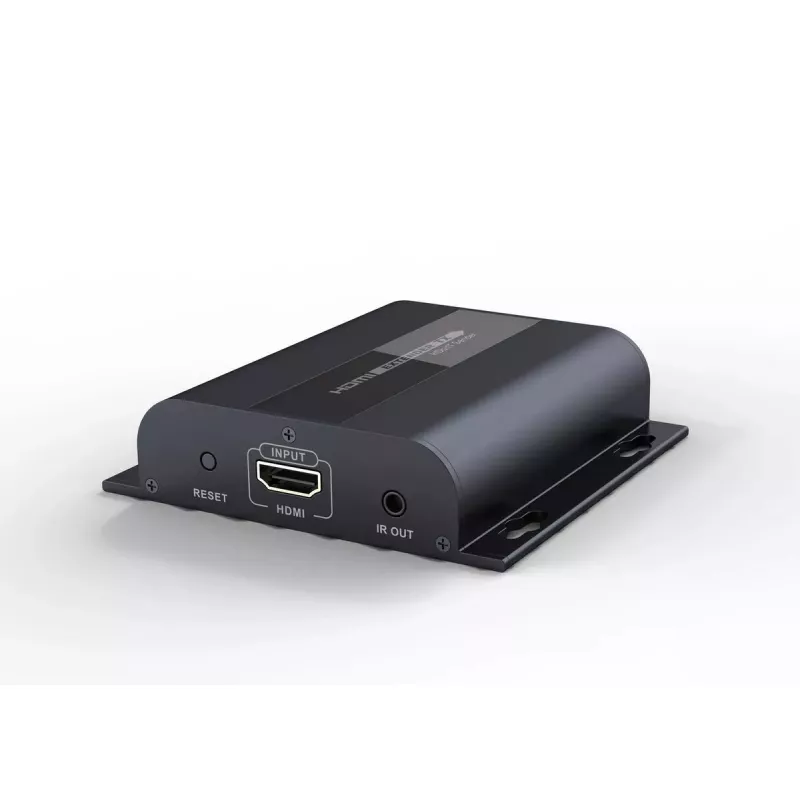

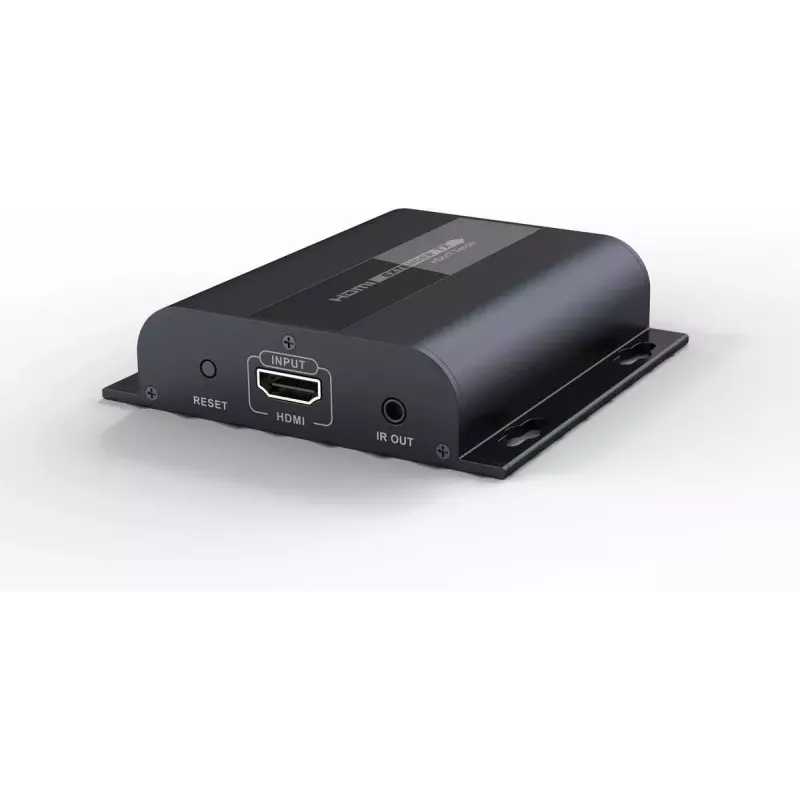

VivoLink VLHDMIEXT1-TV2 is a compact AV transmitter designed to extend HDMI video, audio and IR control signals over a single Cat5e/6 network cable. The unit supports one HDMI input and one HDMI output via RJ-45 and provides wired connectivity for remote displays and AV distribution. It supports up to 1920 x 1080 resolution at 60 Hz and can transmit up to 120 m in point-to-point installations. The black enclosure and small footprint make it suitable for discreet mounting in residential or commercial AV setups.

Advantages

The transmitter delivers full 1080P@60Hz video and audio over standard Cat5e/6 cabling, reducing the need for long HDMI runs. It includes IR pass-through so remote control signals are preserved between source and display. The device is power supplied via DC with a wide AC input range (100–240 V, 50–60 Hz) and can be integrated into larger systems using a Gigabit switch to distribute the signal to multiple receivers. The unit is lightweight and easy to install in tight spaces.

Suitable for

• Extending HDMI sources to a single remote display up to 120 m
• Connecting AV sources to information screens in shops, offices or public spaces
• Home AV installations where discrete, long-distance HDMI extension is required
• Multi-receiver IP distribution using a Gigabit switch (up to 253 receivers)

Key specifications

• Device type: AV transmitter with IR transmitter support
• HDMI inputs: 1
• HDMI outputs: 1 (via RJ-45 network link)
• Network ports: 1 RJ-45 input / 1 RJ-45 output for Cat5e/Cat6
• Maximum resolution: 1920 x 1080 (1080P@60 Hz)
• Maximum transfer distance: up to 120 m over single Cat5e/Cat6 cable
• Power: DC input, compatible with 100–240 V AC (50–60 Hz) supply
• Color: Black
• Weight: 0.206 kg
• Bandwidth per receiver: approximately 18 Mbit

How to use

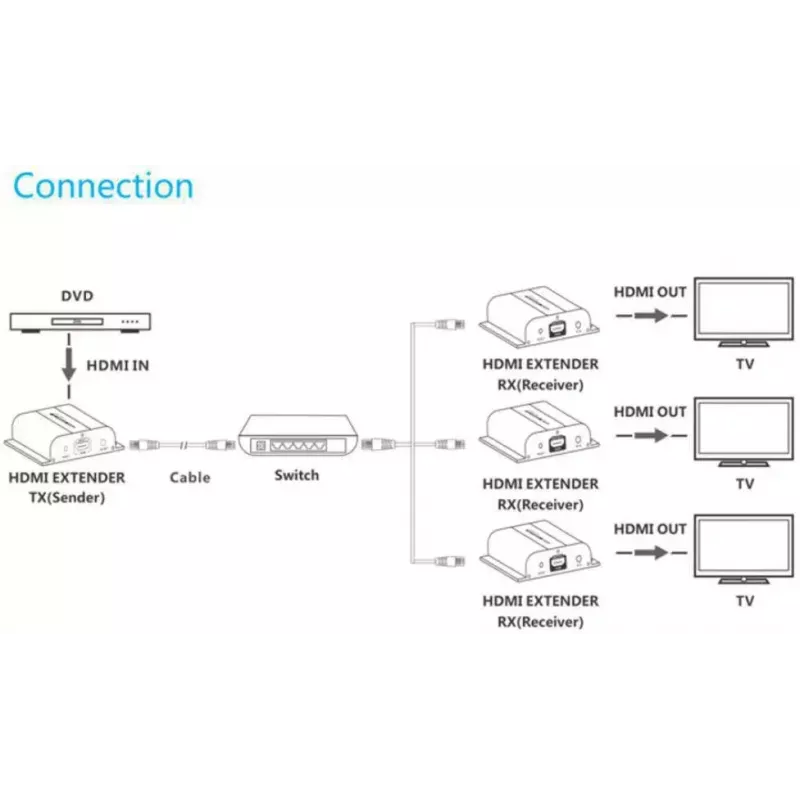

Connect the HDMI source to the transmitter's HDMI input and run a Cat5e/6 cable from the transmitter RJ-45 port to the receiver's RJ-45 port or to a Gigabit switch when distributing to multiple receivers. Connect power to the transmitter using the supplied DC adapter and ensure the AC power source is within 100–240 V, 50–60 Hz. If IR control is required, connect compatible IR emitters/receivers to the corresponding ports. Configure network addresses if needed for the local extender topology; typical default addresses referenced are TX: 192.168.1.210 and RX: 192.168.1.220 when used in managed setups.

Recommendations

For stable video and IR transmission, use high-quality Cat5e or Cat6 cable with proper terminations and avoid running the cable alongside high-power electrical lines. When distributing to multiple receivers, use a dedicated Gigabit switch and verify available network capacity; each receiver typically consumes about 18 Mbit. This unit is not compatible with HDBaseT receivers, so pair only with the matching VivoLink receiver model for correct operation.
