Equip 24-Port Cat.6 geschirmtes Patchpanel, Schwarz

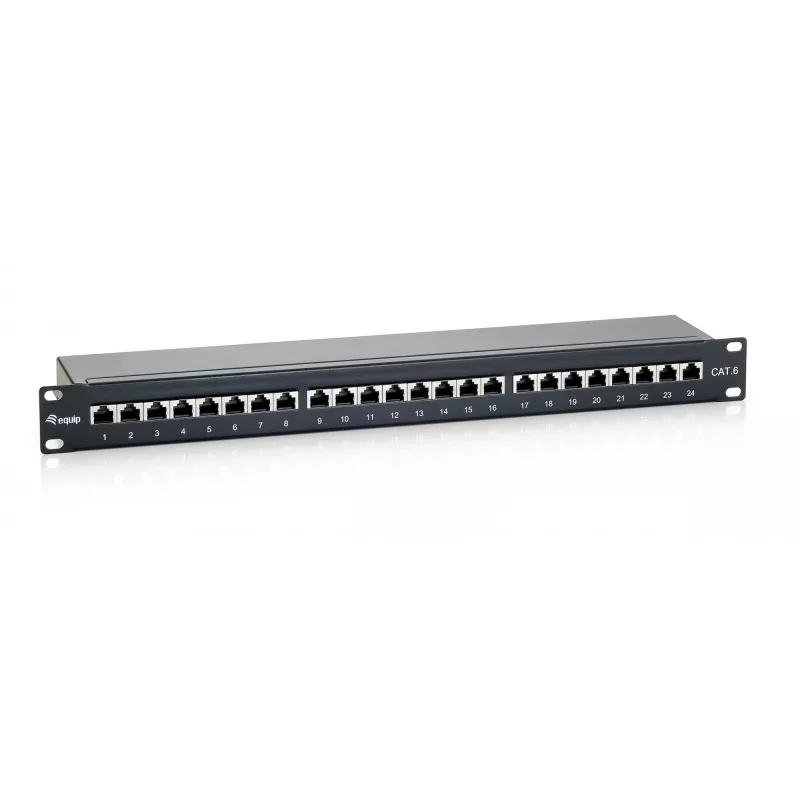

The equip® Patch Panel is a 19" 1U network distribution unit designed for organized cable routing and reliable strain relief. It supports both LSA and 110 termination standards and provides 24 shielded RJ45 ports with numbered port markings. The panel is compatible with Cat6 cable types and intended for rack mounting in a compact 1U form factor; its black finish suits professional installations.

Advantages

Shielded RJ45 ports reduce electromagnetic interference and, together with gold-plated contacts, ensure stable signal transmission. Numbered ports simplify identification during installation and maintenance. The integrated cable management system improves routing and strain relief, and the 1U size saves rack space while remaining compatible with standard 19" racks.

Suitable for

• Structured Cat6 network installations in server rooms and wiring closets
• Environments requiring shielded connections to limit EMI (industrial or dense electronic areas)
• Rack-mounted patching in small to medium business networks

Key specifications

• Ports: 24 shielded RJ45
• Standards supported: Cat6, LSA and 110 termination
• Mounting: 19" rack, 1U
• Contact plating: gold
• Colour: Black
• Dimensions (W×H×D): 483 × 44 × 109 mm
• Weight: 1.6 kg

How to use

Mount the patch panel in a standard 19" rack occupying 1U of space. Terminate the incoming Cat6 shielded cables to the rear LSA or 110 connectors according to the chosen wiring scheme (T568A/T568B). Connect shielded equip® patch cords to the front RJ45 ports for device connections. Use the integrated cable management features to route and secure cables, reducing strain on terminations.

Recommendations

For optimal performance, pair the patch panel with shielded Cat6 cabling and shielded patch cords from the same manufacturer, maintain consistent wiring standards across the installation, and ensure proper grounding of the shielding to avoid EMI issues.
