Equip 591911 caja de empalme de fibra óptica SC dúplex de 12 puertos, OS2, 1U, completamente equipada, gris

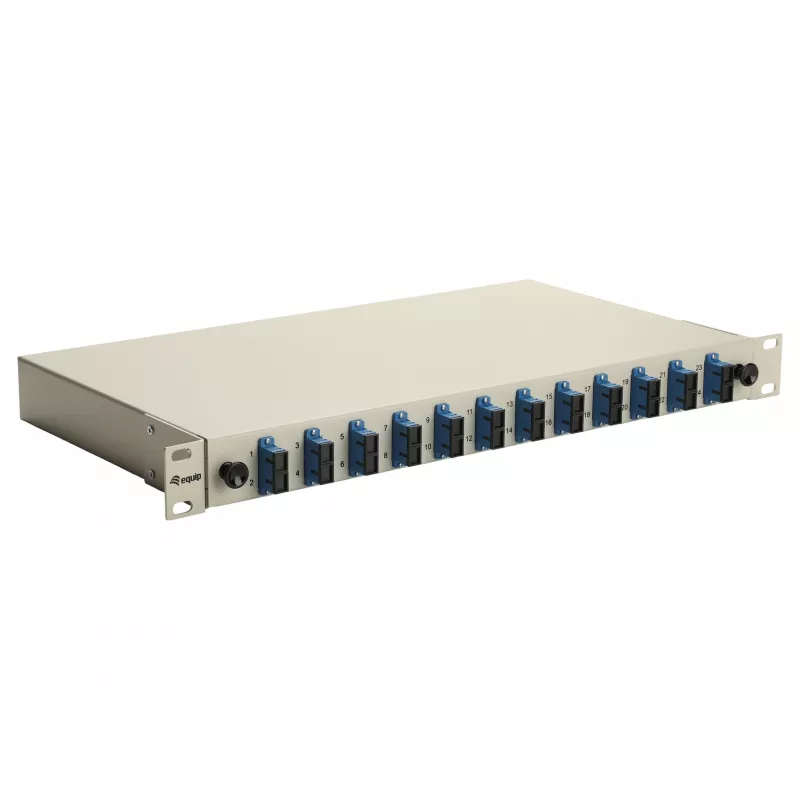

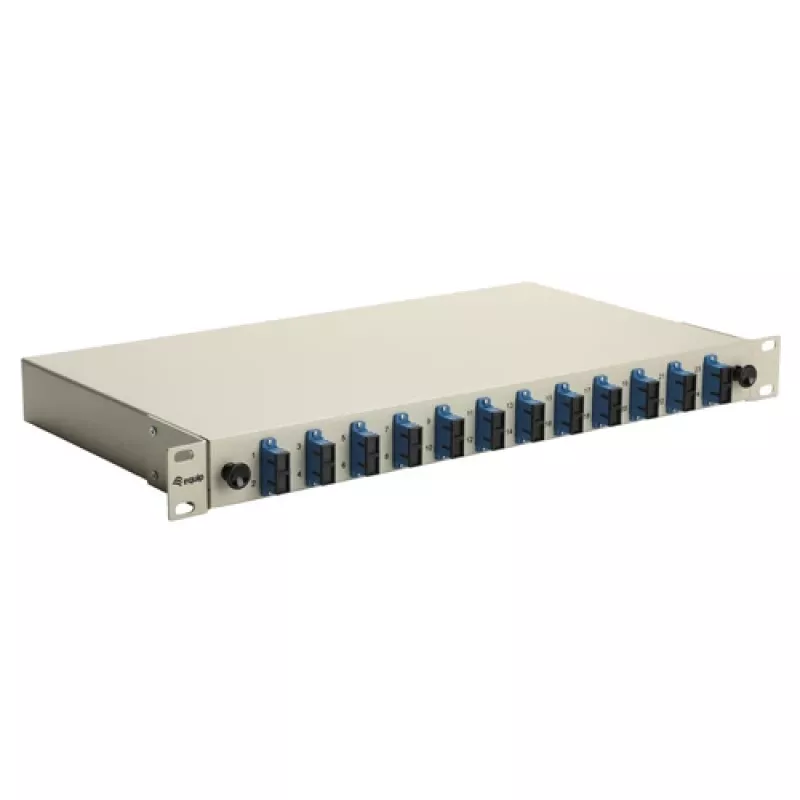

Maximise your data centre's potential with the Equip 591911 fibre optic splice box, a 12-port SC duplex unit that delivers exceptional capacity and precision in a compact 1U rack-mount format. Designed for single-mode OS2 networks, this fully equipped solution handles up to 24 fibres, making it an ideal backbone for structured cabling and high-speed enterprise installations.

Overview

The Equip 591911 is built for professional network environments where reliability and efficiency are non-negotiable. Its 19-inch form factor fits seamlessly into standard racks, while the cold-rolled steel construction ensures durability and long-term stability. Equipped with 12 SC duplex adapters and 12 pre-terminated 2-metre SC/UPC pigtails, this splice box is ready to use out of the box, saving valuable installation time and reducing the risk of errors.

What stands out

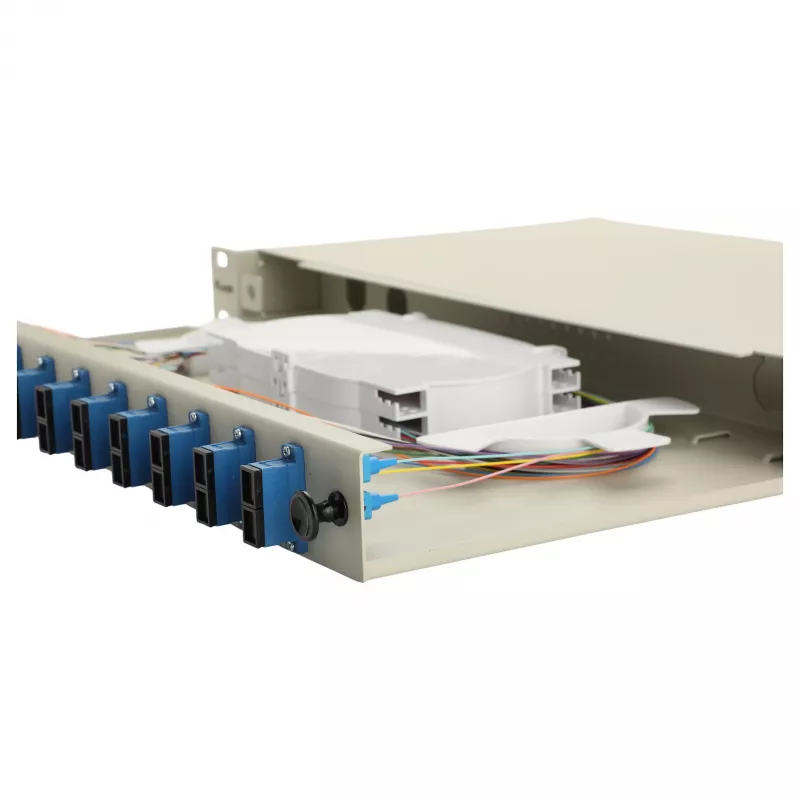

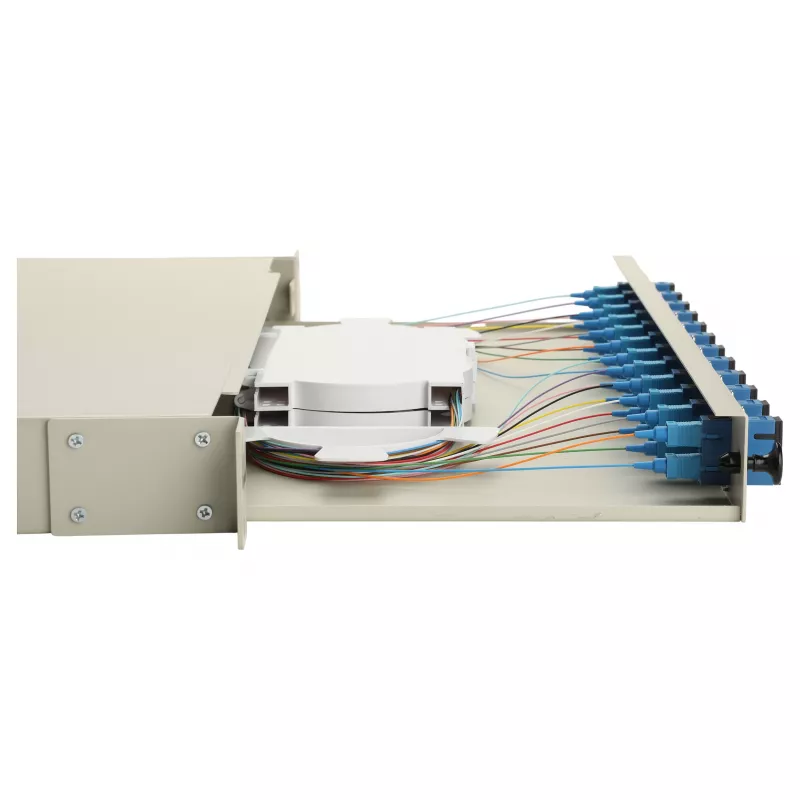

• Fully Equipped: Includes 12 SC duplex adapters, 12 pigtails (SC/UPC, OS2, 2m), splice tray, and heat shrink sleeves – no additional parts needed for splicing.
• High-Density Design: 12 ports in just 1U of rack space, supporting up to 24 fibres for efficient cable management.
• Single-Mode OS2: Optimised for long-distance, high-bandwidth applications with 9/125µm fibre, ensuring outstanding signal integrity.
• Robust Construction: Cold-rolled steel casing with a grey RAL 7035 finish, resistant to wear and tear in demanding data centre environments.

Technical details

• Port configuration: 12 x SC duplex (24 fibres)
• Fibre type: OS2 single-mode (9/125µm)
• Rack height: 1U (19-inch rack mount)
• Connector: SC duplex, female-female adapters
• Pigtails: 12x SC/UPC, OS2, 2 metres
• Includes: splice tray, heat shrink sleeves
• Material: Cold-rolled steel
• Colour: Grey (RAL 7035)
• Cable entry: Rear, multiple entry points
• Application: Indoor
• Compliance: RoHS, REACH

Our verdict

For network engineers seeking a dependable, high-quality splicing solution, the Equip 591911 nails it. The combination of OS2 performance, pre-fitted components, and sturdy 1U design makes it a smart choice for any fibre optic infrastructure project. Whether upgrading an existing rack or building from scratch, this splice box delivers professional-grade results with minimal fuss.
