Equip 650332 Soporte de pared para TV inclinable de 37"-75"

The equip® TV Wall Mount Bracket (model 650332) is a compact, sturdy wall bracket designed to securely mount LCD and LED TVs. It supports screens from 94 cm (37") up to 177.8 cm (70") and holds a maximum weight of 40 kg. The mount has a slim profile with a 5.3 cm distance to the wall and is compatible with VESA patterns from 200 x 200 mm to 600 x 400 mm.

Advantages

This TV mount offers reliable installation thanks to its robust construction and compatibility with common VESA standards. Its slim design keeps the screen close to the wall for a neat appearance, while the -12° to 12° tilt range enables simple viewing angle adjustment. The product is lightweight for its strength and is supplied with a graphic installation guide to simplify independent mounting.

Suitable for

• Mounting 37"–70" LCD or LED TVs
• Use on brick, concrete or wooden walls
• Rooms where a slim, low-profile installation is desired

Key specifications

• Brand: EQUIP
• Model: 650332
• Maximum screen size: 70" (177.8 cm)
• Supported screen sizes: from 94 cm (37")
• Maximum weight capacity: 40 kg

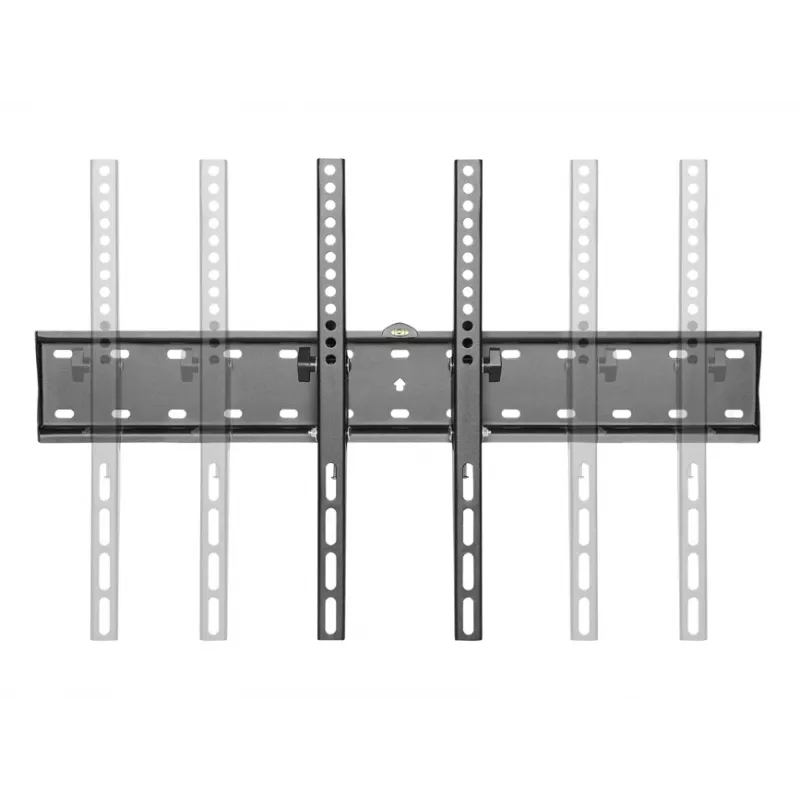

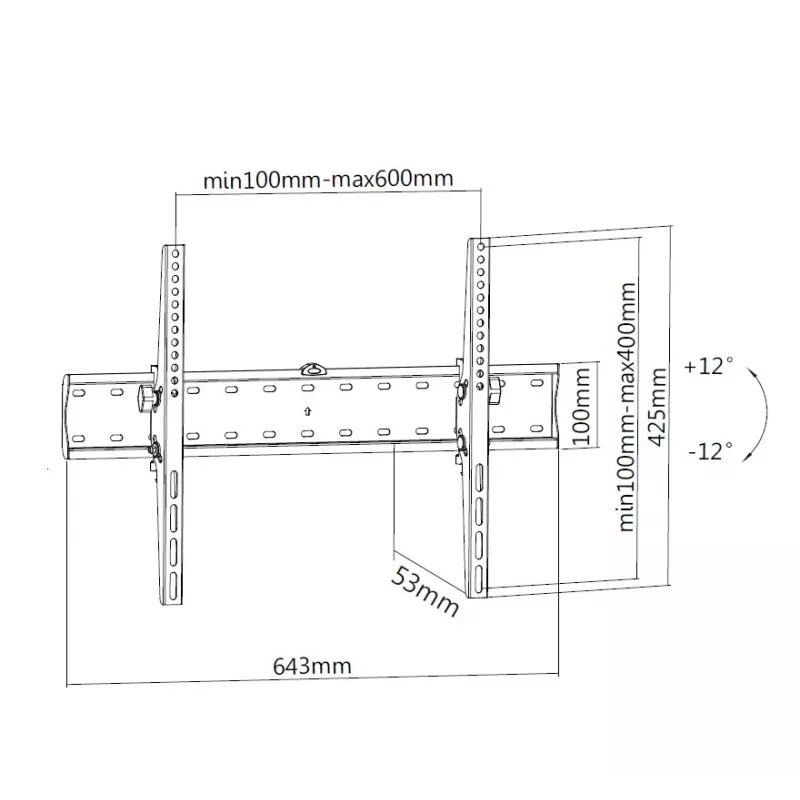

• VESA compatibility: 200 x 200 mm to 600 x 400 mm

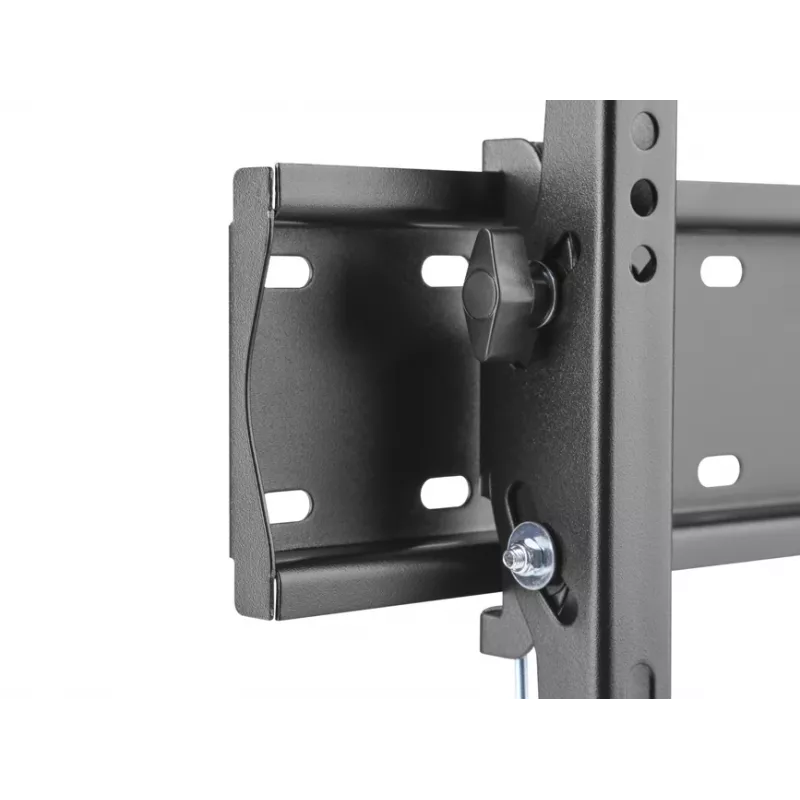

• Tilt range: -12° to 12°
• Distance to wall: 5.3 cm
• Product colour: Black
• Product weight: 1.82 kg

How to use

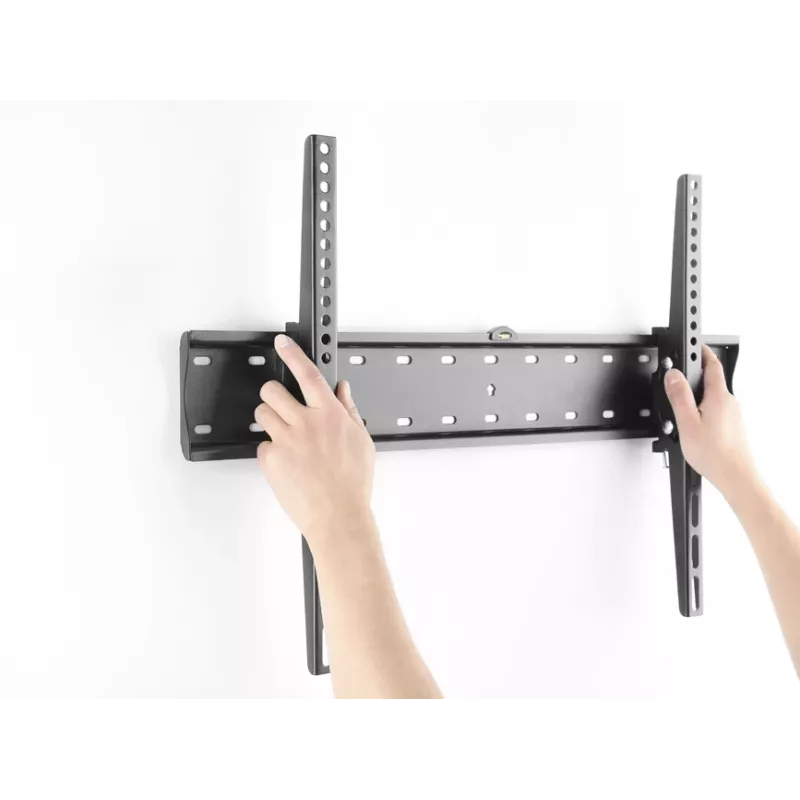

Follow the graphic guide included in the package to position and mark the mounting points on the wall, select suitable anchors for your wall material (brick, concrete or wood), attach the wall plate securely, and then fix the TV bracket to the display using the appropriate VESA screw pattern. After hanging the TV, adjust the tilt within the -12° to 12° range to achieve the desired viewing angle and tighten all fasteners.

Recommendations

Check the TV's VESA pattern and weight before installation, use screws and wall anchors appropriate for your wall type, and tighten fittings according to the manufacturer's instructions. If unsure about wall strength or complex installations, consult a qualified installer.
