Equip 650334 Soporte de pared para TV de perfil bajo de 37"-75"

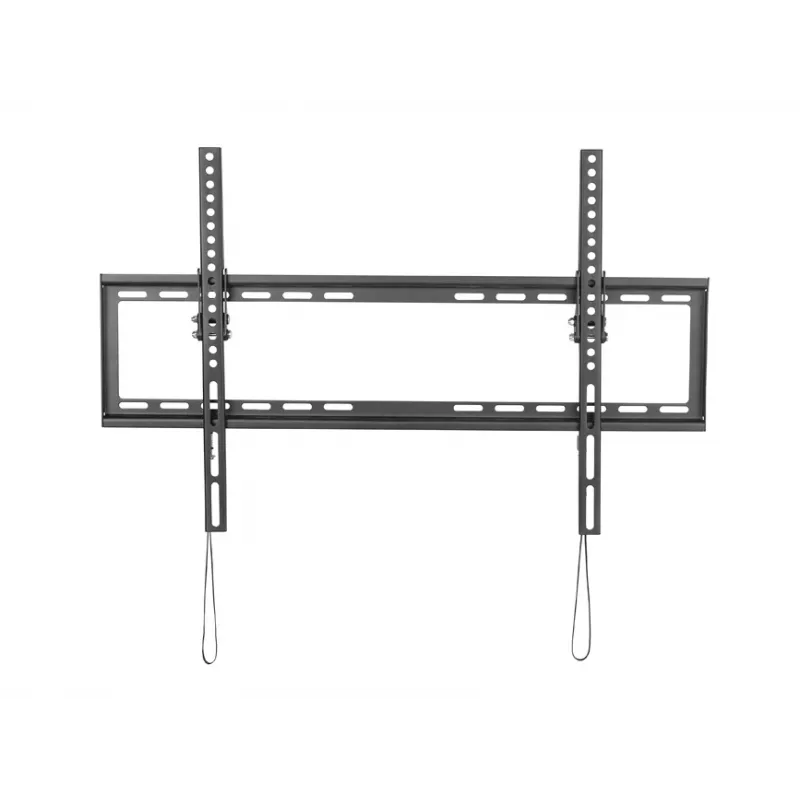

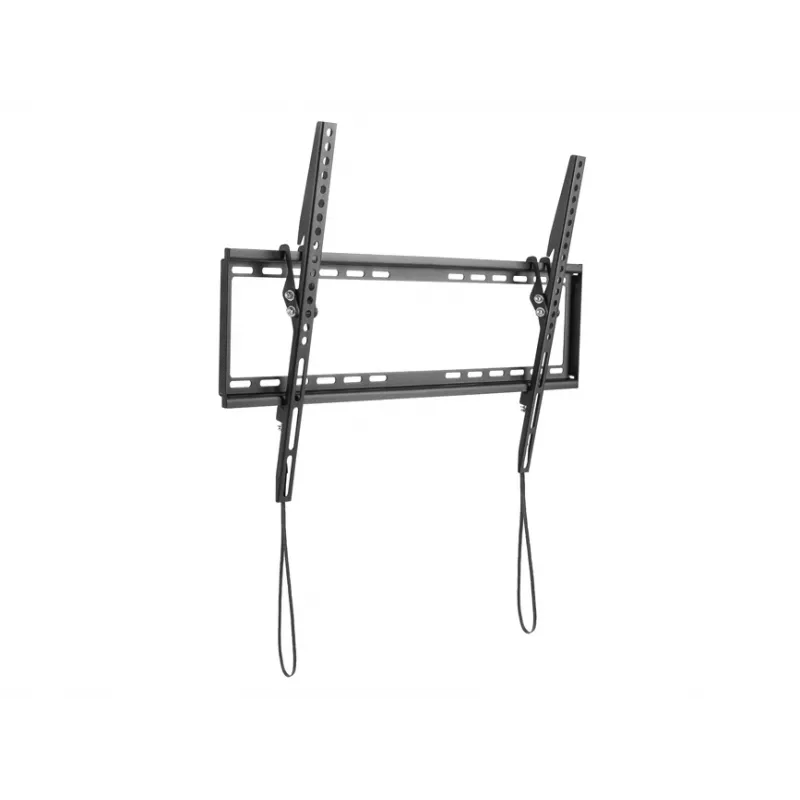

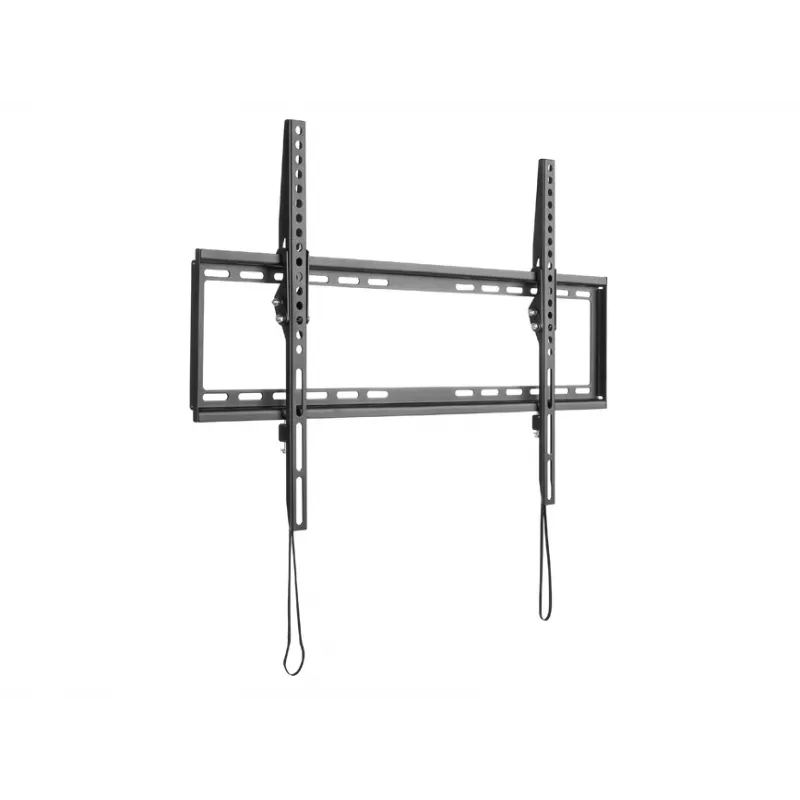

The Equip TV Wall Mount Bracket (model 650334) is a compact low-profile mounting solution for flat-panel TVs and LCD screens. It is designed for displays from 37" to 75" with a maximum weight capacity of 35 kg and supports VESA patterns from 200 x 200 mm up to 600 x 400 mm. The bracket sits 2.05 cm from the wall and is supplied with a graphic installation guide for straightforward single-person installation. The mounting hardware is suitable for common wall materials such as brick, concrete and wood.

Advantages

This low-profile TV wall mount offers a slim 2.05 cm distance from the wall while supporting screens up to 35 kg and VESA 600 x 400, combining minimal visual impact with secure attachment. The included graphic guide simplifies installation and the bracket’s construction fits major wall types including brick, concrete and wooden studs. The black finish integrates with most TV designs.

Suitable for

• Mounting a single flat-panel TV or LCD from 37" to 75"
• Rooms with space-saving requirements where a low-profile mount is preferred
• Walls made of brick, concrete or wood stud framing

Key specifications

• Model: Equip 650334
• Supported screen size: 37"–75"
• Maximum weight capacity: 35 kg
• Maximum VESA: 600 x 400 mm (supports 200 x 200 mm to 600 x 400 mm)

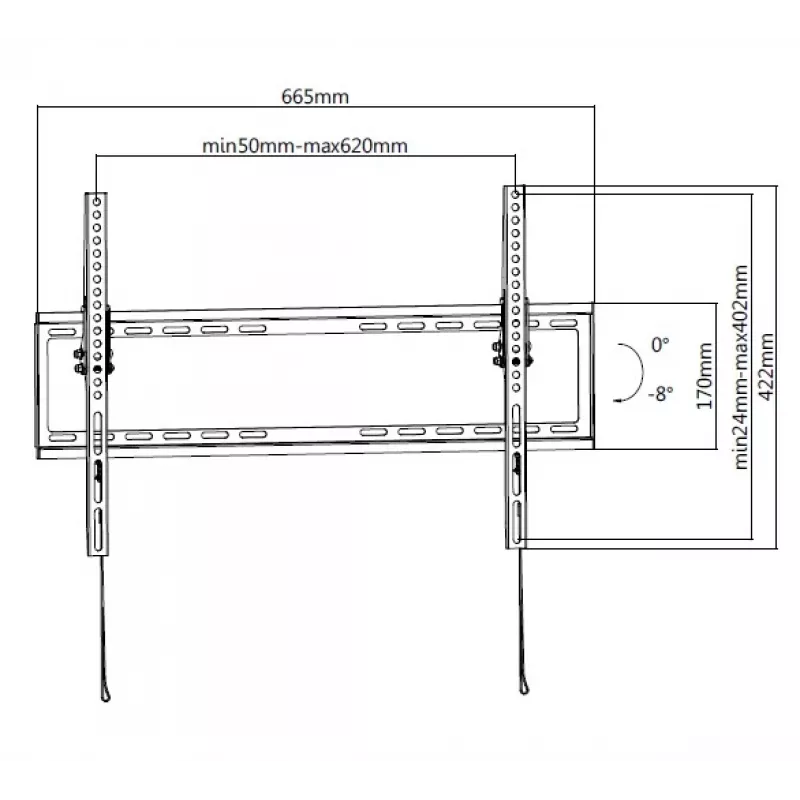

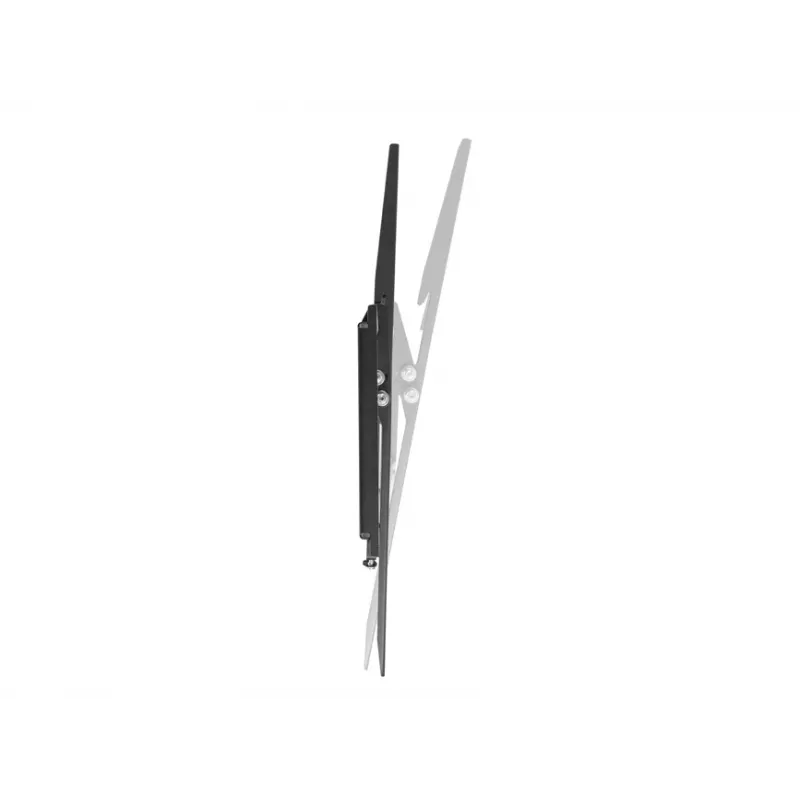

• Tilt range: -8° to 0°
• Distance to wall: 2.05 cm
• Number of displays supported: 1
• Product colour: Black
• Product weight: 1.35 kg

How to use

Choose a suitable mounting location on a brick, concrete or wooden stud wall and verify the VESA pattern and weight of your TV match the mount specifications. Use the graphic guide included in the package to mark drill points, install the appropriate anchors or screws for your wall type, attach the bracket to the wall, then fix the TV to the bracket following the VESA holes. Check that all fasteners are tightened and verify the tilt adjustment (between -8° and 0°) to achieve the desired screen angle.

Recommendations

Ensure the wall construction can support the combined weight of the mount and TV; use suitable anchors for brick or concrete and secure studs for wooden walls. If unsure about wall type or installation, consult a qualified installer.
