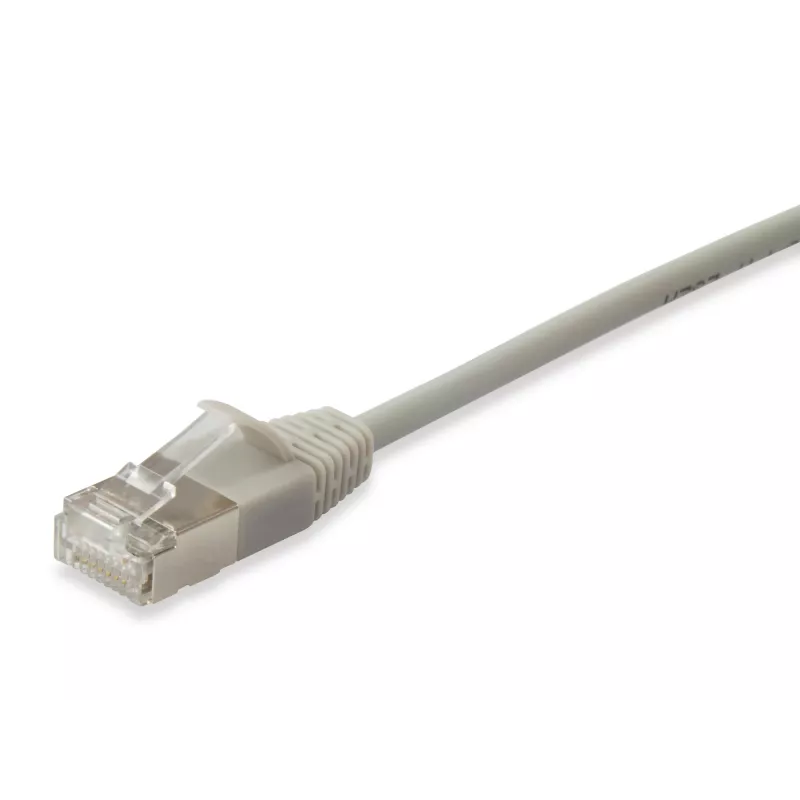

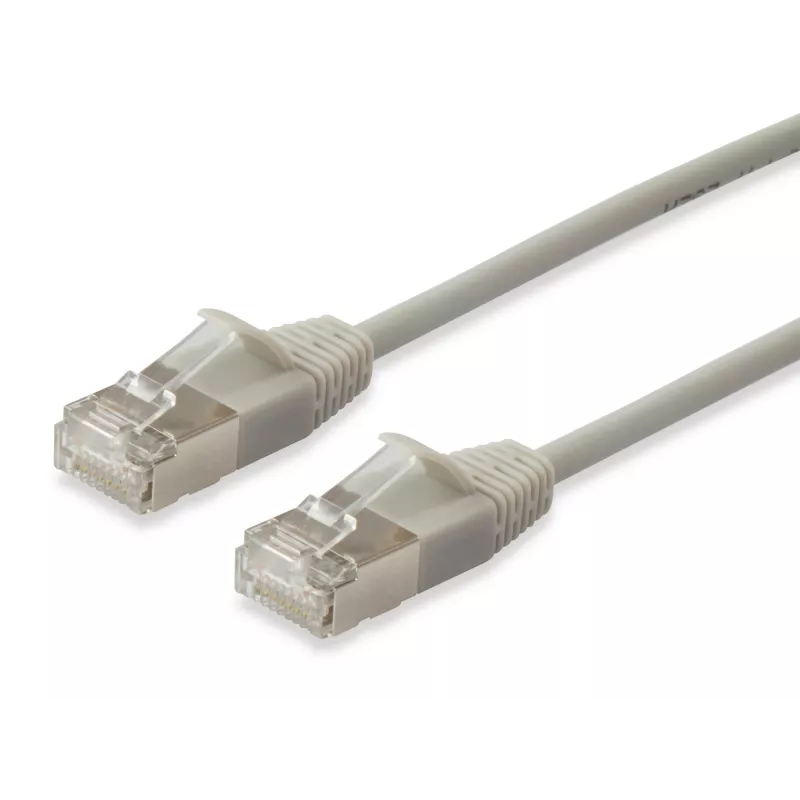

Equip Cable de red Cat.6A F/FTP fino 0,15 m beige 10000 Mbit/s

The Equip Cat.6A F/FTP Slim Patch Cable 0.15m Beige is a high-performance, space-saving network cable designed for 10GBase-T applications. Its ultra-slim 3.8 mm diameter makes routing in high-density environments such as data centers and telecom racks easier, while F/FTP shielding (foil around each pair with an overall braid) reduces EMI/RFI interference. The cable comes with RJ-45 straight male connectors on both ends and supports data rates up to 10000 Mbit/s.

Advantages

The slim design allows more cables to be installed in the same conduit or patch panel space, reducing the need for cable pathway expansion. With stranded 32/7 AWG bare copper conductors and combined foil and braid shielding, the cable delivers reliable 500 MHz bandwidth and stable 10 Gbit transmission performance. The molded boots with strain relief protect the connectors and improve durability. The cable is RoHS compliant and uses Low Smoke Zero Halogen (LSZH) jacket material.

Suitable for

• High-density patch panels and server racks
• Data centers and telecommunications rooms
• 10GBase-T network links between switches, servers and storage
• Power over Ethernet (PoE/PoE+) connections
• Tight routing paths where space is limited

Key specifications

• Cable type: Cat6a F/FTP (FFTP)
• Length: 0.15 m
• Diameter: 3.8 mm (ultra slim)
• Conductor: Stranded bare copper, AWG 32/7
• Bandwidth: 500 MHz
• Data rate: up to 10000 Mbit/s (10 Gbit/s)
• Connectors: RJ-45 straight male — both ends
• Shielding: Foil around pairs + braid (F/FTP)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Color: Beige
• Standards: ISO/IEC 11801, EN 50173

How to use

Connect one RJ-45 end to your switch, patch panel or network device and the other end to the corresponding port on your server, workstation or network appliance. Ensure connectors are fully inserted until the latch clicks. Route the cable through cable management channels or trays, taking advantage of the slim 3.8 mm diameter to reduce congestion. Avoid sharp bends and keep separation from strong electromagnetic sources where possible.

Recommendations

For optimal performance at 10 Gbit/s keep patch cable runs short and avoid bundling large numbers of cables tightly over long distances. Use in combination with compatible Cat6A F/FTP components (patch panels, keystone jacks and connectors) and observe PoE power limits specified by your equipment.
