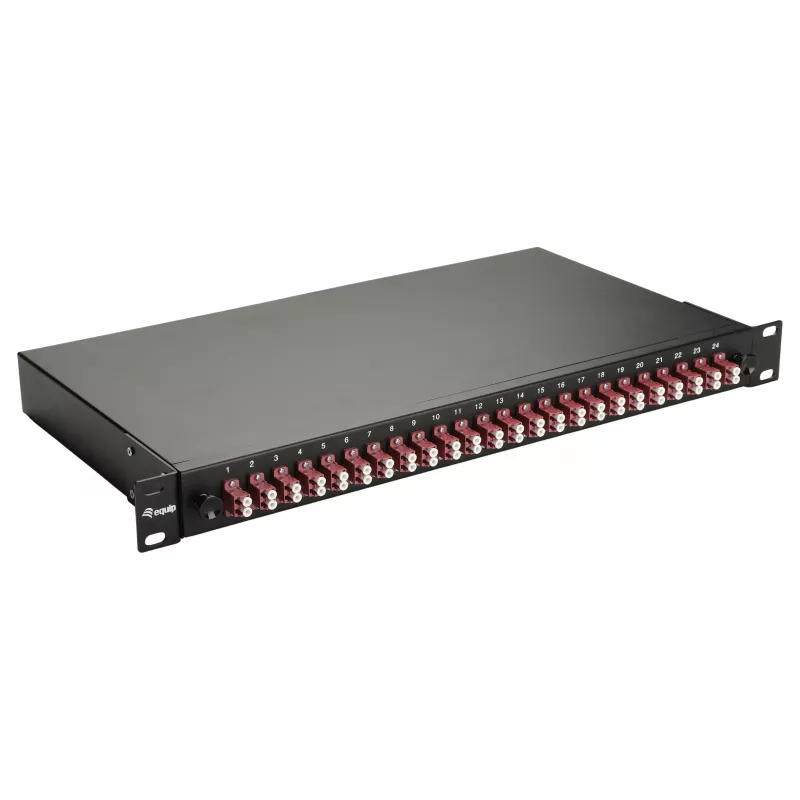

Equip Caja de empalme de fibra óptica de 24 puertos, LC Duplex, OM4, 1U, equipada, negra

Fiber optic networks demand clean, secure splicing and termination to maintain signal integrity. The Equip 24-Port Fiber Optic Splice Box delivers a complete, rack-mountable solution for organizing and protecting up to 24 fiber connections in a data center, server room, or enterprise telecom closet.

Who is it for

This splice box is ideal for network installers, IT professionals, and system integrators who need a reliable and pre-equipped fiber management panel for 19-inch racks. It suits both new installations and upgrades of existing fiber infrastructure.

Main features

• 24-port LC Duplex connectivity with OM4 multimode fiber support
• Fully equipped: includes adapters and 1.5 m pigtails
• 1U 19-inch rack-mountable steel housing in black

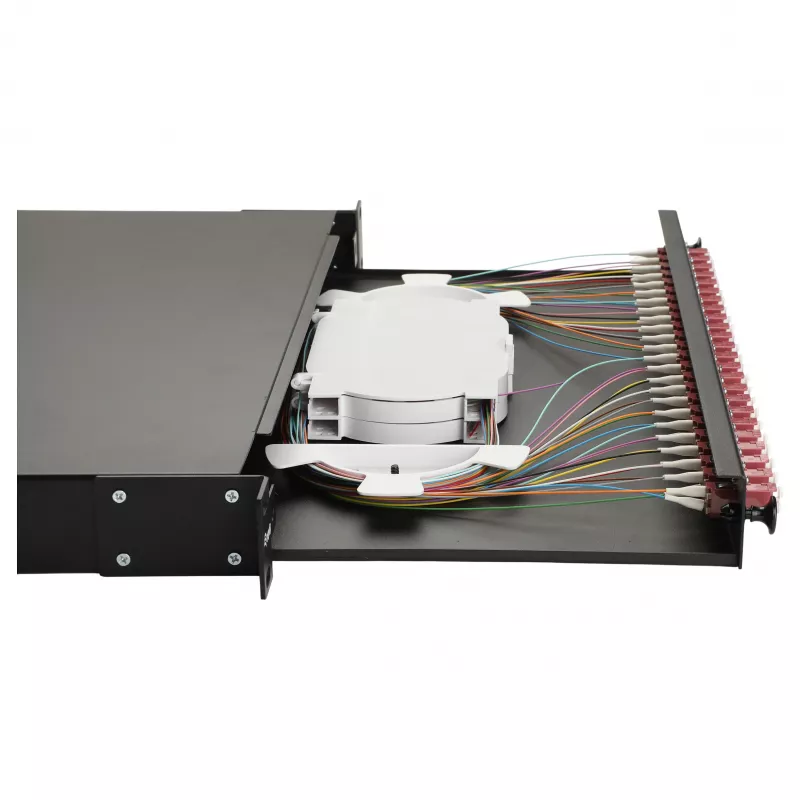

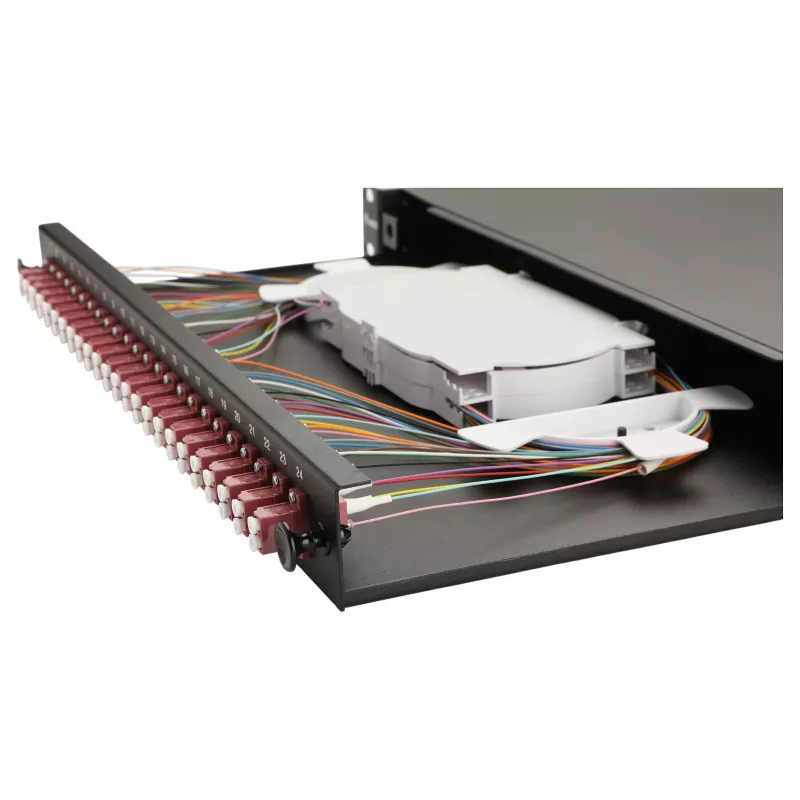

• Two 12-fiber splice trays for organized and secure splicing
• LSZH pigtails for enhanced fire safety
• Rear cable entry points simplify cable routing

Specifications

• Product type: Fiber optic splice box / patch panel
• Ports: 24 x LC Duplex
• Fiber mode: Multimode (OM4)
• Equipped: Yes – with ceramic adapters and 1.5 m pigtails
• Pigtail diameter: 0.9 mm, LSZH jacket
• Housing: Steel, black, 1U
• Mounting: 19-inch rack mount
• Splice trays: 2 x 12-fiber
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

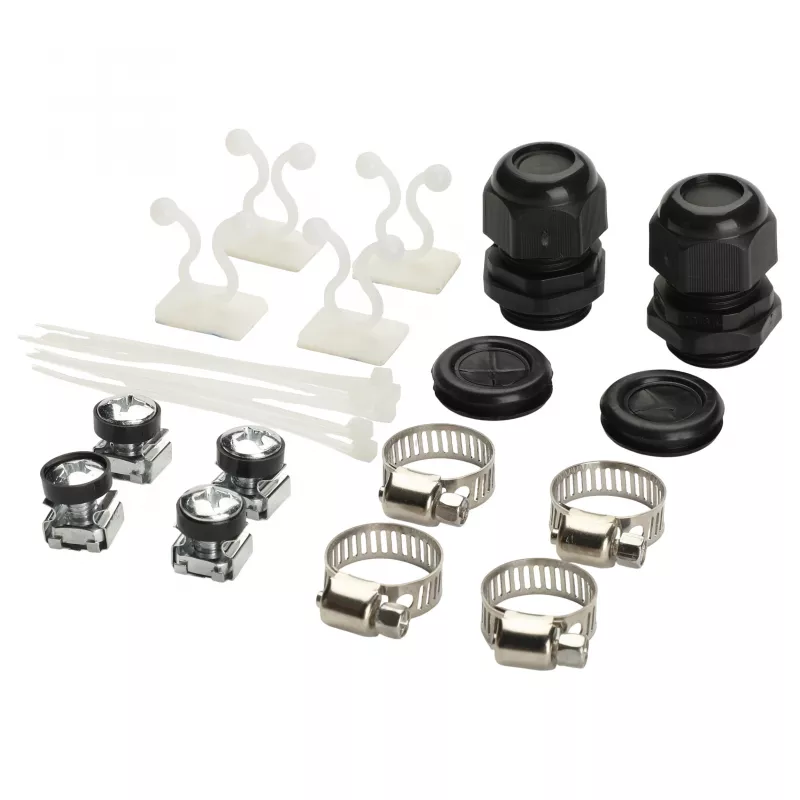

• Included accessories: cable ties, mounting screws, splice protectors

Tips

When installing, ensure proper cable bend radius to avoid signal loss. Use the included splice protectors to secure each splice. The box should be mounted in a well-ventilated rack for optimal performance.
