Equip Caja de empalme de fibra óptica de 24 puertos, LC Duplex, OS2, 1U, equipada, Negro

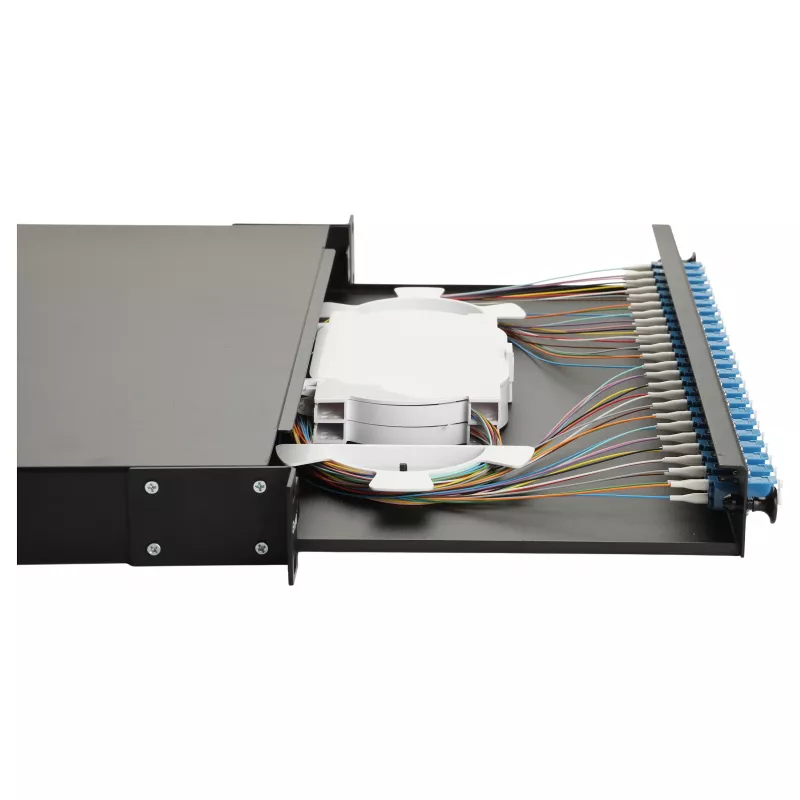

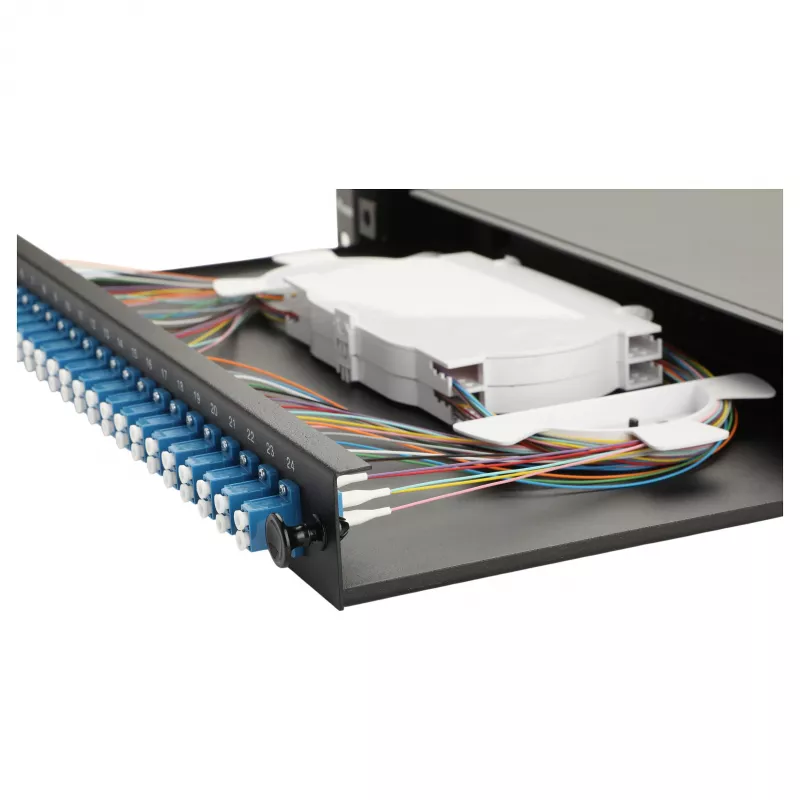

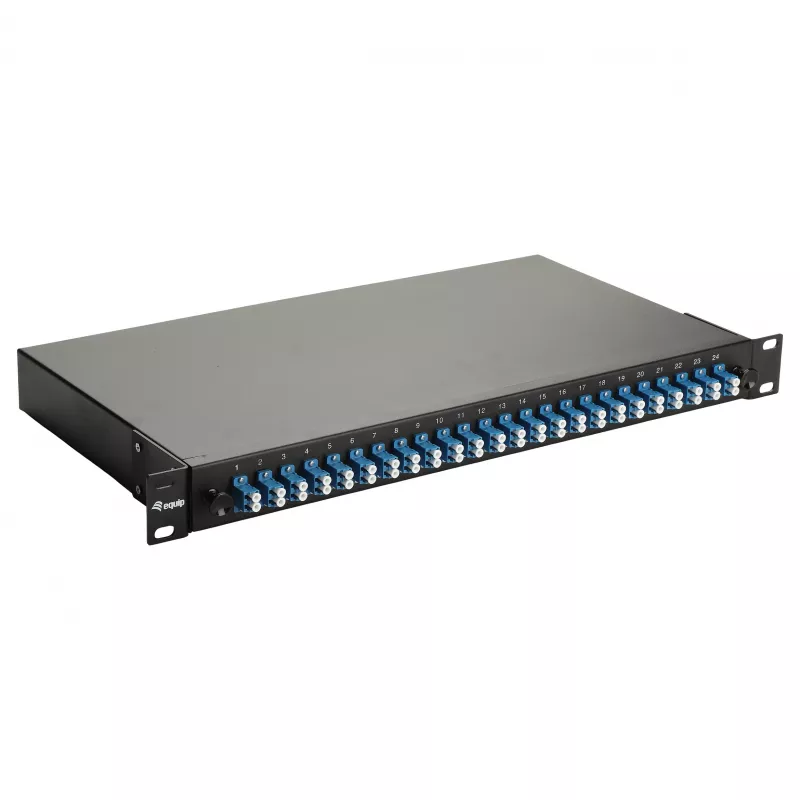

Network technicians in data centers and telecommunications rooms face the daily challenge of keeping fibre optic cabling organised while maintaining high performance. The Equip 591930 24-Port Fiber Optic Splice Box solves this with a compact, 1U rack-mountable enclosure that integrates 24 LC duplex ports on a single panel. This fully equipped unit comes with OS2 single-mode adapters and pigtails already installed, so engineers can immediately start splicing and patching without sourcing components separately. Whether you are extending a backbone link or distributing services to multiple racks, this splice box brings structure, protection, and clarity to your fibre infrastructure.

Key specifications

• Product Type: Rack splice box, 1U (1.75 inch) high
• Connector Type: LC duplex, 24 ports (48 fibres)
• Fibre Mode: Single-mode OS2

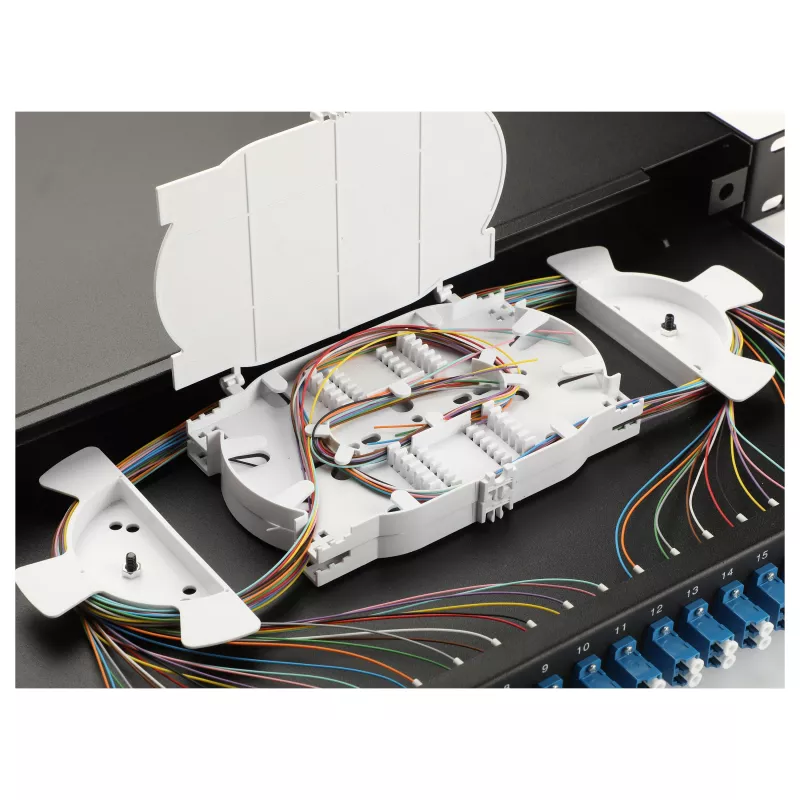

• Includes: 24 x LC duplex adapters, 24 x LC duplex pigtails, splice tray
• Housing: Steel, black painted
• Dimensions: 19-inch rack width (standard)
• Optical performance: Insertion loss ≤ 0.2 dB, return loss ≥ 50 dB
• Cable entry: Multiple rear entries

Why choose it

Built from heavy-duty steel, this splice box provides a stable and secure platform for terminating fibre optics. The pre-fitted components are tested for reliability and guarantee low insertion loss, preserving signal quality across your network. The 1U size allows high-density patching without consuming excessive rack space, and the included splice tray keeps fusion splices neatly organised. This all-in-one solution simplifies ordering and installation, making it a favourite among network installers who value efficiency and consistency.

Ideal use cases

• Data center fibre distribution and patching
• LAN and enterprise network cabling
• Telecommunication service provider nodes
• Any structured cabling environment requiring secure fibre termination

Good to know

The Equip wholesale range offers dependable networking infrastructure at an attractive price-to-performance ratio. This splice box is supplied with a splice tray, and its rear cable entry points support various cable diameters. For best results, pair it with LC duplex patch cords and ensure the splice tray is firmly secured before closing the cover. With a UK tariff code applicable, it is straightforward to classify for customs purposes.
