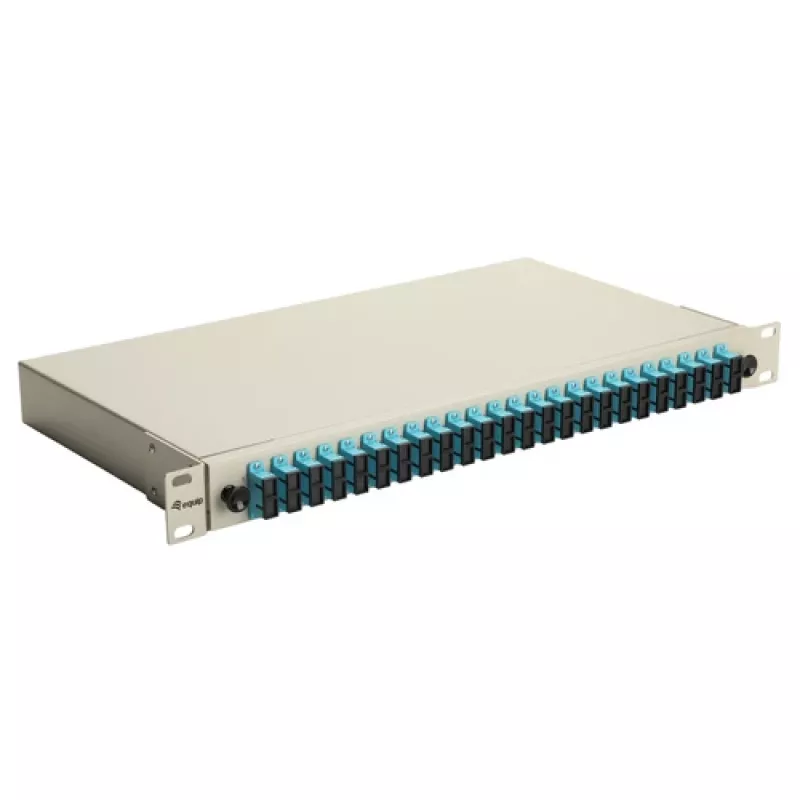

Equip caja de empalme de fibra óptica de 24 puertos, SC dúplex, OM3, 1U, completamente equipada, gris

Engineered for high-density data center and telecom environments, the Equip 24-Port Fiber Optic Splice Box delivers seamless fiber organization and reliable connectivity in a compact 1U 19-inch rack form factor. Fully equipped with SC duplex adapters and OM3 pigtails, this unit simplifies patching and splicing while maintaining excellent optical performance.

Overview

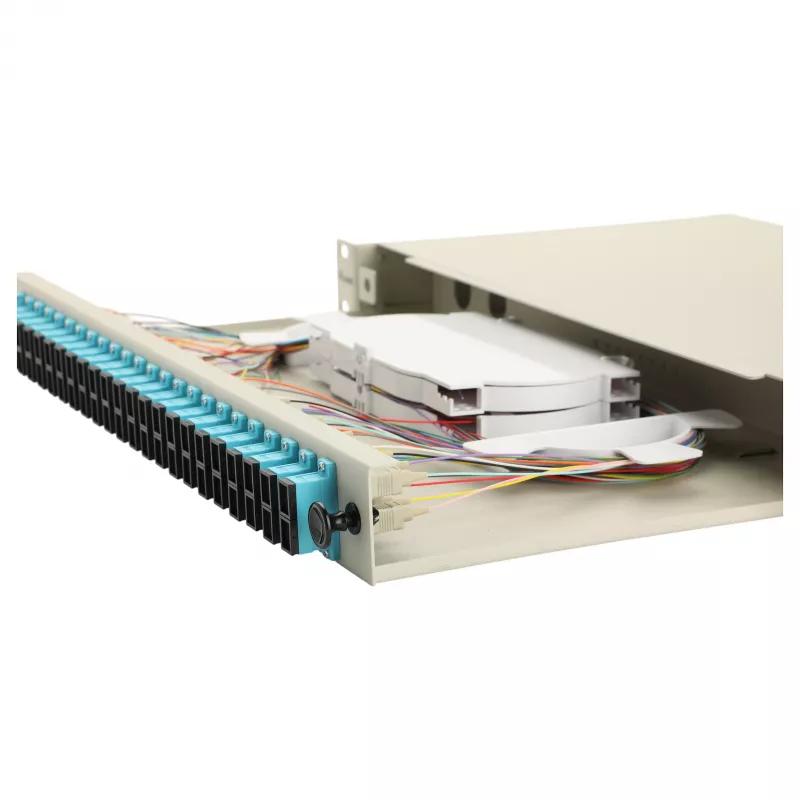

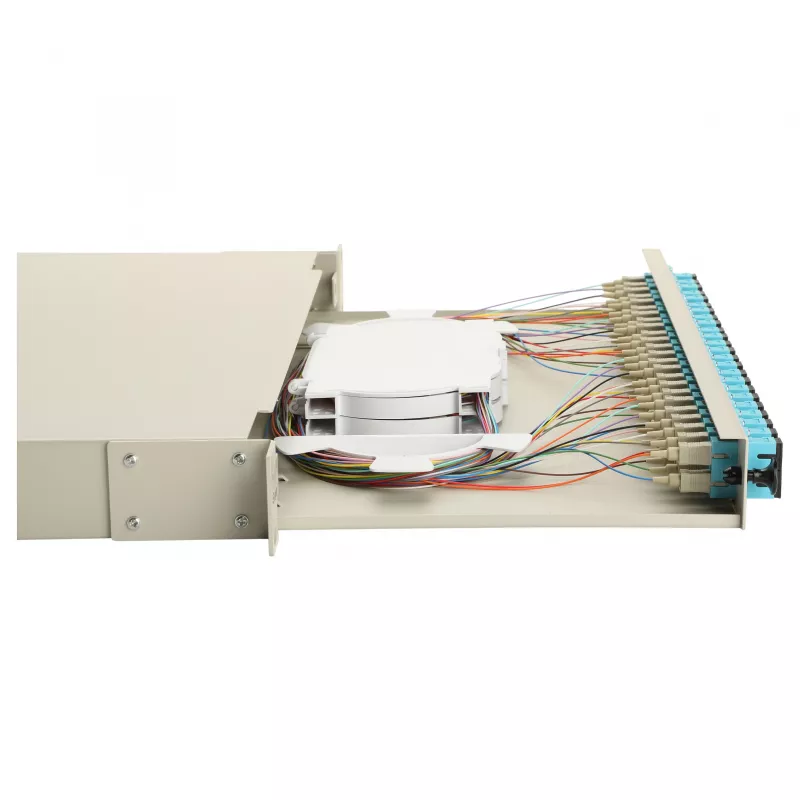

This splice box provides a complete, ready-to-install solution for managing up to 24 fiber connections. Its sturdy steel housing and grey finish ensure durability and a professional look. The included splice trays and multiple cable entry points support structured cabling, while the SC duplex interface offers high-density and polarity flexibility for modern networks.

What stands out

• Fully equipped with SC duplex adapters and pre-terminated OM3 pigtails (2m)
• 1U rack-mountable design saves space and integrates cleanly with existing 19-inch racks
• Steel enclosure with multiple rear cable entries for efficient cable management
• Exceptional optical performance: insertion loss <0.3 dB, return loss >30 dB

Technical details

• Ports: 24
• Connector: SC Duplex
• Fiber mode: Multimode OM3
• Pigtail length: 2 meters
• Housing material: Steel
• Rack unit: 1U
• Operating temperature: -20°C to 70°C
• Standards: RoHS, REACH compliant

Our verdict

The Equip 24-Port Fiber Optic Splice Box is a dependable, high-quality solution for fiber management. Its complete package—adapters, pigtails, and splice trays—dramatically simplifies installation and ensures consistent performance for both data centers and enterprise networks.
