Equip Caja de empalme de fibra óptica de 24 puertos, SC dúplex, OM4, 1U, equipada, negra

This Equip 24-port splice box brings professional organization to high-density fiber termination in network cabinets and server rooms. Its compact 1U 19-inch rackmount chassis is factory-equipped with SC Duplex adapters and splice trays, so it is ready for immediate deployment without additional accessory purchases. The OM4 multimode rating supports high-bandwidth applications such as 40G and 100G Ethernet, making it a reliable foundation for modern structured cabling systems.

Highlights

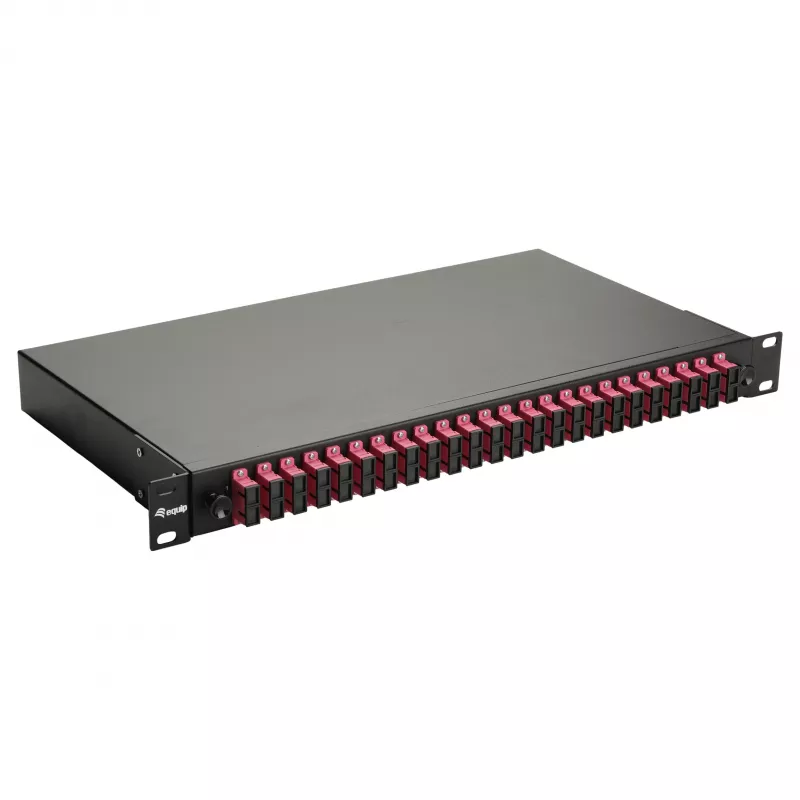

• 24-port SC Duplex adapter panel in a 1U 19-inch rackmount form factor

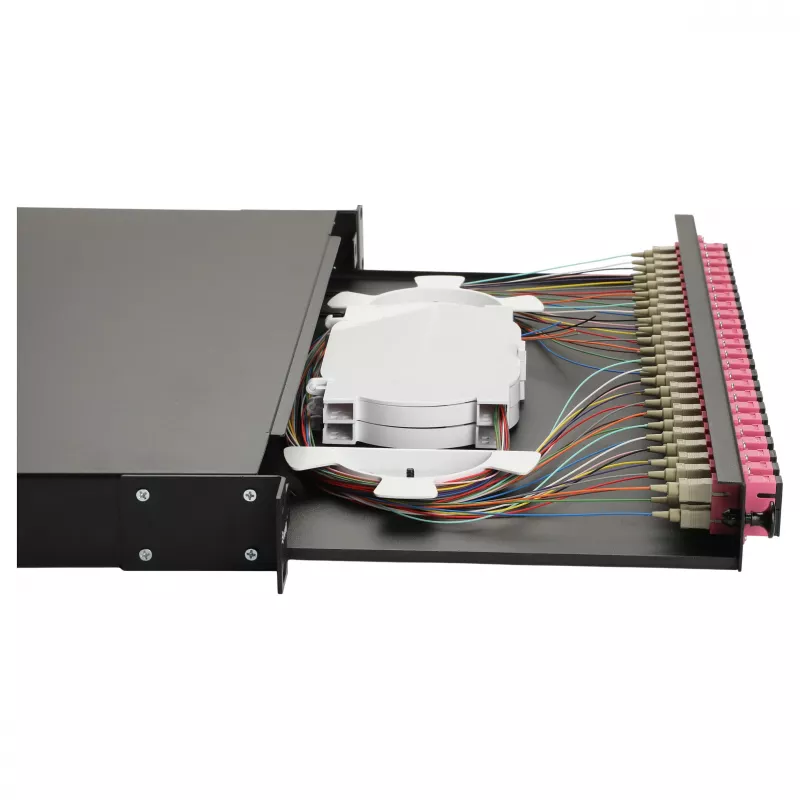

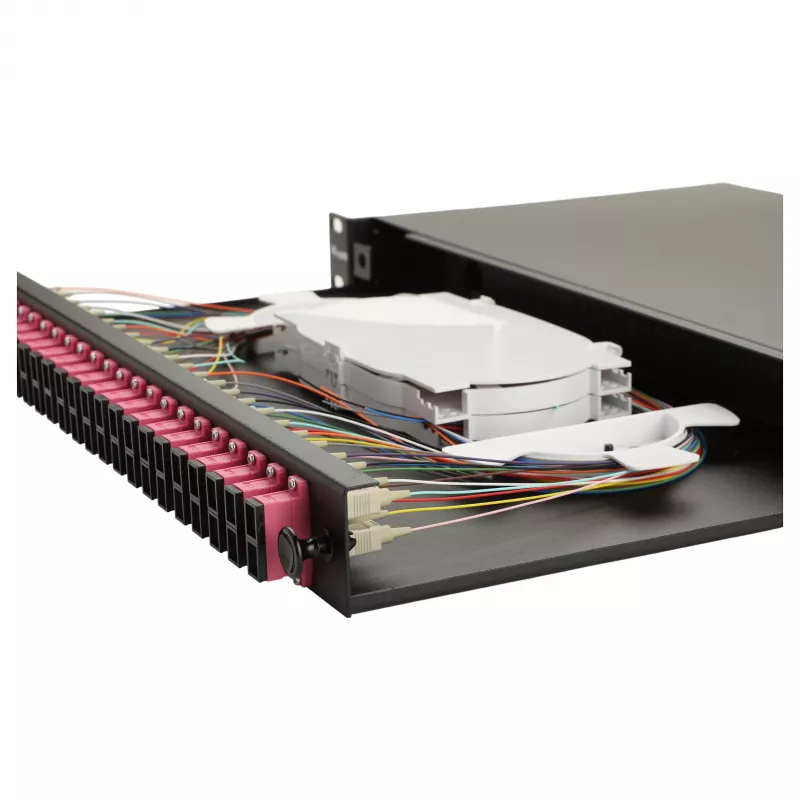

• Pre-installed splice trays for efficient fusion splicing and cable management
• OM4 multimode fiber support with 48-fiber capacity for high-speed networks
• Sturdy cold-rolled steel construction with black RAL 9005 finish
• Multiple cable entry points for rear and side cabling

In daily use

The splice box is designed for technicians who need a clear, accessible interface for terminating and splicing fiber optic cables. Simply mount the unit in a standard 19-inch rack, route incoming cables through the rear or side entries, and splice individual fibers into the pre-installed trays. The SC Duplex adapters on the front provide plug-and-play connectivity for patch cords, enabling quick patching and troubleshooting. Whether you are setting up a new data center or upgrading an existing network, this splice box simplifies cable organization and reduces installation time.

Full specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Rack Unit Height: 1U
• Rack Standard: 19-inch
• Port Count: 24
• Connector Type: SC Duplex
• Fiber Capacity: 48 Fibers
• Fiber Mode: Multimode
• Fiber Class: OM4
• Equipped Status: Equipped with SC Duplex Adapters and Splice Trays
• Splice Tray Capacity: Up to 48 splices
• Material: Cold-Rolled Steel
• Product Colour: Black
• Mounting Type: Rackmount
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C

Final note

This splice box is a complete, cost-effective cabling solution for network installers. Its rugged construction and pre-configured design ensure reliable performance in demanding environments, making it an excellent choice for enterprise networks, data centers, and telecommunications rooms.
