Equip Conector de campo Cat.6A RJ45 blindado sin herramienta (pack de 100)

Network installers and data center technicians terminating Cat.6A cabling in high-density patch fields will appreciate the speed and reliability of this 100-piece pack of shielded RJ45 plugs. The tool-free design eliminates the need for crimping tools, enabling quick on-site terminations without sacrificing performance.

Key specifications

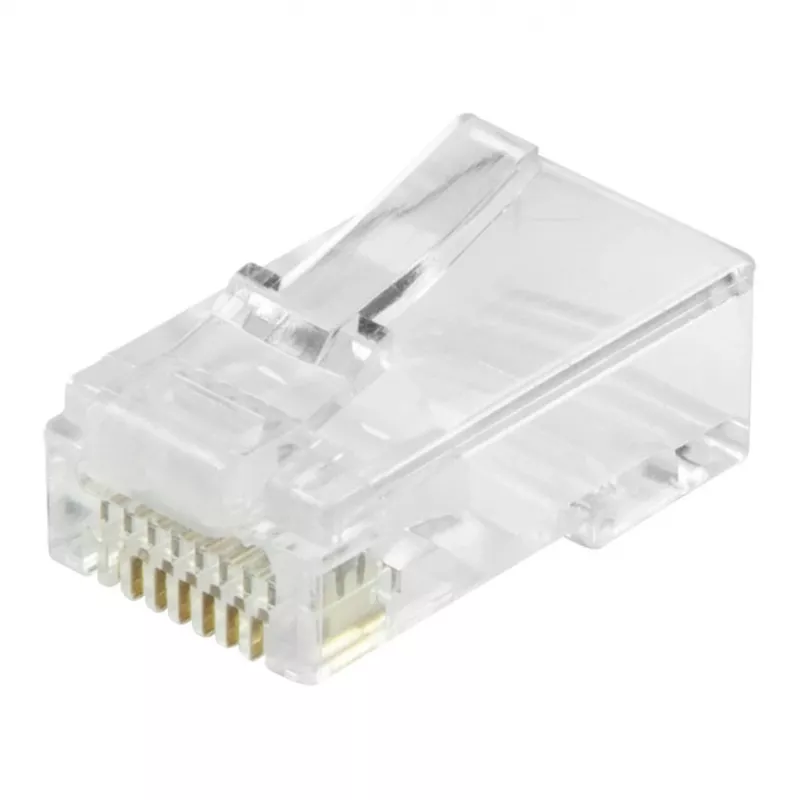

• Connector type: RJ45 plug (male)
• Category: Cat.6A (10GBASE-T) with backward compatibility to Cat.6, Cat.5e, Cat.5
• Shielding: Shielded (STP/FTP compatible)
• Termination: Tool-free, field terminable, re-terminable
• Conductor compatibility: Solid and stranded wire, 22-26 AWG
• Contact plating: 50µm gold-plated
• Housing material: Zinc alloy
• Standards: TIA/EIA 568-C.2, ISO/IEC 11801
• PoE support: IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
• Insulation resistance: > 500 MΩ
• Dielectric withstanding voltage: 1000V AC RMS @ 60Hz, 1 min

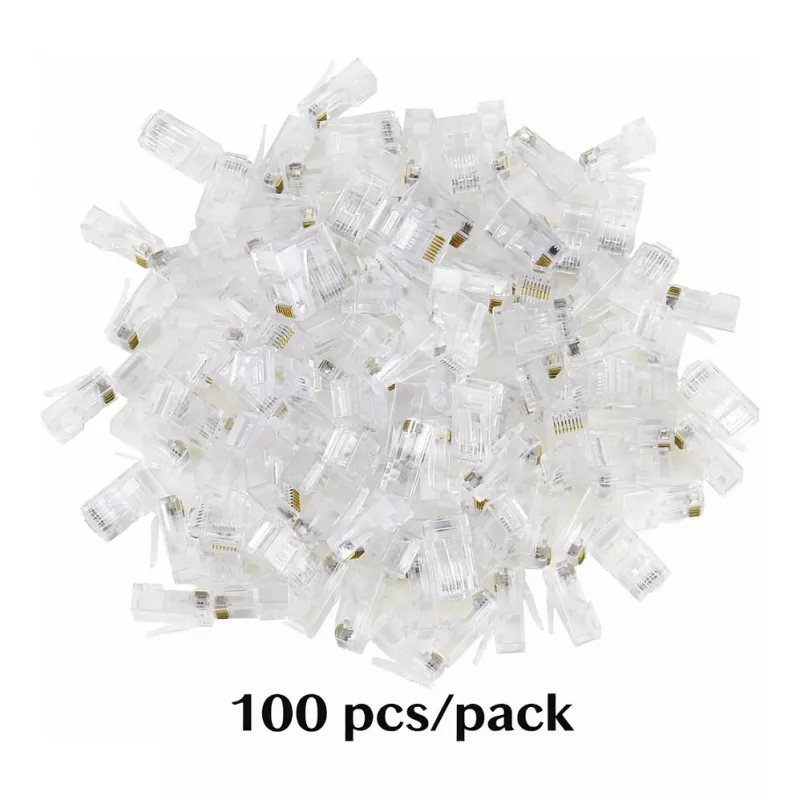

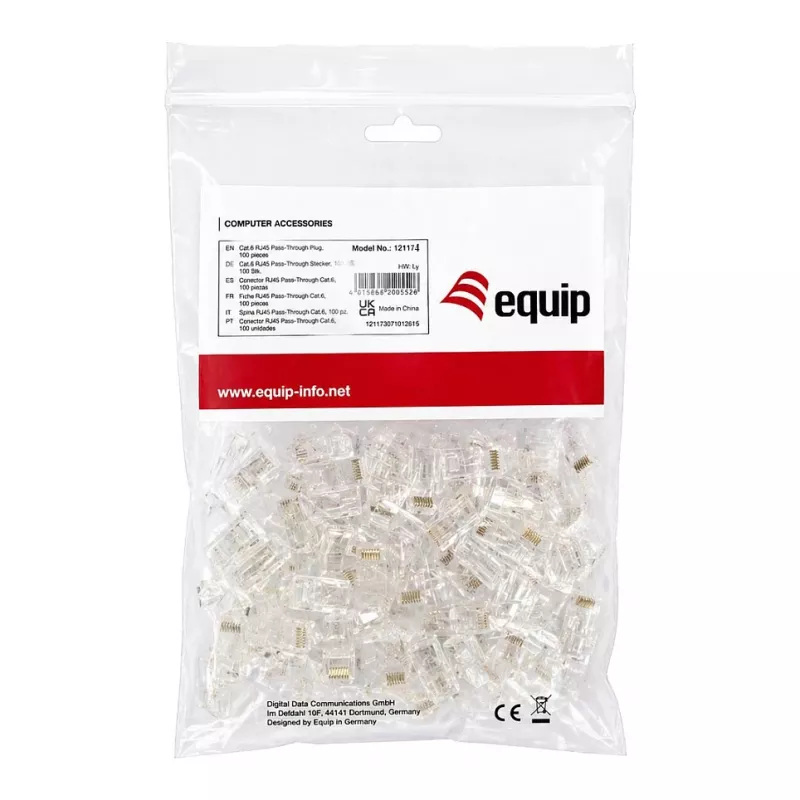

• Pack size: 100 pieces

Why choose it

These plugs are built for professional environments where uptime and performance are critical. The zinc alloy housing provides robust shielding against EMI, while the 50µm gold-plated contacts ensure low contact resistance and long-term reliability. The tool-free mechanism saves time and reduces installation errors, making it ideal for both new installations and retrofits.

Ideal use cases

• Data center structured cabling (ToR, MoR, EoR)
• Office network upgrades to 10G Ethernet
• Industrial Ethernet applications requiring shielded connectivity
• Field termination for temporary or permanent links
• PoE-powered device connections (IP cameras, access points, etc.)

Good to know

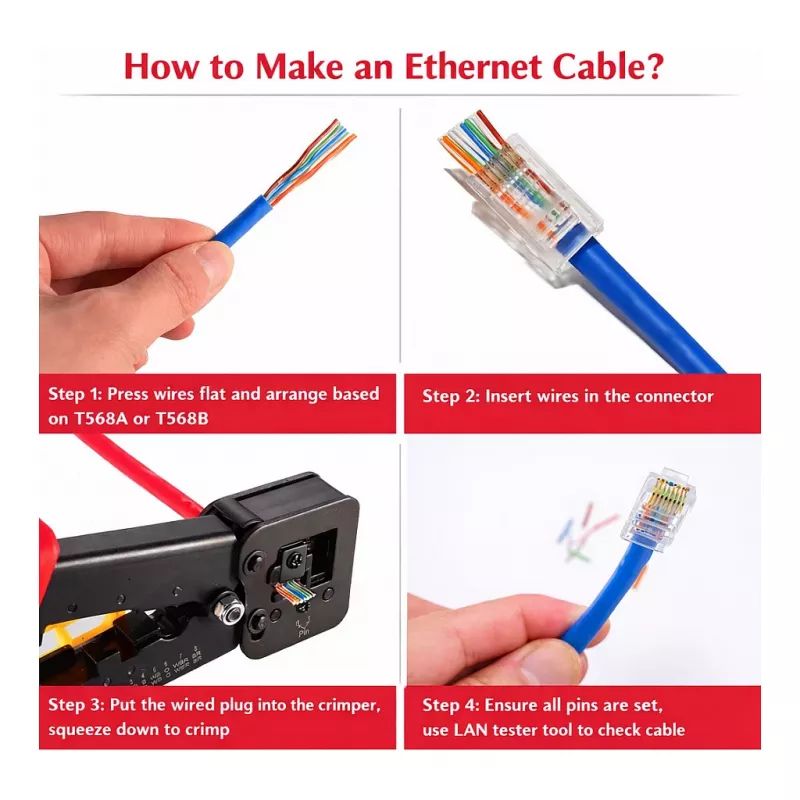

Each plug is individually re-terminable, allowing for corrections without waste. The pack of 100 offers excellent value for large projects. Ensure proper cable preparation and follow the manufacturer's termination guide for best results.
