Equip Eco Mount armario 19' 07U, 540X400MM, RAL7035 gris

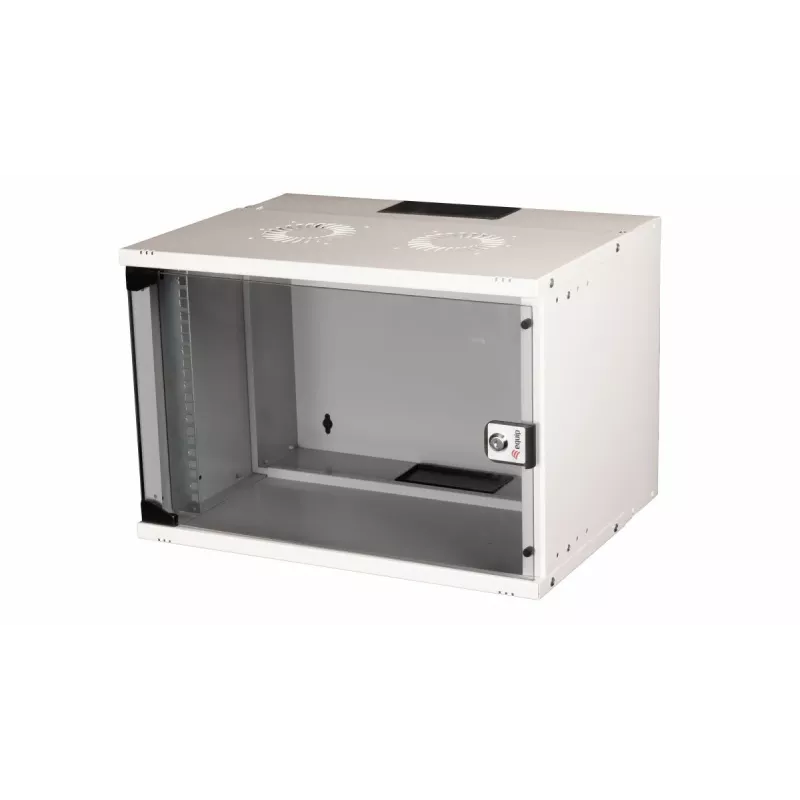

The Equip Eco Mount Wall mounted rack EWM-07-5440-G is a 7U 19" wall cabinet designed for organized housing of networking equipment. Made from 1.5 mm steel sheets and finished in light grey (RAL 7035), the cabinet combines sturdy construction with a compact footprint (330 mm height, 174 mm width, 400 mm depth) and a maximum mounting depth of 380 mm. The unit includes a keyed lock for security, top ventilation slots, and removable plastic cable entry covers at top and bottom to support neat cable routing. The cabinet is delivered unassembled; an instructional video is provided to assist with assembly.

Advantages

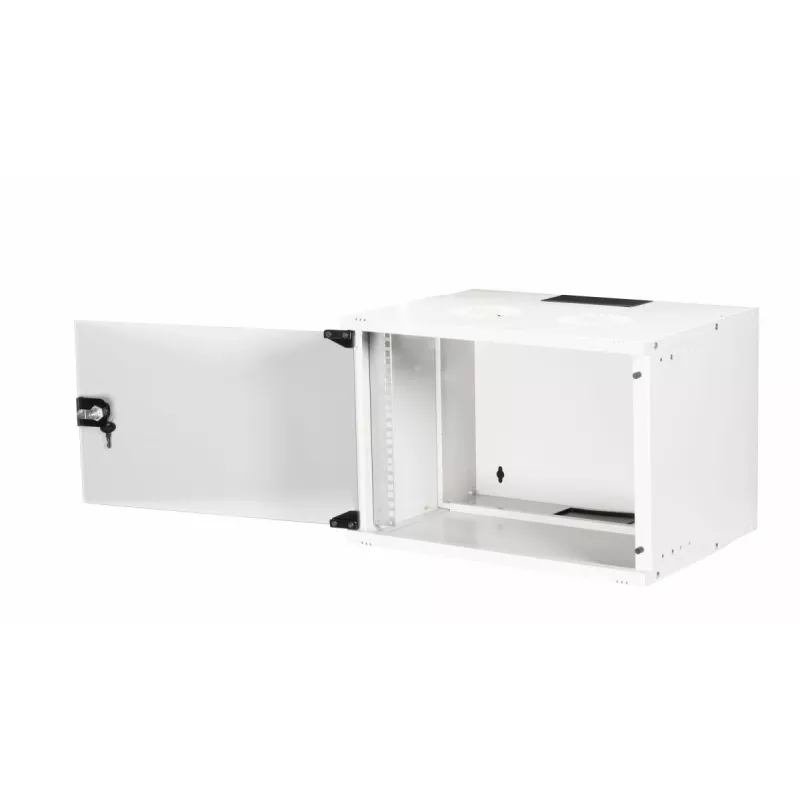

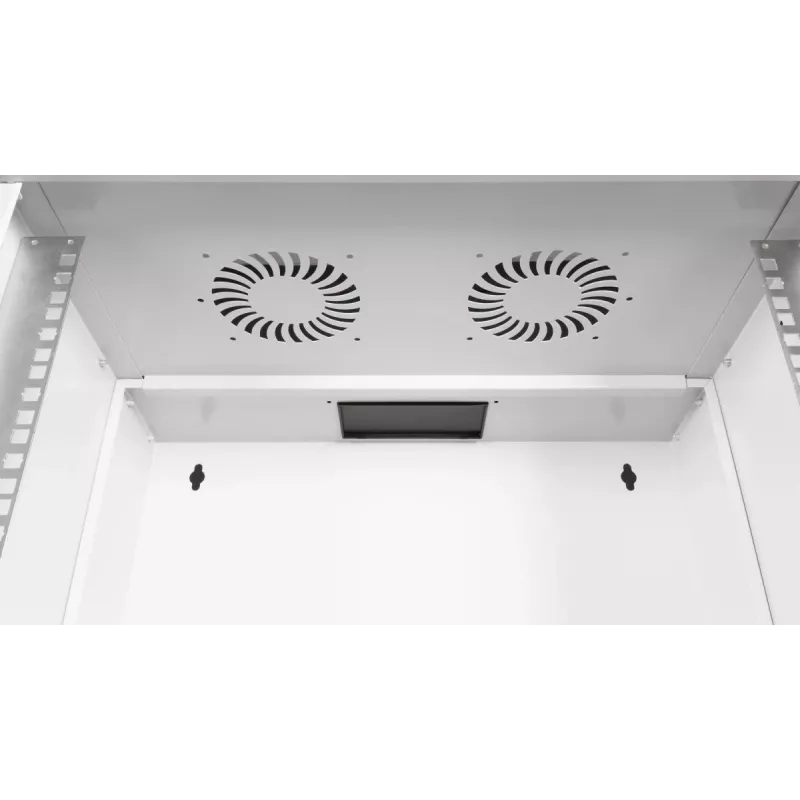

The cabinet offers a robust 1.5 mm steel construction that ensures protection and stability while remaining relatively lightweight at 9.06 kg. Its reversible door design allows left- or right-hand opening to fit different installation layouts. Integrated ventilation slots and dedicated cable entry points simplify thermal management and cable organization. The 7U 19" format provides standardized mounting for common network devices and accessories.

Suitable for

• Wall-mounted installation of switches, patch panels and small servers
• Telecom and network patching in office or server closet environments
• Organized cabling and secure storage of networking equipment in retail or branch locations

Key specifications

• Rack capacity: 7U (19")
• Mounting depth (max): 380 mm
• Height: 330 mm
• Width: 174 mm
• Depth: 400 mm
• Weight: 9.06 kg
• Material thickness: 1.5 mm steel
• Colour: Light grey (RAL 7035)

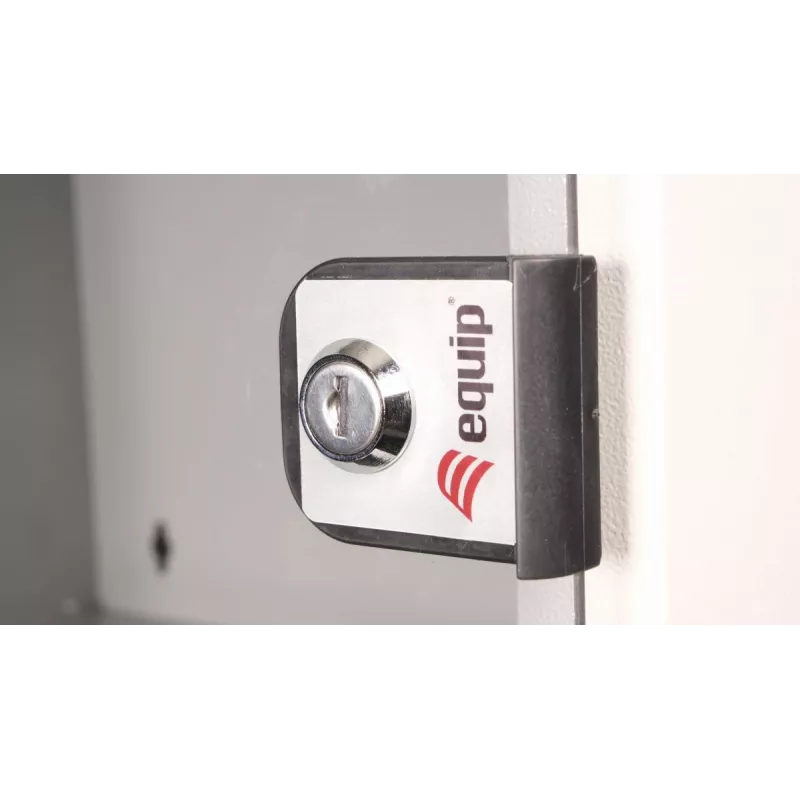

• Lock: Keyed lock on door

How to use

Mount the cabinet securely on a suitable load-bearing wall using appropriate fasteners (not supplied) according to local building codes. Install the internal 19" mounting rails and position network devices within the 7U space, taking care to observe the maximum mounting depth of 380 mm. Route cables through the removable plastic covers at the top or bottom and secure them with cable management accessories as needed. Ensure ventilation slots are not obstructed for proper airflow. Follow the supplied assembly instructions and watch the provided instructional video for step-by-step guidance.

Recommendations

For reliable operation, avoid exceeding the cabinet's load capacity, allow adequate airflow around ventilation slots, and use proper wall anchors for secure mounting. Use compatible 19" accessories (shelves, cable managers) to optimise equipment arrangement and cable routing.
