Equip Pro Cable de parcheo de fibra óptica LC a LC Multimodo Dúplex OM3 15m LSZH Turquesa

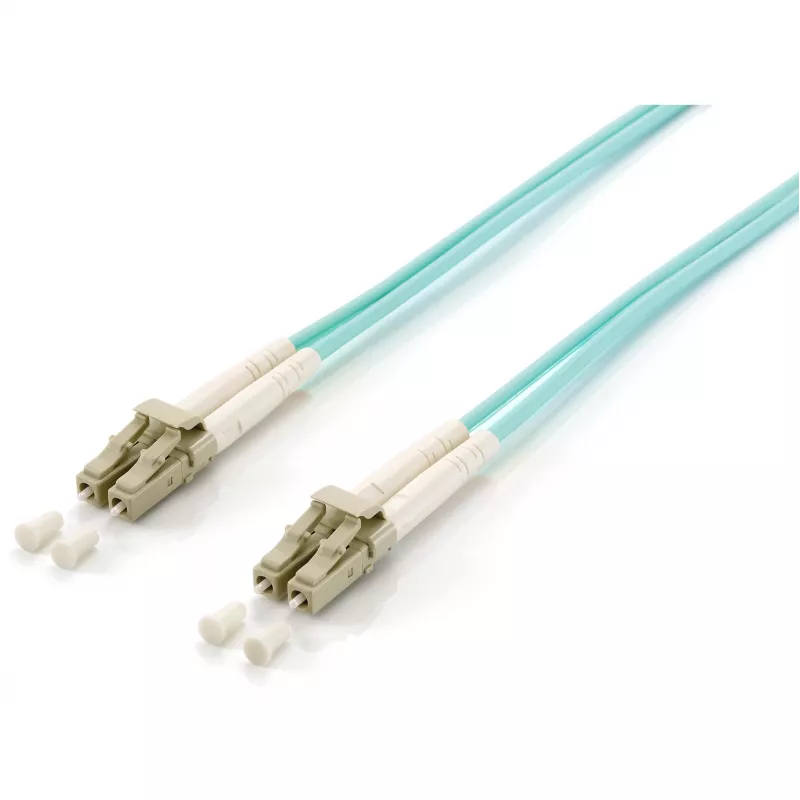

The Equip Pro Fiber Optic Patch Cable provides high-performance connectivity for demanding network environments. Designed with LC to LC connectors and multimode OM3 fiber, this 15-meter cable supports high-speed data transmission up to 10GbE and beyond. The duplex zipcord construction ensures easy installation and reliable signal integrity.

Advantages

Low insertion loss and high return loss ensure minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in confined spaces. OM3 fiber is optimized for 850nm VCSEL sources, supporting 10GbE up to 300 meters and 40/100GbE up to 100 meters.

Suitable for

• Data center interconnects
• Enterprise network cabling
• High-speed server connections
• Storage area networks (SAN)

Key specifications

• Connector Type: LC Male to LC Male
• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Length: 15 m
• Jacket Material: LSZH (Halogen-Free)
• Jacket Color: Turquoise
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Data Rates: 10GbE up to 300m, 40/100GbE up to 100m
• Wavelengths: 850 nm, 1300 nm
• Attenuation: ≤ 3.5 dB/km @850nm, ≤ 1.5 dB/km @1300nm
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure proper cable management to maintain bend radius.
