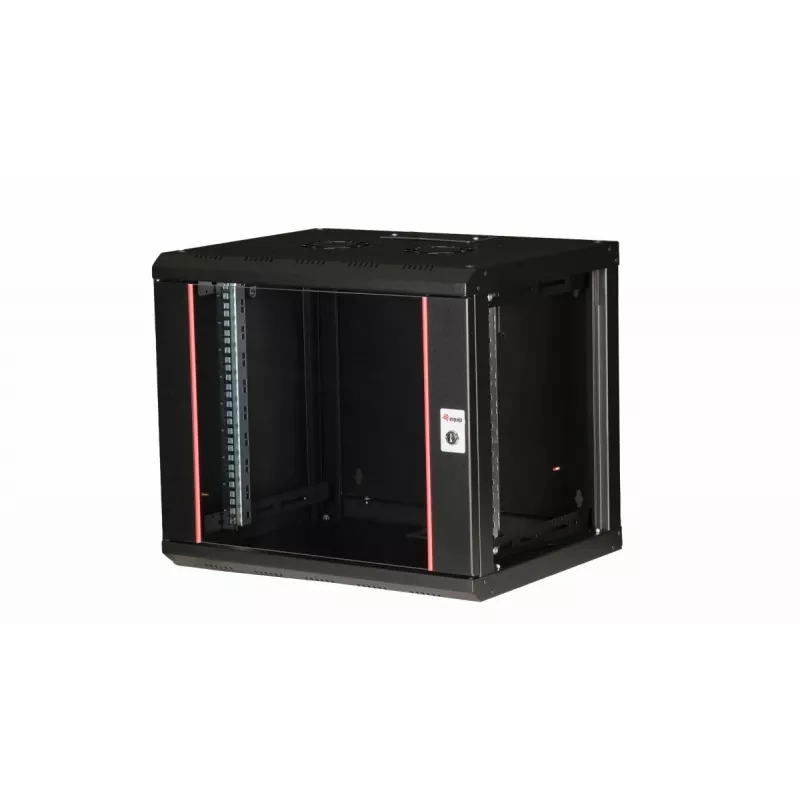

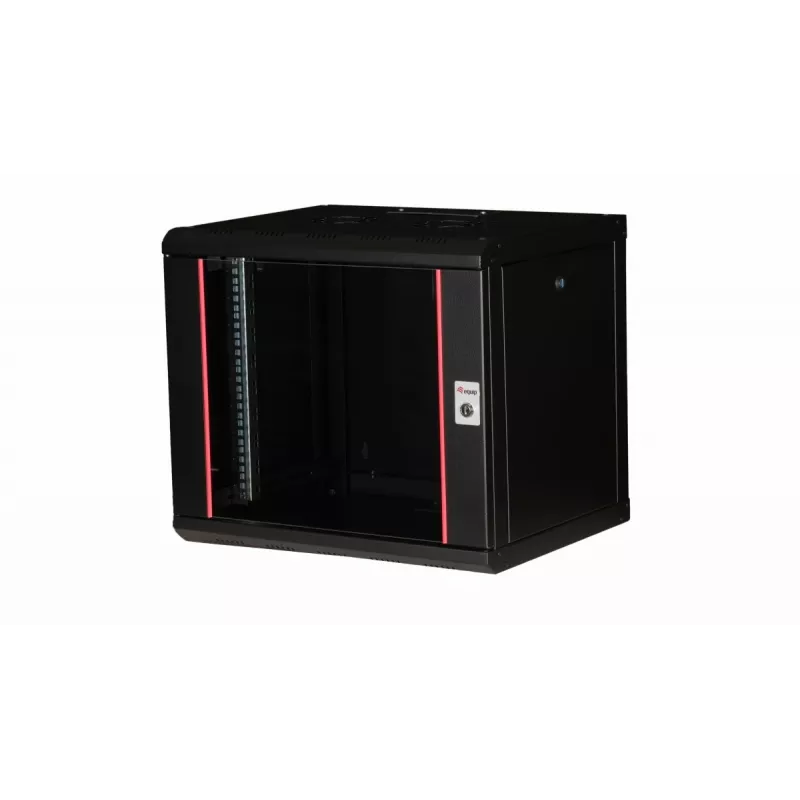

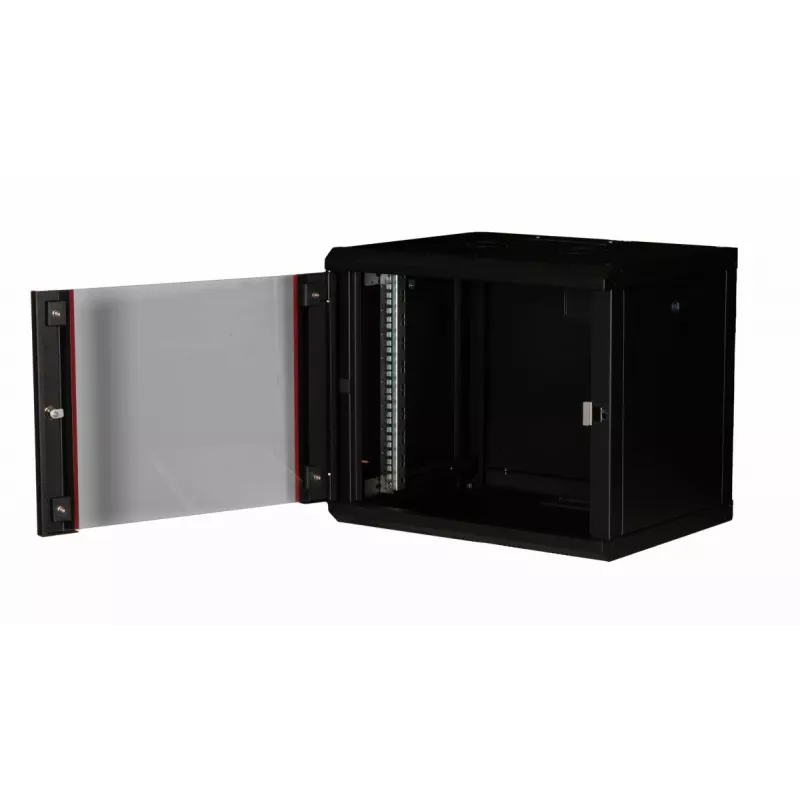

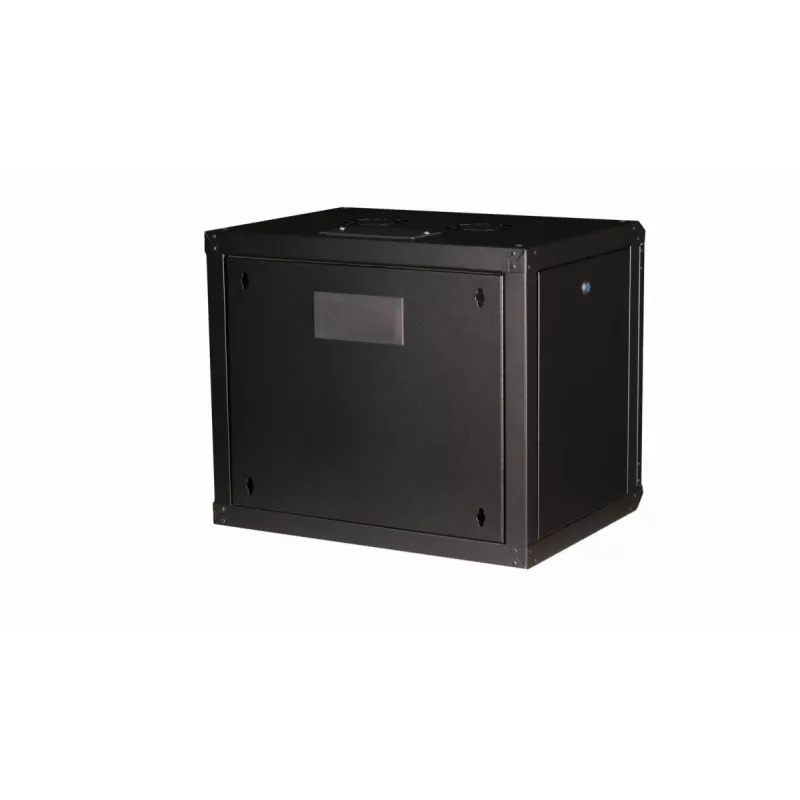

Equip Pro Mount armario de 19 pulgadas, 9HE, 600X450MM, RAL9005 negro

The Equip Pro Mount EPM-09-6045-B-CBAA is a 9U wall-mounted 19" cabinet designed for neat installation of active and passive network components. Constructed from steel sheets up to 1.5 mm thick and finished in black (RAL 9005), the cabinet includes pre-mounted 483 mm (19") profile rails, adjustable depth rails with bi-directional height markings, and punched 19" openings in the back frame. The cabinet supports organized cable entry through a sliding roof panel with a rubber seal, rear and base punched cable entries with plastic covers, and brushes on the rear frame for additional cable routing. Wall mounting is simplified, and optional leveling feet or castors allow standalone placement.

Advantages

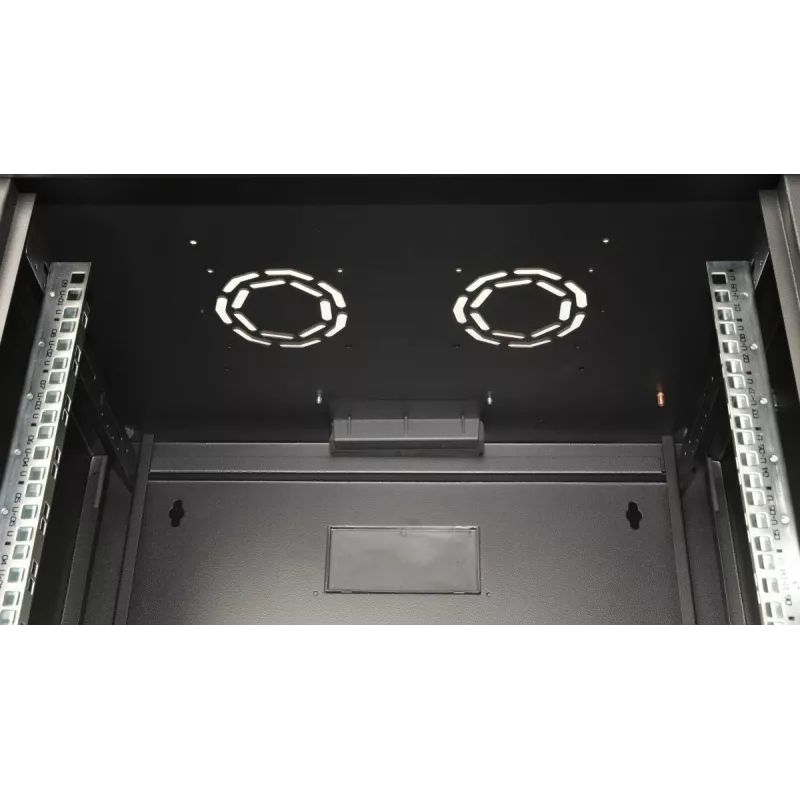

This wall-mounted rack offers robust construction and durability due to its steel-sheet build and powder-coated finish. Depth-adjustable, galvanized 483 mm (19") profile rails with readable height markings simplify equipment installation. Detachable door and side panels and a reversible door hinge provide flexible access. Integrated ventilation slots in the roof and multiple cable-entry features support airflow and tidy cable management. A range of compatible accessories such as shelves and cable management tools expands functionality.

Suitable for

• Small server rooms and network closets
• VoIP and network switches, patch panels, and routers
• Telecom or IT equipment installations in offices and retail spaces
• Environments requiring wall-mounted, space-saving equipment racks

Key specifications

• Model: Equip Pro Mount EPM-09-6045-B-CBAA
• Rack capacity: 9U
• External dimensions (H×W×D): 505 × 450 × 600 mm
• Maximum mounting depth: 370 mm
• Weight: 17.6 kg
• Profile rails: two pre-mounted 483 mm (19") galvanized rails, adjustable depth, height unit markings readable from both directions
• Colour: Black (RAL 9005)

How to use

Mount the cabinet to a suitable wall using appropriate hardware and anchors for the wall material, ensuring the cabinet is level. Install equipment on the pre-mounted 19" rails and adjust rail depth as needed. Use the sliding cable entry panel on the roof and the punched entries with covers at the rear and base to route cables; brushes on the rear frame help maintain a dust barrier. Detach side panels or change the door orientation for improved access during installation or maintenance.

Recommendations

For reliable operation, distribute installed equipment weight evenly and respect the specified maximum mounting depth of 370 mm. Ensure adequate ventilation around the cabinet and use compatible accessories (shelves, cable managers) to maintain tidy cable paths and prevent airflow obstruction.
