Equip Ventiladores de refrigeración 19", 1U, 4FANS, RAL7035 gris

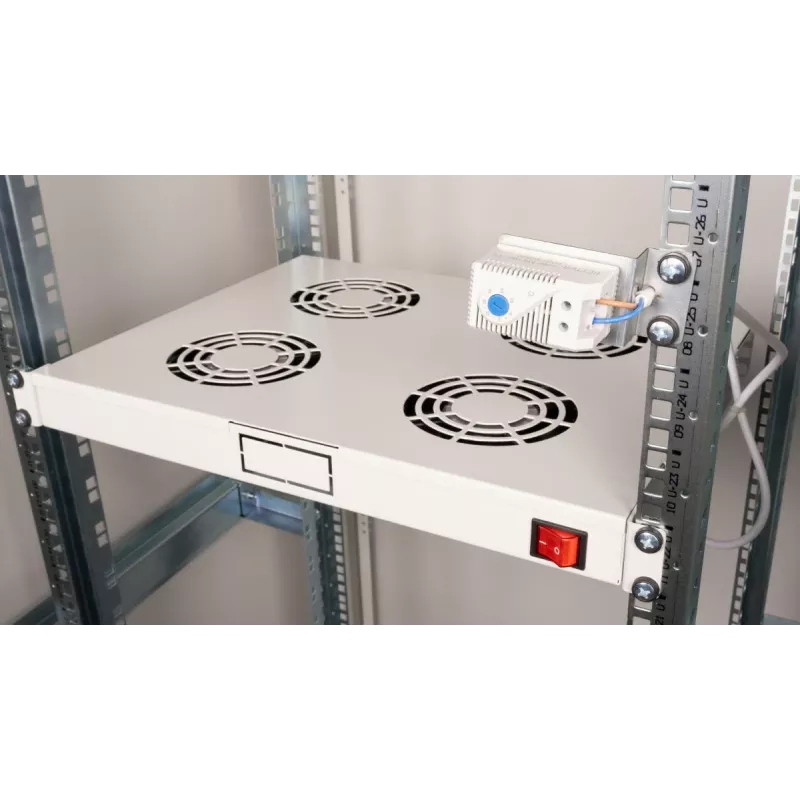

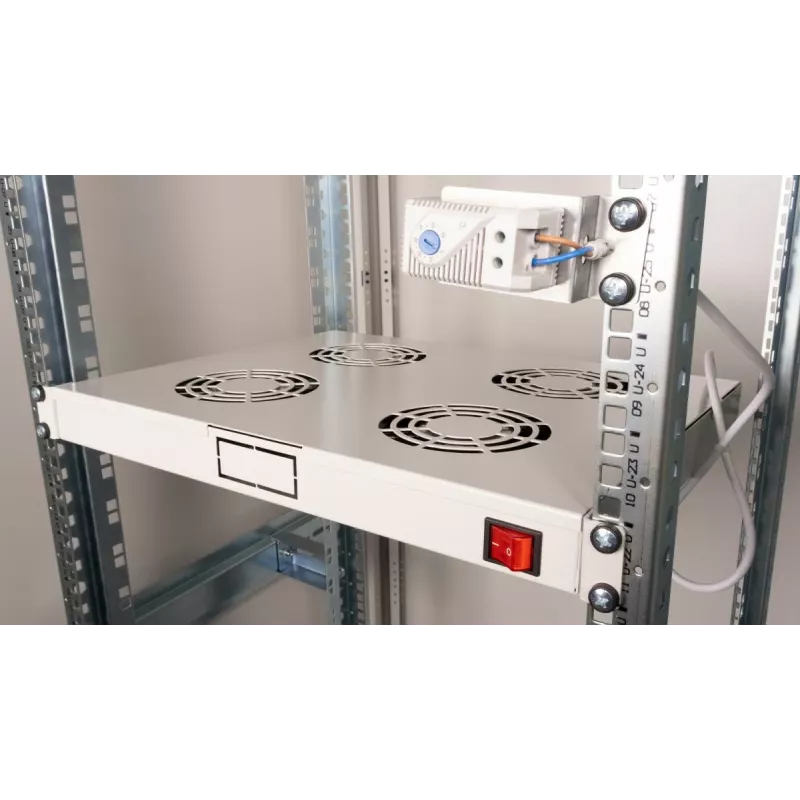

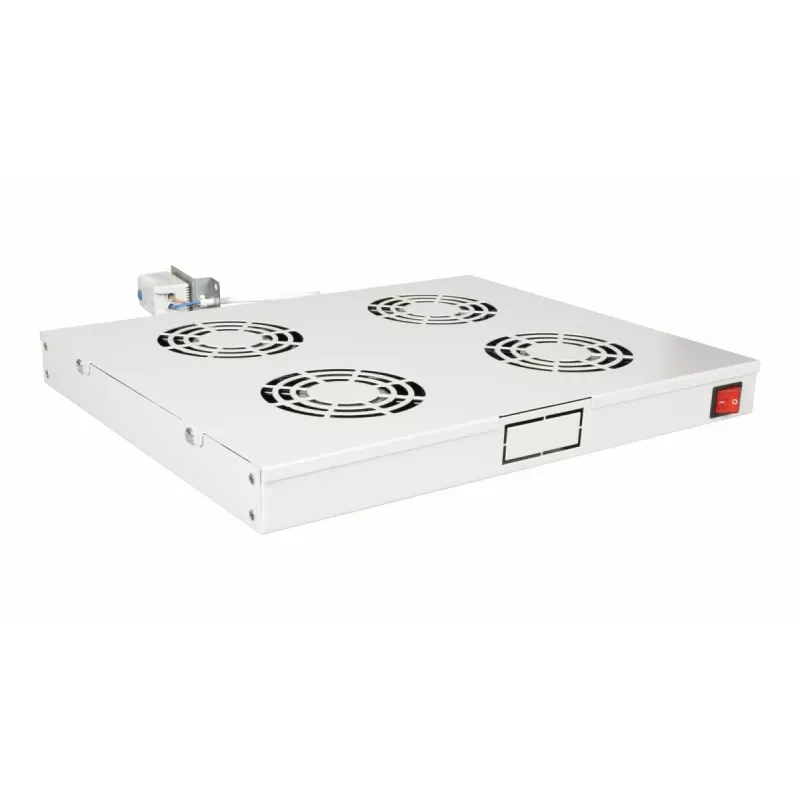

Server rooms and network cabinets often struggle with heat buildup, which can lead to equipment throttling, instability, and premature failure. The EQUIP EZF-4-G is a 19-inch rack-mountable cooling fan panel that addresses this challenge with a compact 1U design and four 120 mm axial fans. It delivers steady, distributed airflow to keep your critical hardware within safe operating temperatures, all while occupying minimal rack space.

Who is it for

This fan panel is ideal for IT administrators, data center technicians, and system integrators who need supplemental cooling in 19" server racks or network enclosures. It suits dense equipment layouts where passive ventilation is insufficient, and it can serve as a replacement or upgrade for existing 1U fan units. Its light grey finish (RAL 7035) blends seamlessly with standard server-room equipment.

Main features

• Fits standard 19" racks, occupying only 1U of vertical space
• Four 120 mm axial fans provide a total airflow of approximately 400 m³/h
• Durable steel housing with a light grey RAL 7035 powder-coated finish
• Operates on 230 V AC (50/60 Hz) with a low current draw of 0.14 A and 20 W total power consumption

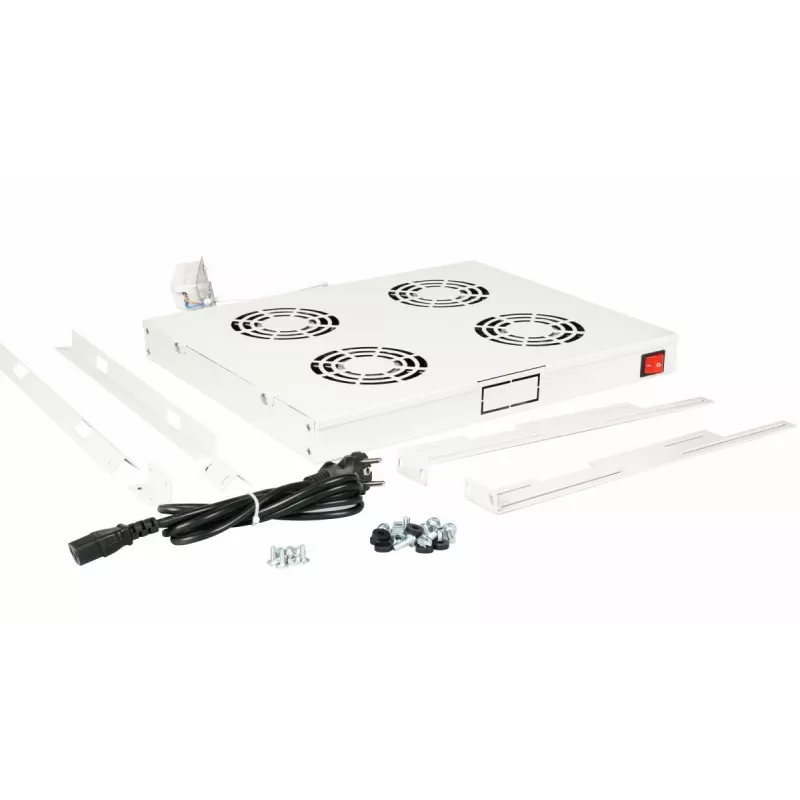

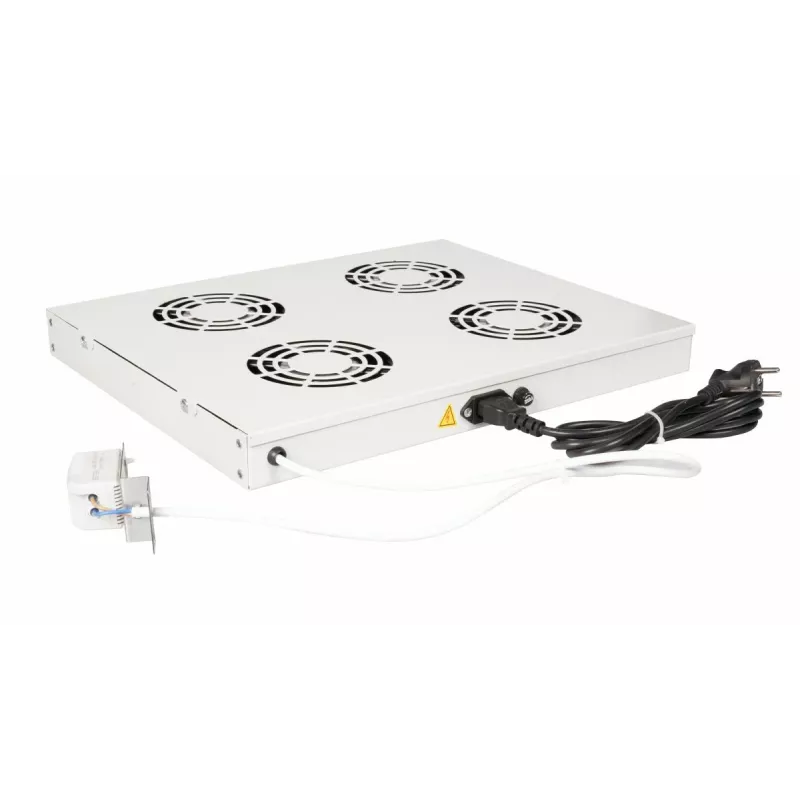

• Includes a 2 m power cable with an IEC 320 C14 connector for easy integration
• Front rack mounting for straightforward installation
• CE and RoHS certified for safety and environmental compliance

Specifications

• Brand: EQUIP
• Model: EZF-4-G
• MPN: EZF-4-G
• EAN: 4015867233313
• Type: Cooling fan panel
• Form factor: 19" 1U rack-mounted
• Number of fans: 4
• Fan diameter: 120 mm
• Fan speed: 2500 RPM
• Bearing type: Sleeve bearing
• Airflow (total): Approx. 400 m³/h
• Noise level: Max. 48 dB
• Input voltage: AC 230 V (240 V max)
• Frequency: 50/60 Hz
• Input current: 0.14 A
• Power consumption: 20 W
• Power connector: IEC 320 C14
• Power cable length: 2 m (included)
• Material: Steel
• Colour: Light grey (RAL 7035)
• Dimensions (W x D): 482 mm x 354 mm
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Certifications: CE, RoHS
• Package dimensions: 510 mm x 390 mm x 60 mm
• Products per pallet: 160

Tips

For optimal cooling, mount the fan panel at the top of the rack to exhaust hot air, or at the bottom to draw in cool air. Ensure the rack has adequate ventilation and that the fan panel's airflow direction matches your cabinet's airflow design. Clean the fans periodically to maintain performance and reduce noise.
