Esquina interior Hager FWK-Plus 60x100 mm pieza de canal cortafuego galvanizada en caliente FWKP601004VERZ

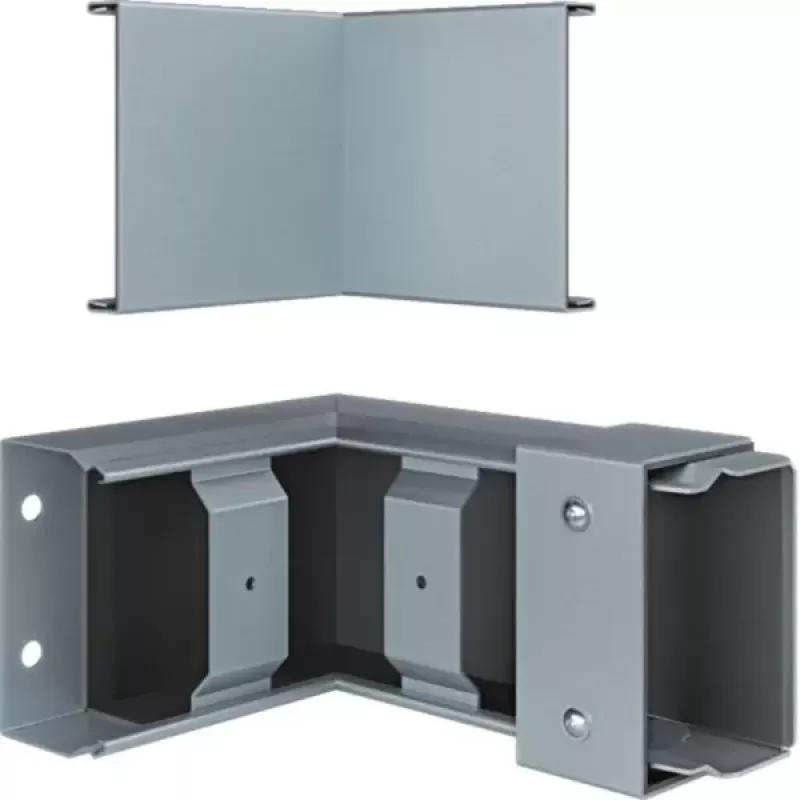

Fire-resistant cable routing requires every bend and turn to maintain the same integrity as the straight duct. The Hager FWK-Plus Inner Corner fitting solves the challenge of changing direction in a fire protection cable duct system without compromising the fire resistance rating. This galvanized steel inner corner is designed for the FWK-Plus series, matching ducts with a width of 100 mm and height of 60 mm. It installs by simple plug-in assembly, ensuring a secure connection that supports the system's E30 to E120 fire resistance classification according to DIN 4102-12.

Who is it for

Electricians and fire protection installers working on commercial or industrial projects where cable support systems must meet strict fire safety standards. This fitting is essential for any installation using Hager FWK-Plus fire protection cable ducts and requiring a 90-degree change of direction.

Main features

• Compatible with Hager FWK-Plus fire protection cable duct system
• For ducts with 60 mm height and 100 mm width
• Galvanized steel construction for corrosion resistance
• Plug-in assembly for quick installation
• Maintains fire resistance class E30 to E120 as part of the system
• Halogen-free material

Specifications

• Type: Inner corner fitting
• System series: FWK-Plus
• Compatible duct width: 100 mm
• Compatible duct height: 60 mm
• Material: Steel
• Surface treatment: Galvanized
• Mounting method: Plug-in assembly
• Application: Fire-resistant cable routing
• Fire protection standard: DIN 4102-12
• Halogen-free: Yes
• Colour: Metallic (galvanized)
• Environment: Indoor

Tips

Ensure the duct ends are cut square and deburred before inserting into the fitting. The plug-in connection should be fully seated to maintain the fire resistance integrity. For complete system compliance, use only Hager FWK-Plus components.
