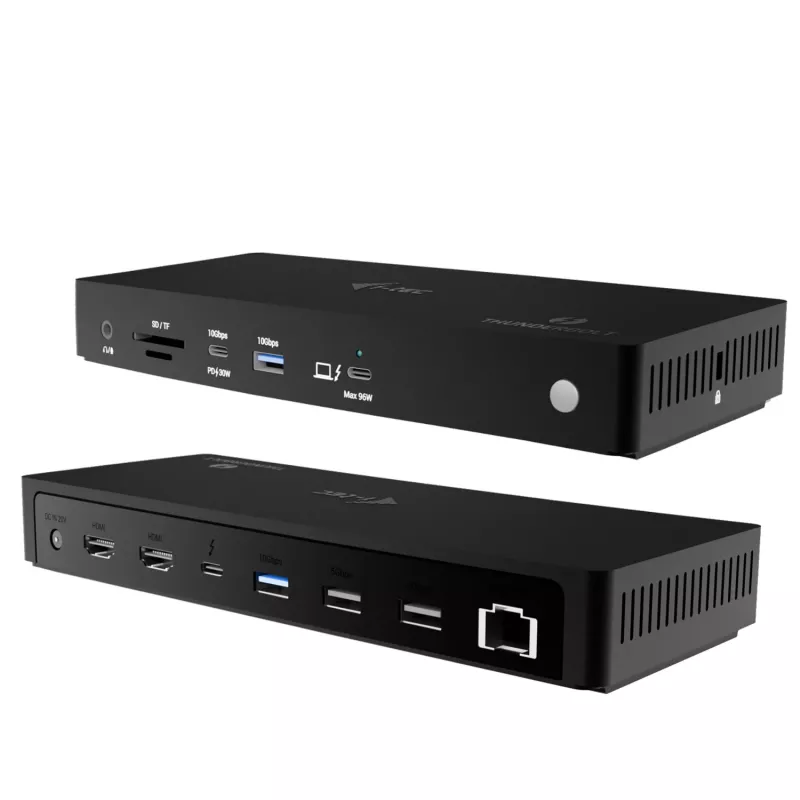

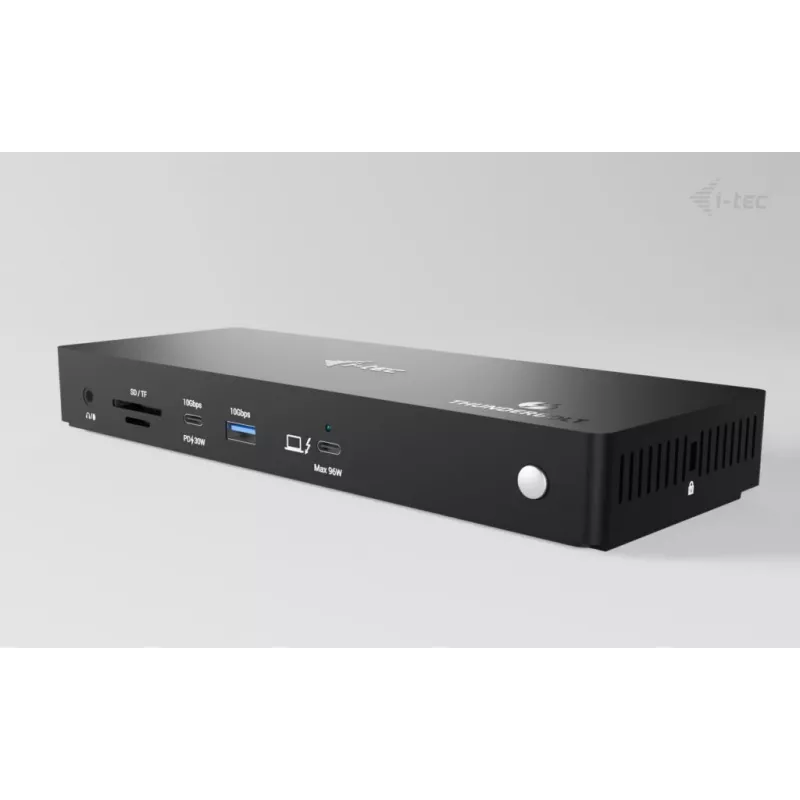

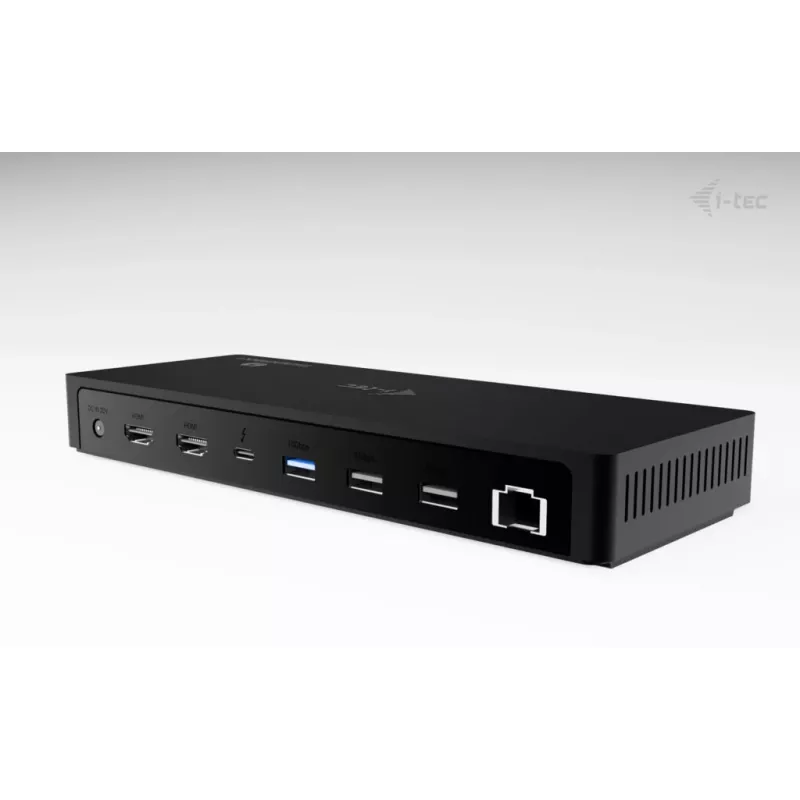

Estación de acoplamiento i-tec Thunderbolt4 Triple Display + Power Delivery 96W

Ultra-high performance docking station with ultra-fast data transfer and support for resolutions up to 8K/60 Hz. The i-tec docking station offers crystal-clear image quality, network connectivity up to 2.5 Gbps and data transfer speeds up to 40 Gbps via the integrated Thunderbolt 4 port. A single included 100 cm certified Thunderbolt 4 cable carries video, data, audio and power so you can connect monitors, external drives, headphones and charge your laptop with up to 96W over one cable.

Advantages

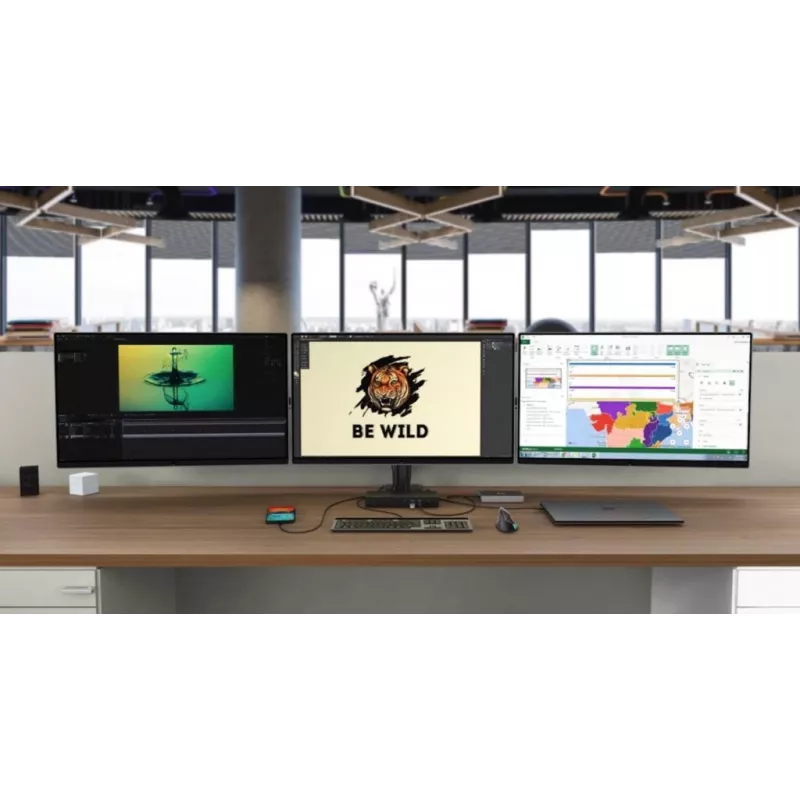

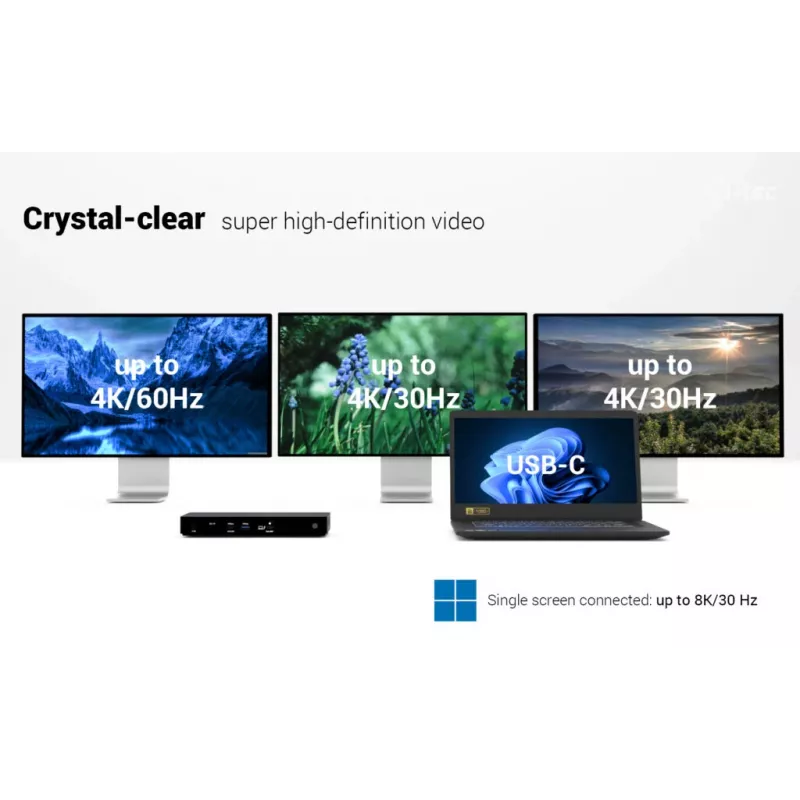

Supports up to three external monitors on compatible Windows systems, including a single 8K/60 Hz display or combinations of 4K displays. Broad host compatibility includes Thunderbolt 3/4/5, USB4 and USB-C (host must support DisplayPort Alt Mode). Multiple high-speed USB ports, SD/microSD card reader, 2.5G Ethernet and a combined 3.5 mm audio jack provide flexible connectivity for peripherals and accessories. The docking station includes a certified Thunderbolt 4 cable and has a dedicated power button for the dock.

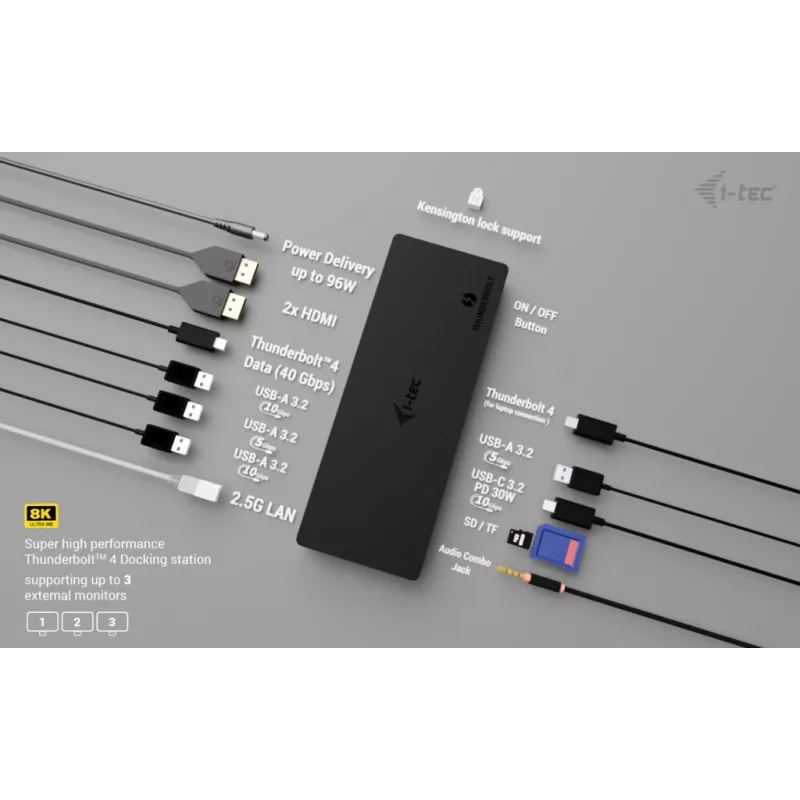

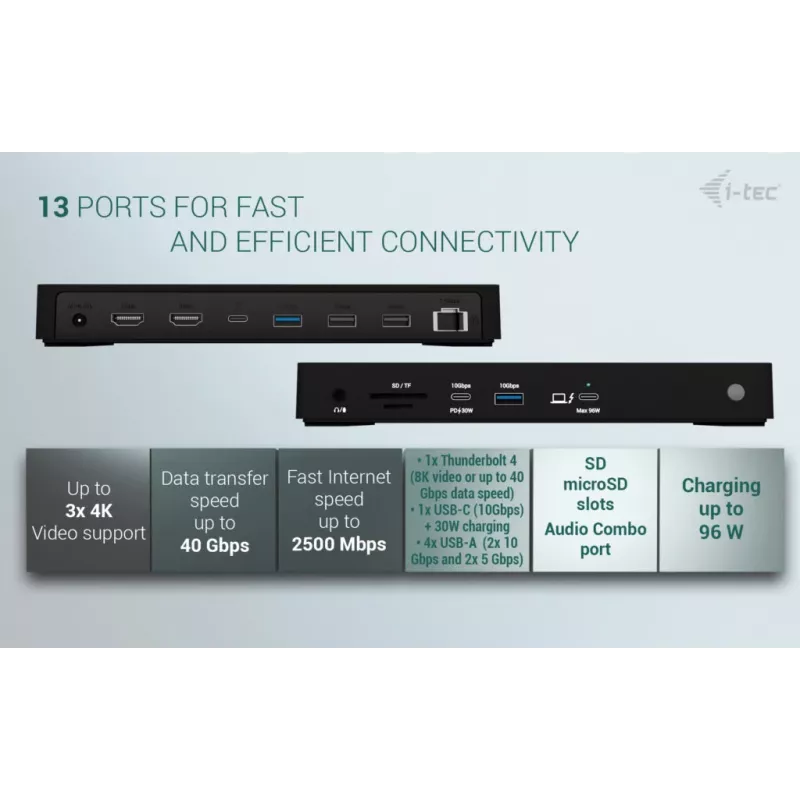

Key specifications

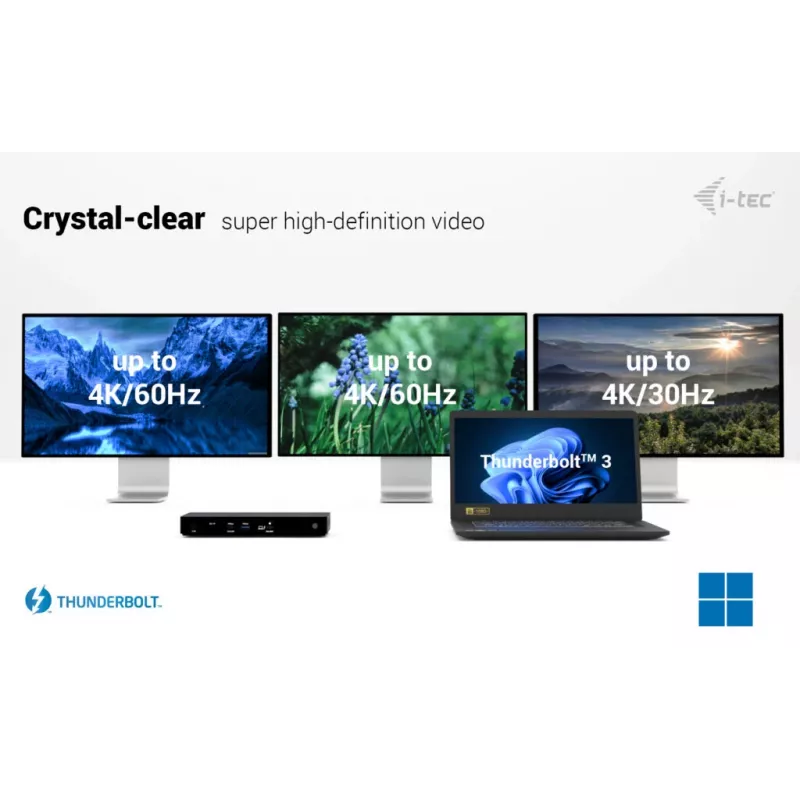

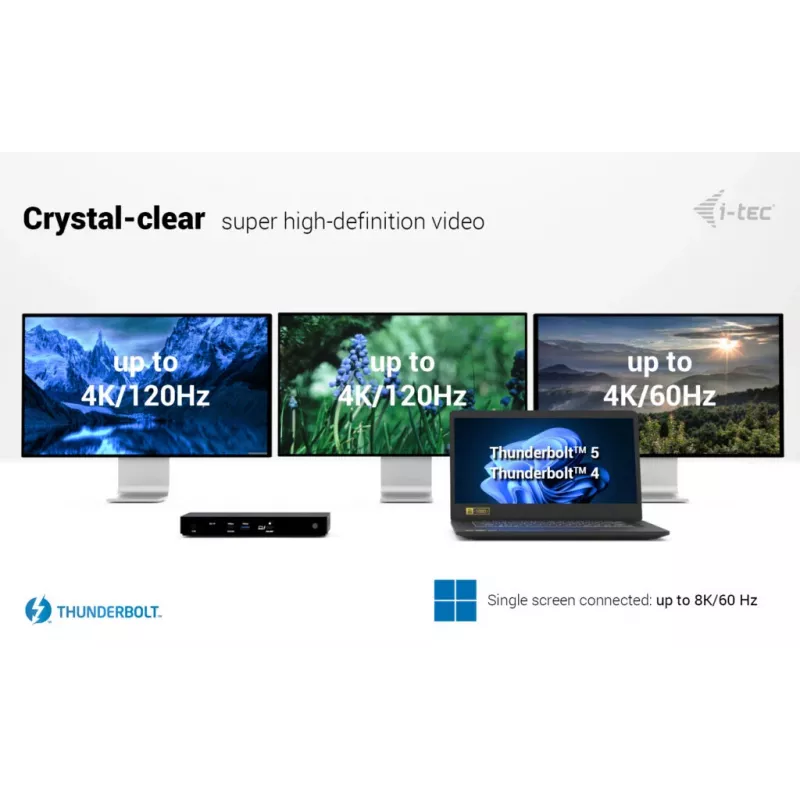

• Supports up to 3 external monitors*: 1x 8K/60 Hz or 2x 4K/120 Hz + 1x 4K/60 Hz (Windows with MST)
• Video outputs: 2x HDMI, 1x Thunderbolt 4 (DP 1.4)

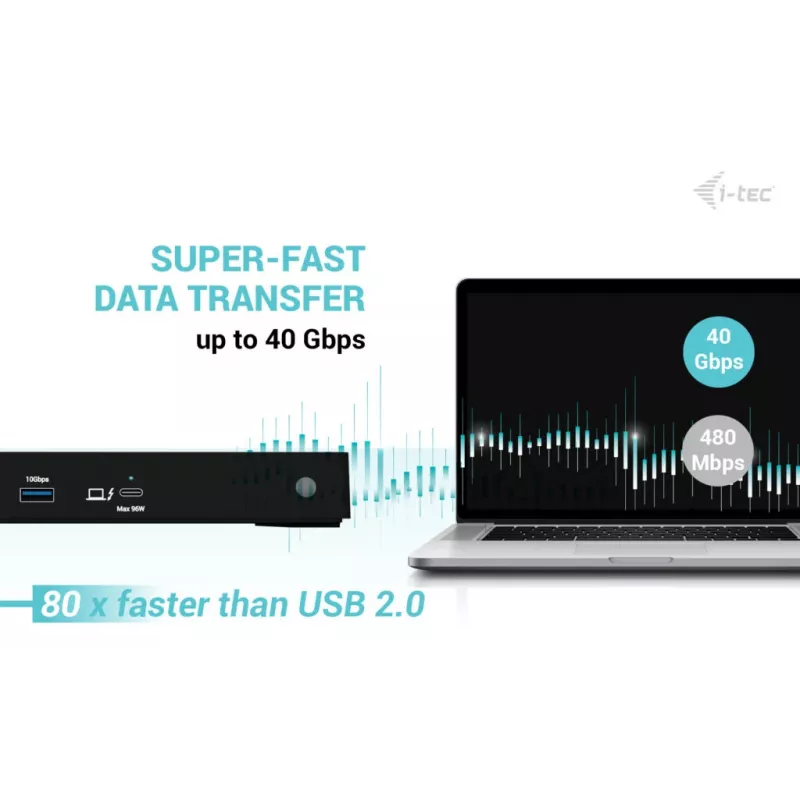

• Thunderbolt 4 port: up to 40 Gbps data transfer and 8K@60 Hz video output
• 1x USB-C (10 Gbps) with 30W Power Delivery
• 2x USB-A (10 Gbps) and 2x USB-A (5 Gbps)
• LAN: 2.5 Gbps (10/100/1000/2500 Mbps)
• Combined 3.5 mm audio/mic port
• 1x SD + 1x microSD card slot

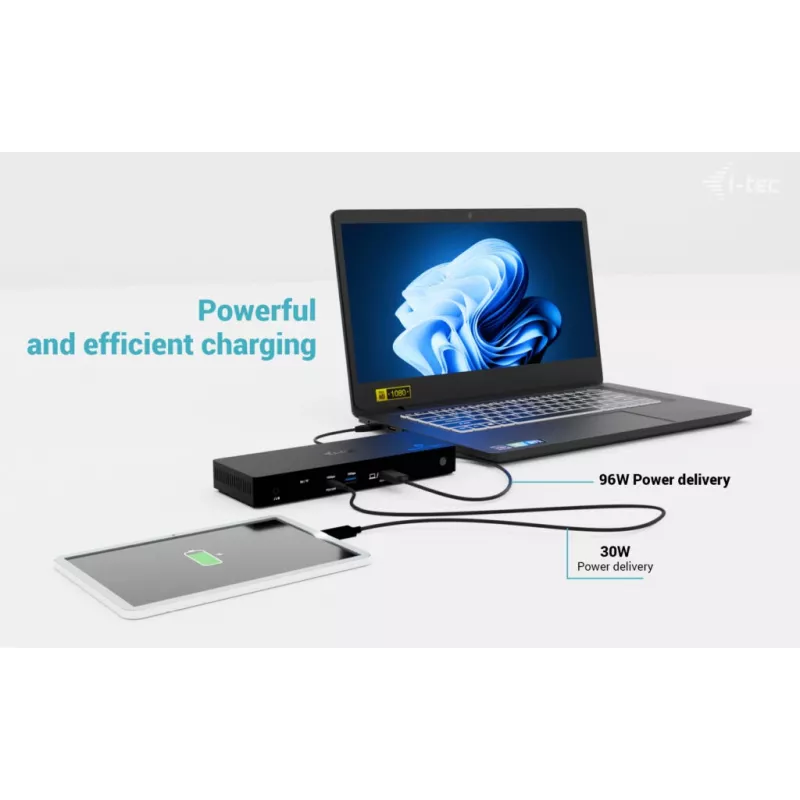

• Laptop charging up to 96W (USB Power Delivery)

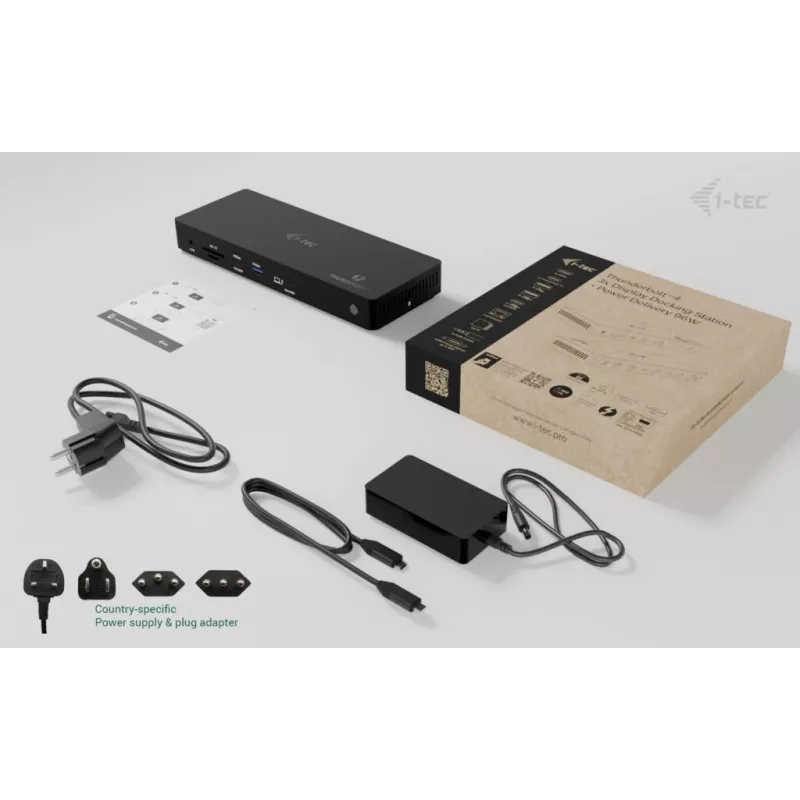

• Includes 100 cm certified Thunderbolt 4 cable
• Docking station power on/off button
• Host interface compatibility: Thunderbolt 3/4/5, USB4, USB-C (requires DisplayPort Alt Mode)

How to use

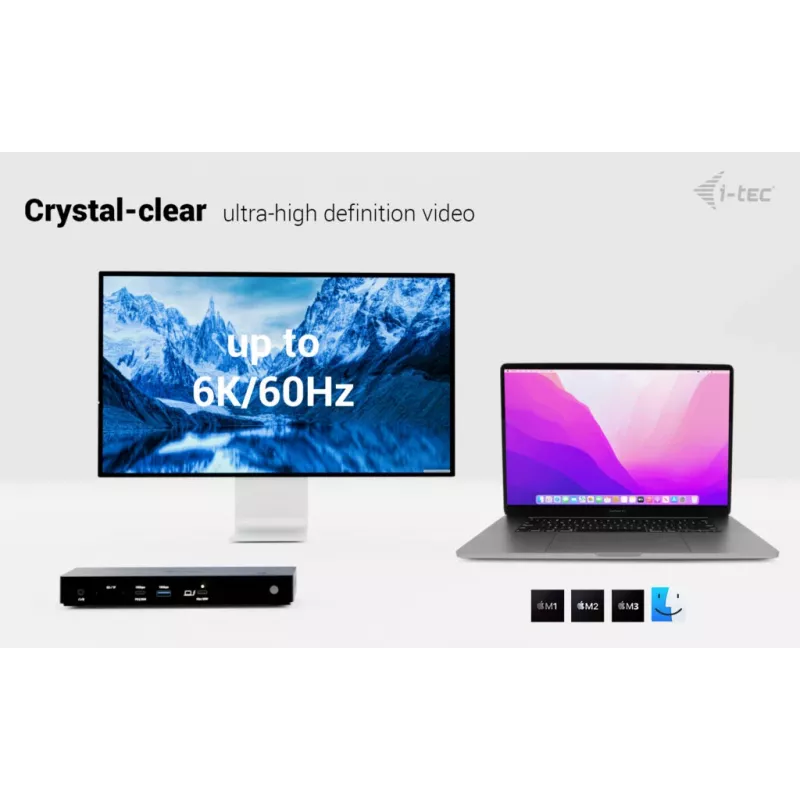

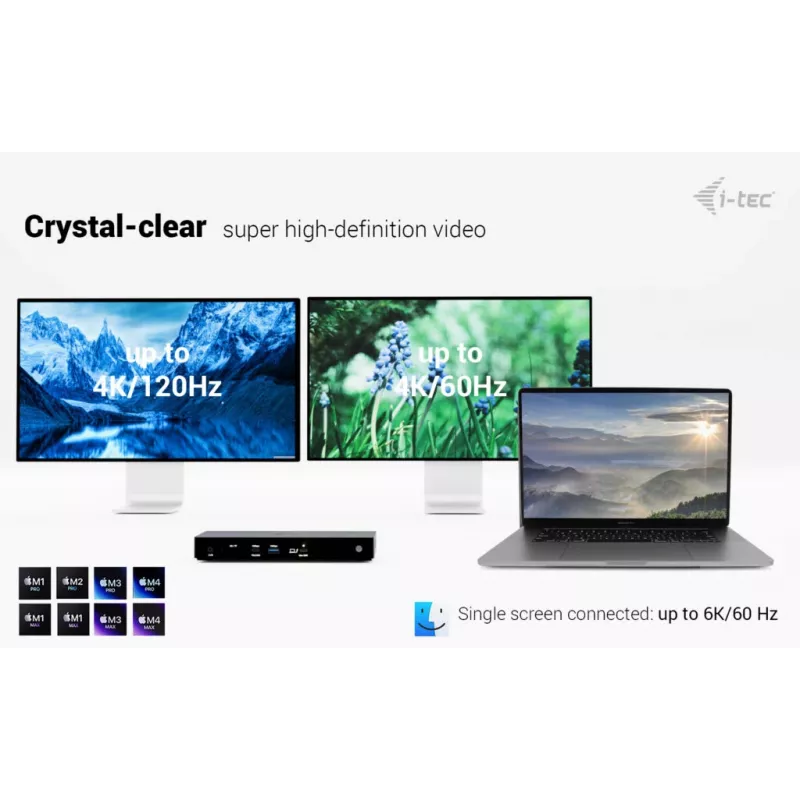

Connect the included Thunderbolt 4 cable from the docking station to the host laptop or tablet. For video output, connect monitors to the HDMI or Thunderbolt 4 ports. If using Windows and a compatible GPU/host, multiple external displays can be driven using MST; macOS may mirror HDMI-connected displays due to OS limitations. Plug USB devices into the USB-A or USB-C ports, insert SD or microSD cards into the card slots, and connect an Ethernet cable for wired network access. The dock supplies up to 96W to charge compatible laptops; check your device power requirements before use. Use the dock’s power button to turn the unit on or off as needed.

Recommendations

For optimal multi-monitor operation, use a host device with Thunderbolt 4 or USB4 that supports DisplayPort Alt Mode and verify the operating system’s multi-stream transport capabilities. Use the supplied certified Thunderbolt 4 cable for full performance and ensure your laptop’s power requirements do not exceed the dock’s 96W delivery.
