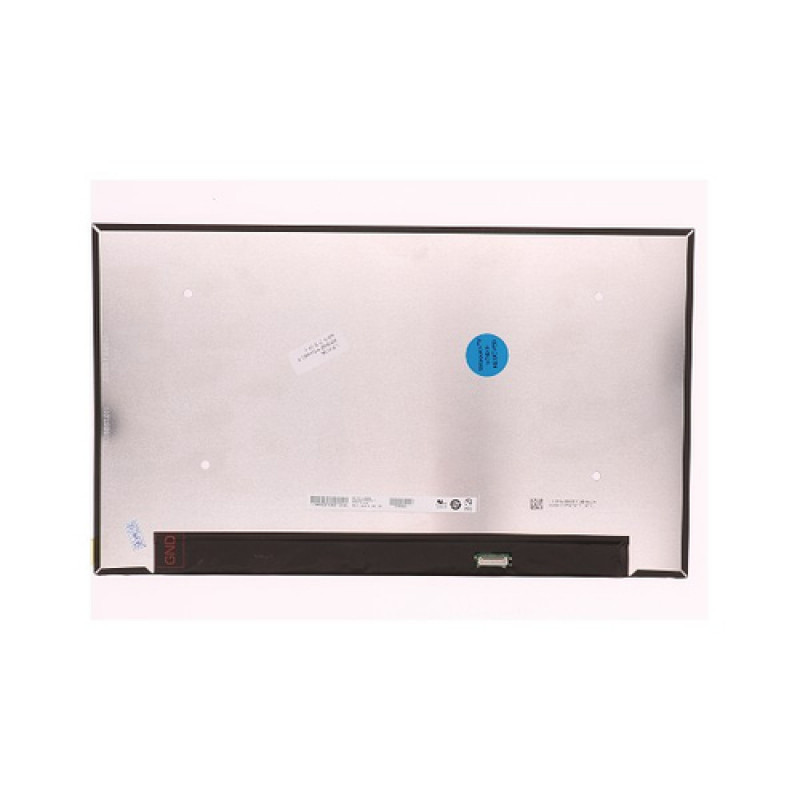

2-power 15,6" 1920x1080 FHD 0,4 mm de paso de píxel (2P-1F7VM)

A cracked or dim laptop display can make even simple tasks frustrating. This 2-Power 15.6-inch Full HD panel restores crisp visuals with a 1920x1080 resolution and a fine 0.4 mm pixel pitch, so text and images look sharp. The matte surface reduces glare, making it easier to work near windows or bright lights.

Who is it for

This screen is ideal for laptop owners, IT technicians, and repair shops that need a reliable replacement for a 15.6-inch FHD display with a 30-pin eDP connector. It fits many universal laptop models, so it is a practical choice for refurbishing or upgrading a notebook.

Main features

• 15.6-inch TFT Active Matrix LCD with LED backlight
• Full HD 1920 x 1080 resolution and 16:9 aspect ratio
• 0.4 mm pixel pitch for detailed image quality
• Matte anti-glare coating to reduce reflections
• 30-pin eDP connector positioned bottom right
• Frameless panel design for easy installation
• 60 Hz refresh rate and 8 ms response time
• Wide compatibility with laptops using 15.6" FHD 30-pin eDP panels

Specifications

• Screen size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Display technology: TFT Active Matrix LCD
• Backlight type: LED
• Aspect ratio: 16:9
• Pixel pitch: 0.4 mm
• Refresh rate: 60 Hz
• Surface treatment: Matte (anti-glare)
• Panel type: TN
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Response time: 8 ms
• Display colors: 262K (6-bit)
• Viewing angle (H/V): 45/45/20/45 degrees (L/R/U/D)
• Data connector: 30-pin eDP (Embedded DisplayPort)
• Connector position: Bottom right
• Frame type: Frameless (panel only)
• Compatibility: Universal for laptops requiring 15.6" FHD 30-pin eDP panels

Tips

Before ordering, confirm your laptop's screen size, resolution, and connector type. A 30-pin eDP connector is common, but some models use 40-pin. Handle the panel by its edges to avoid fingerprints or pressure damage, and test it before final assembly.
