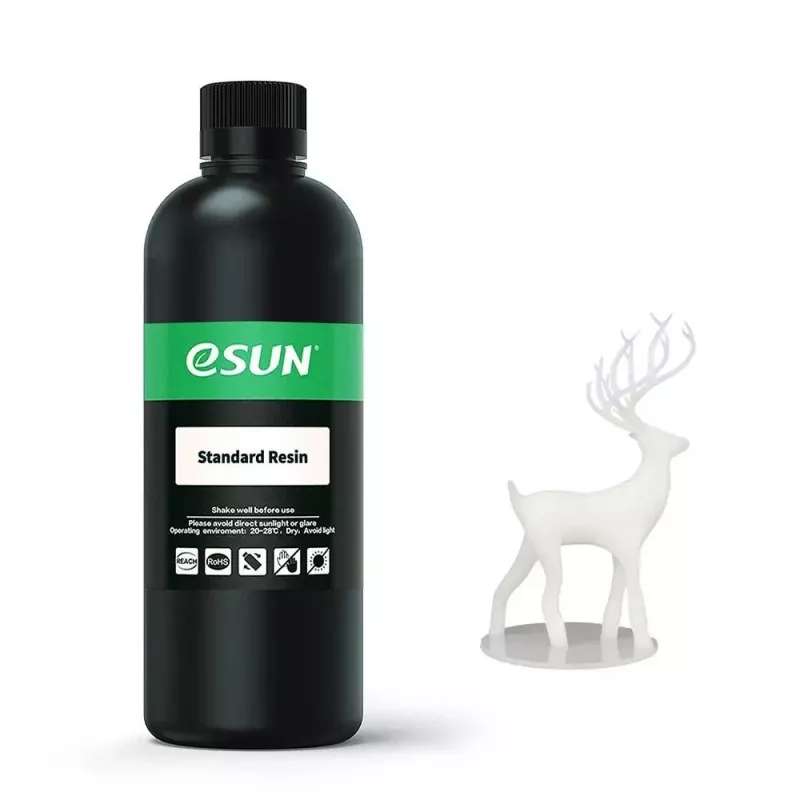

ESUN UV/LCD Standard White 1kg Resina 3D 405nm

The ESUN UV/LCD Standard White 1kg 3D Resin is a high-quality photopolymer resin specifically formulated for LCD and DLP 3D printers operating at 405nm wavelength. This white resin delivers excellent detail resolution and a smooth matte finish, making it ideal for a wide range of applications from prototyping to artistic models.

Advantages

Low odor formula ensures a more pleasant printing environment. The resin offers a balanced combination of strength and flexibility, with a Shore D hardness of 75-80D and tensile strength of 30-50 MPa. Its low volume shrinkage (3.62-4.24%) ensures dimensional accuracy and reduces the risk of warping. The resin is easy to use with recommended exposure times that are compatible with most standard LCD/DLP printers.

Suitable for

• 3D printing enthusiasts and professionals
• Prototyping and product development
• Miniatures, figurines, and tabletop gaming pieces
• Jewelry design and casting patterns
• Educational and research projects

Key specifications

• Resin Type: UV/LCD Standard Resin
• Curing Wavelength: 405nm
• Color: White
• Net Weight: 1kg
• Material Composition: Urethane Acrylate
• Density: 1.10 g/cm³
• Viscosity: 150-250 mPa·s (at 25°C)
• Surface Hardness (Shore D): 75-80D
• Tensile Strength: 30-50 MPa
• Elongation at Break: 5-10%
• Flexural Strength: 40-60 MPa
• Flexural Modulus: 1.5-2.0 GPa
• Impact Strength (Izod Notched): 15-25 J/m
• Volume Shrinkage: 3.62-4.24%
• Recommended Bottom Exposure Time: 20-60s (printer dependent)
• Recommended Normal Exposure Time: 5-15s (printer dependent)
• Compatibility: LCD/DLP 3D Printers
• Storage Temperature: 15-35°C
• Shelf Life: 12 Months
• Odor: Low

Recommendations

For best results, store the resin in a cool, dark place between 15-35°C. Shake well before use. Ensure proper ventilation during printing. Post-cure under UV light for optimal mechanical properties. Always follow your printer manufacturer's guidelines for exposure settings.
