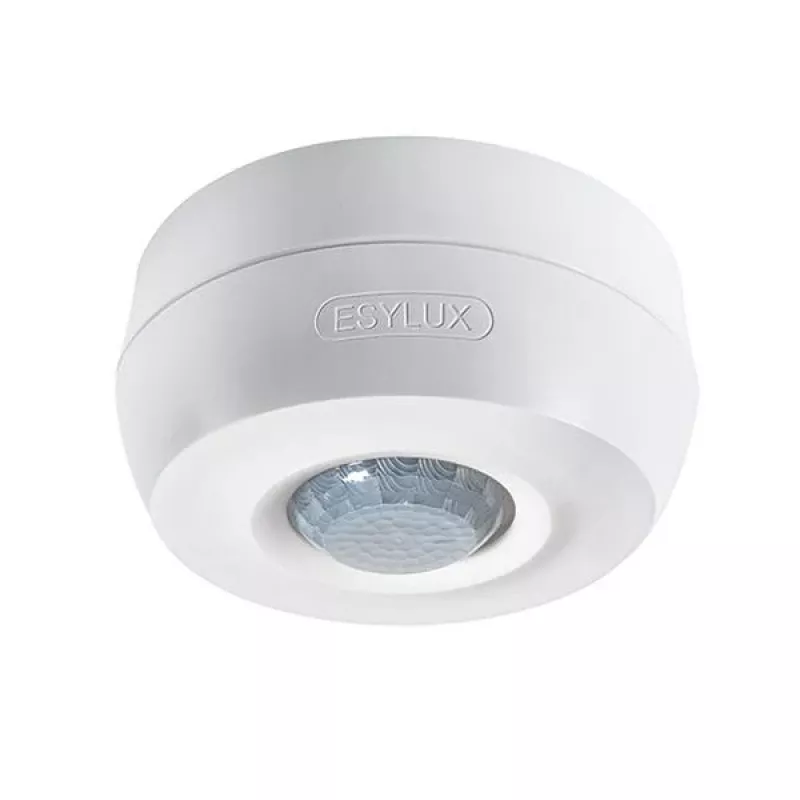

ESYLUX ESY MD 360/8 BASIC IP54 detector de movimiento de techo, 360° PIR, 8 m de alcance, blanco

With a 360° detection angle and an 8-metre range, the ESYLUX ESY MD 360/8 BASIC IP54 motion detector delivers reliable presence detection for ceiling-mounted lighting control. Its passive infrared sensor responds to moving heat sources, making it ideal for hallways, stairwells, and utility areas.

Overview

The MD 360/8 BASIC IP54 is a compact ceiling-mounted motion detector designed for automatic switching of lighting loads. It operates on 230 V AC and can directly switch up to 2300 W of resistive load (10 A) or 1150 VA inductive (5 A). The adjustable light threshold (5–2000 lux) and time delay (10 seconds to 60 minutes) allow customisation for different environments. The IP54 rating ensures protection against dust and splashing water, suitable for indoor and sheltered outdoor use.

What stands out

• Full 360° coverage with 8 m diameter at 2.5 m mounting height
• High switching capacity: 2300 W resistive, 1150 VA inductive
• Wide lux and time adjustments for versatile applications
• Robust IP54 housing in UV-stabilised polycarbonate, white (RAL 9010)
• Low standby consumption under 0.5 W

Technical details

• Detection technology: Passive Infrared (PIR)
• Mounting type: Ceiling (surface or flush)
• Recommended mounting height: 2.0–3.0 m
• Operating voltage: 230 V AC, 50/60 Hz
• Light sensor range: 5–2000 lux (adjustable)
• Time delay: 10 sec – 60 min (adjustable)
• Max. inrush current: 165 A / 20 ms
• Connection: Screw terminals
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate

Our verdict

An excellent choice for automatic lighting control in areas requiring robust, wide-area detection with flexible settings.
