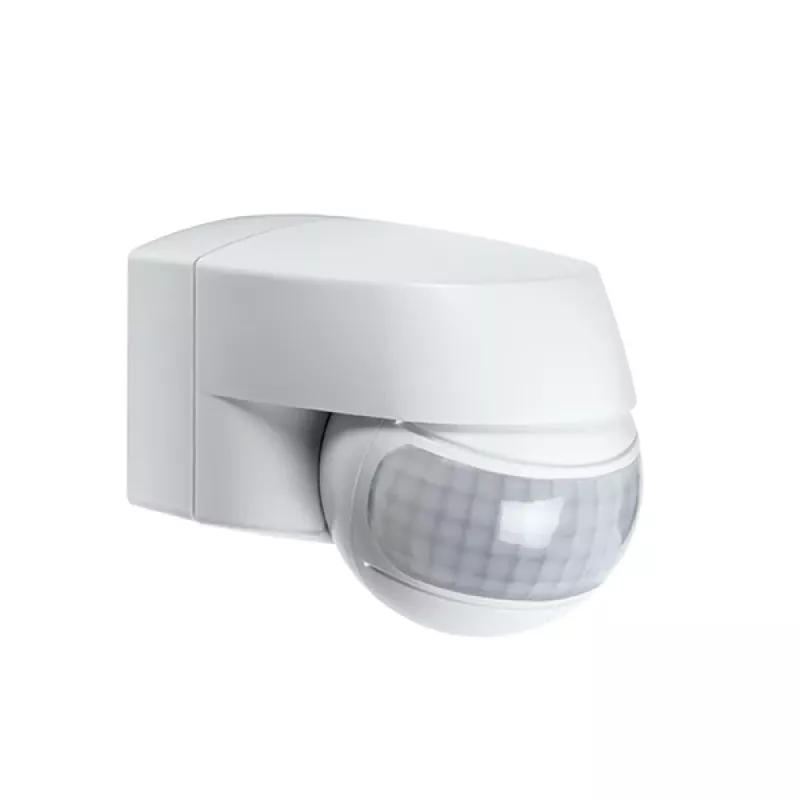

ESYLUX MD 120 detector de movimiento 12 m montaje en pared blanco IP44 2000 lux 2,5 m

The ESYLUX MD 120 is a high-quality passive infrared (PIR) motion detector designed for reliable presence and movement detection in indoor and outdoor areas. With a 120° detection angle and a radial range of 12 m (tangential 20 m), it offers comprehensive coverage for corridors, entrances, and security zones. The detector is wall-mounted and features a sleek white housing with IP44 protection, making it suitable for damp environments. Its adjustable light threshold (5–2000 lux) and time setting (10 s–30 min) provide flexible automation for lighting control.

Advantages

Energy-efficient operation with <0.5 W standby power consumption; robust UV-stabilised polycarbonate housing ensures long-lasting performance; easy installation with flush-mount capability and 2.5 m recommended height; reliable switching up to 2300 W resistive load.

Suitable for

• Indoor and outdoor lighting control in hallways, staircases, and building entrances
• Security lighting automation in residential and commercial properties
• Energy-saving applications by activating lights only when presence is detected

Key specifications

• Product Type: Motion Detector (PIR)
• Mounting: Wall-mounted, flush-mount
• Detection Angle: 120°
• Detection Range: 12 m radial, 20 m tangential
• Recommended Mounting Height: 2.5 m
• IP Rating: IP44
• Colour: White
• Light Threshold: 5–2000 lux
• Time Setting: 10 s–30 min
• Operating Voltage: 230 V AC, 50 Hz
• Switching Capacity: 2300 W resistive, 1150 VA inductive
• Power Consumption: <0.5 W
• Operating Temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Installation Depth: approx. 35 mm

Recommendations

For optimal performance, mount at 2.5 m height and avoid obstructions in the detection field. Suitable for use with incandescent, halogen, and LED lighting loads within the specified switching capacity.
