ESYLUX MD 200 detector de movimiento por infrarrojos pasivo, 12 m de alcance, montaje en pared, negro, IP44, 2000 lux, 2,5 m

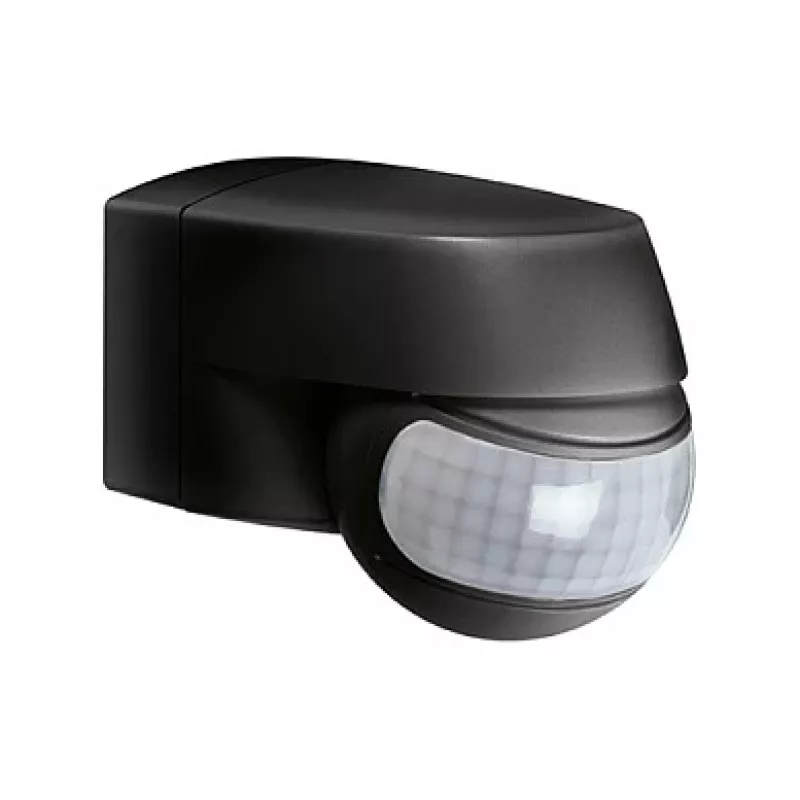

The ESYLUX MD 200 is a high-quality passive infrared (PIR) motion detector designed for reliable presence detection in indoor and outdoor areas. With a detection range of 12 meters and a wide 200° detection angle, it ensures comprehensive coverage for residential and commercial applications. The device is wall-mounted and features a sleek black housing made from UV-stabilised polycarbonate, offering durability and weather resistance with an IP44 rating.

Advantages

Energy-efficient standby consumption below 0.5 W; adjustable light sensor from 5 to 2000 lux; time delay settings from 10 seconds to 30 minutes; switching capacity up to 2300 W for resistive loads; easy surface mounting at recommended height of 2.5 m.

Suitable for

• Automatic lighting control in corridors, stairwells, and entrance areas
• Outdoor lighting management for gardens, terraces, and building entrances
• Energy-saving presence detection in offices, warehouses, and commercial spaces

Key specifications

• Detection technology: Passive Infrared (PIR)
• Mounting type: Wall-mounted, surface-mounted
• Colour: Black
• Detection angle: 200°
• Detection range (radial): 12 m
• Recommended mounting height: 2.5 m
• Ingress protection (IP) code: IP44
• Light sensor range: 5 – 2000 lux
• Time delay setting: 10 s – 30 min
• Switching capacity (resistive load): 2300 W
• Switching capacity (inductive load): 1150 VA (cos φ = 0.5)
• Operating voltage: 230 V AC, 50 Hz
• Power consumption (standby): < 0.5 W
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Protection class: II
• Output type: Switching contact (relay)
• Number of channels: 1 (Light)
• Minimum load: 100 mA
• Halogen/incandescent lamp load: 2300 W

Recommendations

For optimal performance, mount the detector at the recommended height of 2.5 m and avoid obstructions in the detection field. The adjustable time delay and light sensor allow customisation to suit specific application needs. Suitable for use with incandescent, halogen, and LED lighting loads within the specified switching capacity.
