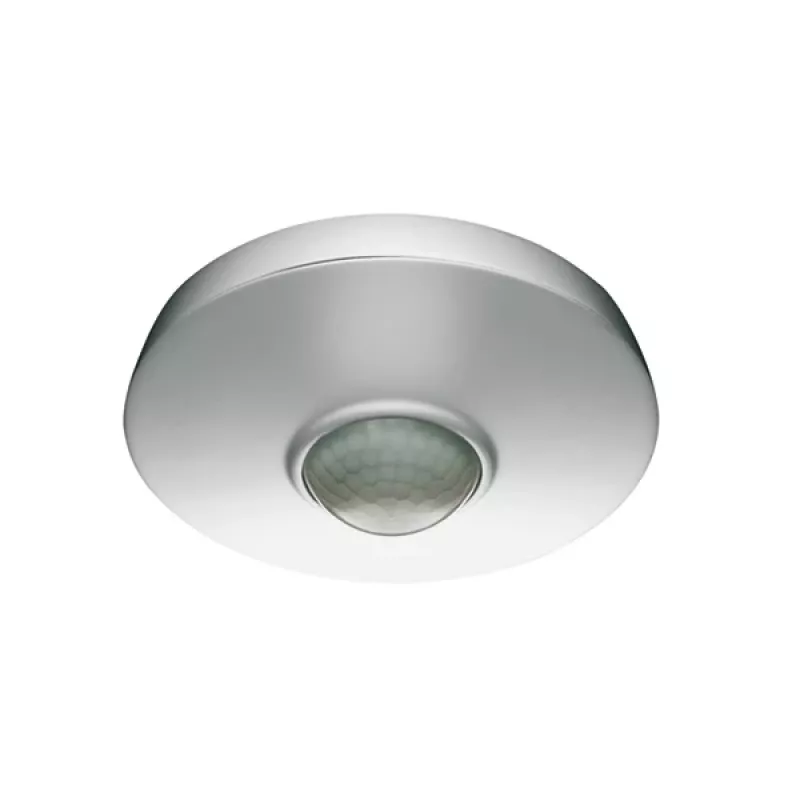

ESYLUX MD 360/8 detector de movimiento de techo 8 m blanco IP20 2000 lux 3 m

The ESYLUX MD 360/8 is a high-quality passive infrared (PIR) ceiling motion detector designed for reliable presence detection in indoor environments. With a 360° detection angle and an 8-meter diameter range at 3m mounting height, it is ideal for offices, corridors, and commercial spaces. The detector features an adjustable light sensor (10-2000 lux) and time delay (10s-60min), enabling energy-efficient lighting control.

Advantages

Energy-saving automatic lighting control with adjustable brightness threshold and time delay. Easy surface mounting on ceilings with 3-wire connection. Robust UV-stabilised polycarbonate housing ensures long-lasting performance.

Suitable for

• Indoor ceiling installation
• Offices, meeting rooms, and corridors
• Warehouses and storage areas
• Commercial and industrial buildings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m at 3 m mounting height
• Mounting type: Ceiling, surface-mounted
• Recommended mounting height: 2.5 - 3.5 m
• Colour: White
• IP rating: IP20
• Light sensor range: 10 - 2000 Lux
• Time delay setting: 10 seconds - 60 minutes
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (incandescent): 2300 W
• Max. switching capacity (LED): 300 W
• Power consumption (standby): approx. 0.5 W
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Application area: Indoor
• Number of channels: 1 (light switching)
• Installation type: 3-wire connection

Recommendations

For optimal performance, mount at the recommended height of 2.5-3.5 m and ensure the sensor has a clear view of the area. Suitable for use with LED and incandescent loads.
