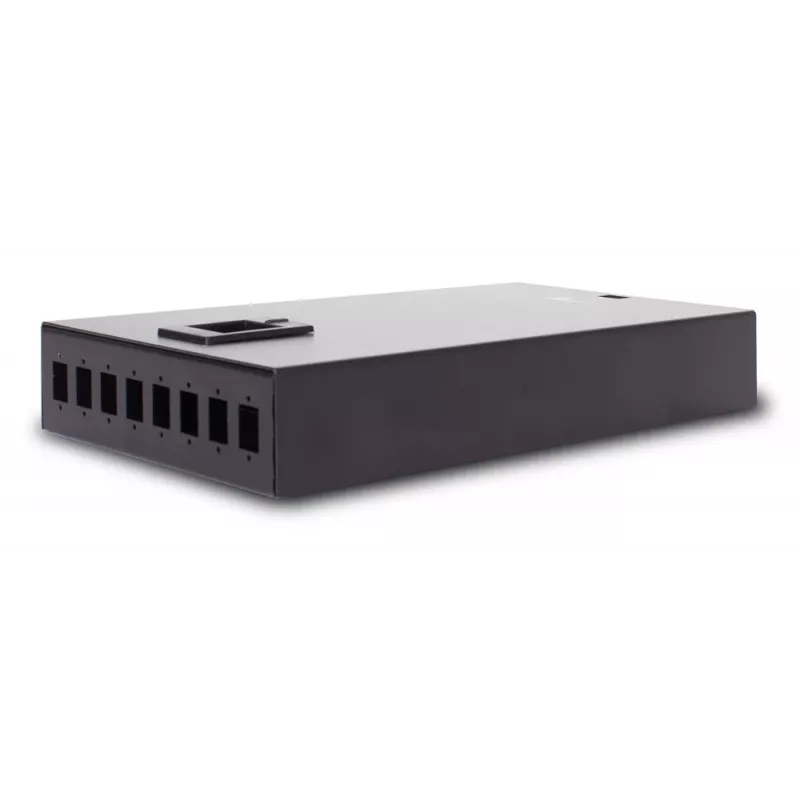

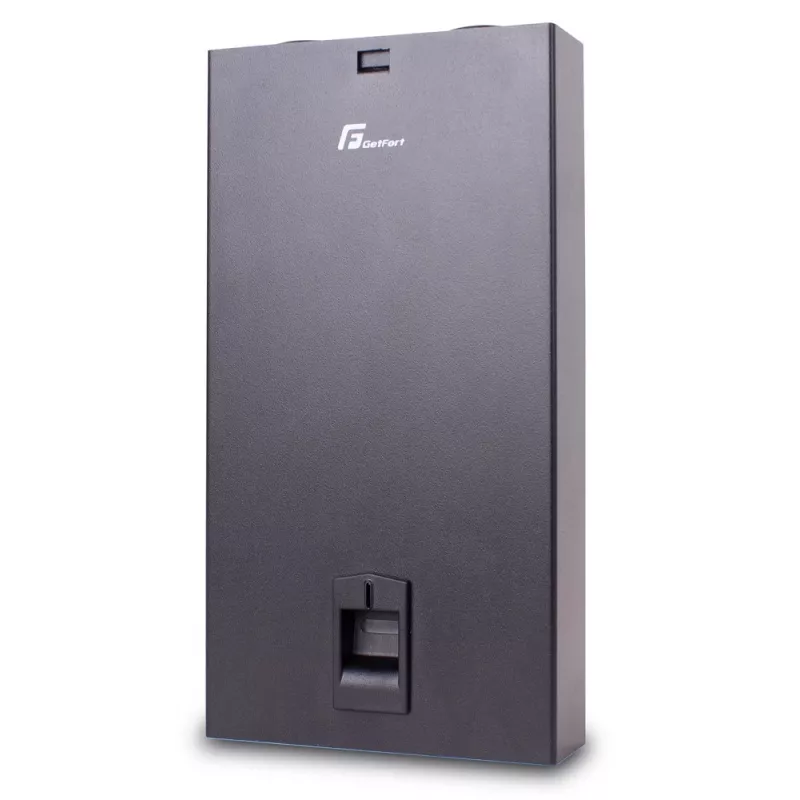

GETFORT GF-FO-PSN2-8SX Panel de parcheo de fibra óptica, 8xSC/PC simplex, montaje en pared, gris

The GETFORT GF-FO-PSN2-8SX is a high-quality fiber optic patch panel designed for efficient cable management and reliable fiber termination in indoor environments. This wall-mountable panel features 8 SC/PC simplex ports, making it ideal for small to medium-sized fiber optic networks. Its robust powder-coated steel housing ensures durability and long-lasting performance.

Advantages

This patch panel offers easy installation and maintenance, with a compact design that saves space. The included splice tray and accessories simplify fiber splicing and organization. It supports both single-mode and multi-mode fibers, providing flexibility for various network requirements.

Suitable for

• Fiber optic termination in telecommunications rooms
• FTTH (Fiber to the Home) applications
• Data center patching and distribution
• Small to medium enterprise networks

Key specifications

• Product Type: Fiber Optic Patch Panel
• Mounting Type: Wall-mount
• Number of Ports: 8
• Connector Type: SC/PC Simplex
• Housing Material: Powder-coated Steel
• Color: Grey (RAL 7035)
• Max Splice Capacity: 12
• Max Pigtail Capacity: 8

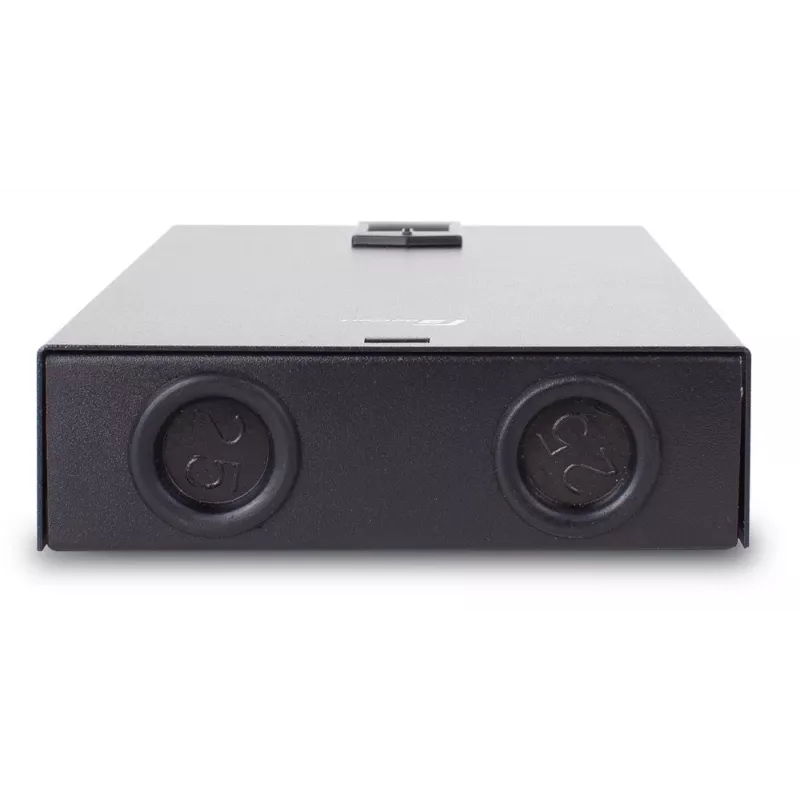

• Cable Entry Diameter: 5-12 mm
• IP Rating: IP20
• Application Environment: Indoor
• Operating Temperature: -20°C to +60°C
• Relative Humidity: 5% to 95% (non-condensing)
• Fiber Compatibility: Single-mode and Multi-mode

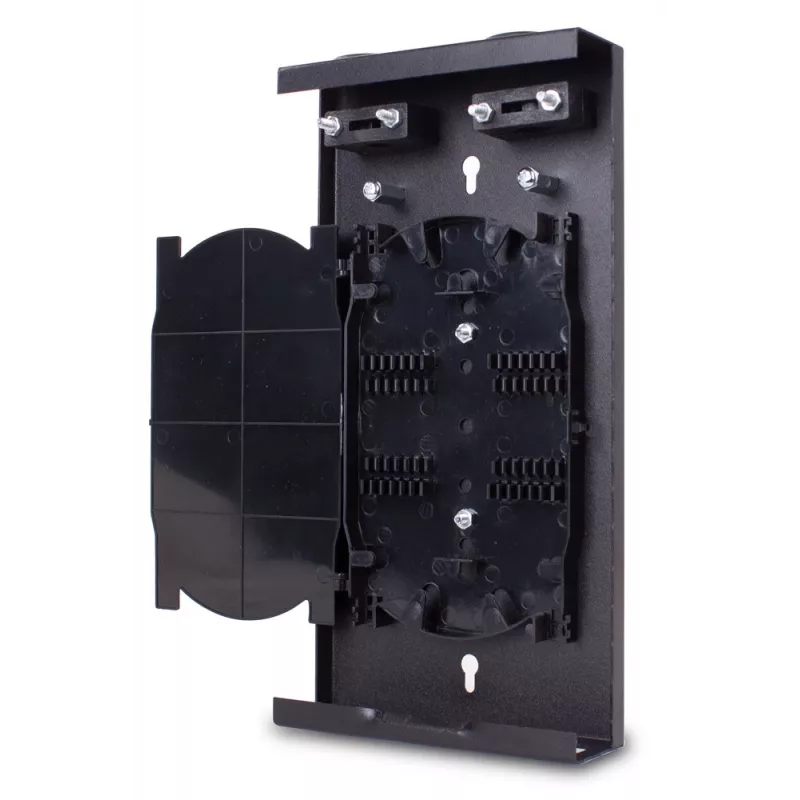

• Number of Splice Trays: 1
• Splice Tray Capacity: 12 splices
• Included Accessories: Splice protectors, Cable ties, Mounting screws

Recommendations

For optimal performance, use with high-quality SC/PC connectors and ensure proper cable strain relief. This patch panel is suitable for indoor use only and should be installed in a clean, dry environment.
